• Model NO.：FLC1390
• Cooling System：Water Cooling
• Technical Class：Continuous Wave Laser
• Applicable Material：Nonmetal
• Structure Type：Gantry Type
• Laser Classification：Gaseous Laser
• Laser Technology：Laser Control Fault Cutting
• Working Area：1300*900mm
• Laser Power：100W
• Delivery Time：in 10 Days
• Miq：1 PC
• Transport Package：Plywood
• Specification：1390
• Trademark：FLYING
• Origin：China
• HS Code：8456110090
• Production Capacity：100PCS,Month
• Package size per unit product：195.00cm * 148.00cm * 130.00cm
• Gross weight per unit product：350.000kg

Basic Info.

Model NO. FLC1390 Cooling System Water Cooling Technical Class Continuous Wave Laser Applicable Material Nonmetal Structure Type Gantry Type Laser Classification Gaseous Laser Laser Technology Laser Control Fault Cutting Working Area 1300*900mm Laser Power 100W Delivery Time in 10 Days Miq 1 PC Transport Package Plywood Specification 1390 Trademark FLYING Origin China HS Code 8456110090 Production Capacity 100PCS/Month

Packaging & Delivery

Package size per unit product 195.00cm * 148.00cm * 130.00cm Gross weight per unit product 350.000kg

Product Description

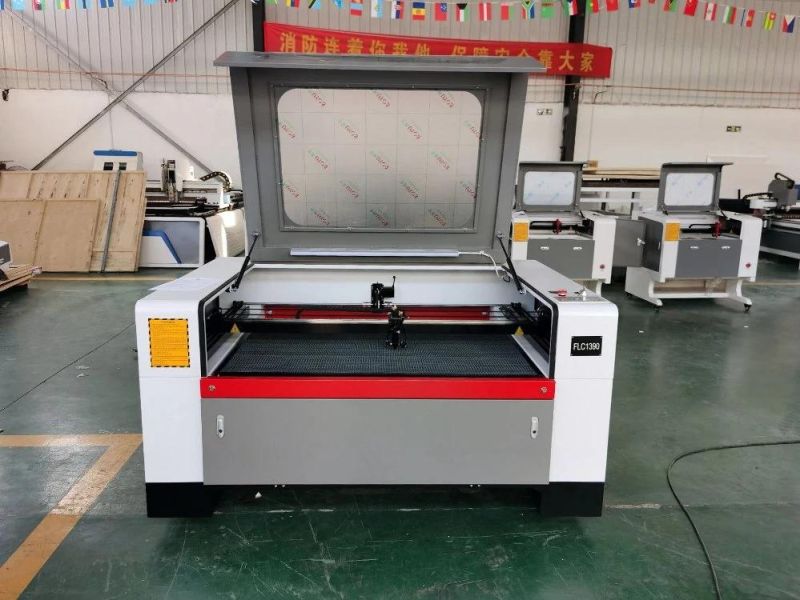

CNC Laser engraving & cutting machine FLC1390


Features:

    Taking CO2 laser tube as thermal source, this laser cutter is developed in combination with of electronic technology, mechanical technology and computer. With front and black openings, this humanity design can let operators put long object through the machine, is more convenient for some long sheet working.   It has high precision and fast speed and it is the ideal choice for many processing industries.

Specifications:

Model	FLC1390
Laser-type	10.6um CO2 glass laser tube w/ water-cooling
Laser power	60w-150w
Working area	1300*900mm
Max Engraving speed:	0-64, 000mm/min
Max cutting speed	0-30, 000mm/min
Laser output control	1-100% software setting
Location precision	Less than 0.01mm
Highest scanning precision	2500DPI
Operating temperature	0 - 45
Operating humidity	5- 95% non-condensing
Minimum shaping character	English 1.0 x 1.0mm
Graphic format supported	HPGL, JPEG, BMP, PLT, DST, DXF, and AI ...
Driving system	Stepper(Optional: Servo)
Cooling mode	Water-cooling and protection system
Auxiliary equipments	Exhaust-fans, air-exhaust pipe, air pump, water pump
Controller	DSP
Compatible Software	CorelDraw, AutoCAD, Photoshop, TAJIMA
Slope Engraving	Can be easily designed within the "Grade Engrave" function.
Color separation	Uses color property to set function, speed, and laser power



Extra Features:
1) Materials can extend through the front and rear doors to allow for a larger work product.
2) Following LED Work light to help see products during laser processing.
3) Red-Dot pointer to help you see the expected laser beam position.
4) AutoFocus touch sensor to easily set the right height for best engraving and cutting.
5) Parts tray for removing small parts or scrap from under the workbed.
6) Fully enclosed laser case yields a class I (user friendly) laser product.
7) Support WIFI, you don't must depend on the usb cable, transferring data is as convenient as talking WhatsApp on a cell phone.

Applicable Industries:
Suitable for industries such as billboards, artistic gifts, crystal ornaments, paper cut engraving, bamboo embossment, printing, garments and leather industries, embroidery, interior decoration, frame fabrication and etc.

Applicable Materials:
Double color boards, acrylic, glass, wood planks, bamboo, rubber, plastic, garments, paper, leather, marble, granite, tiles and etc..

Pack and Delivery:

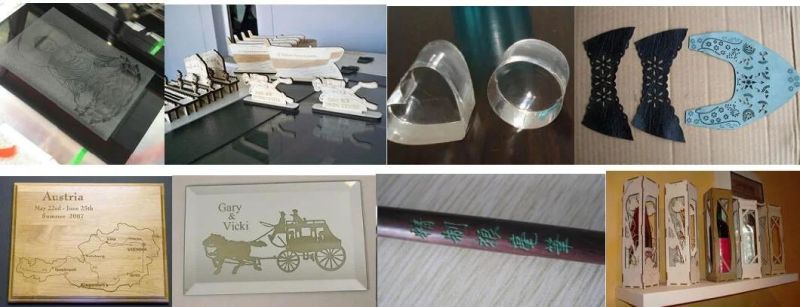

Samples Show:
