• Model NO.：LK-LWF
• Power Density：Deep Fusion Welding
• Laser Classification：Semiconductor Laser
• Type：Optical Fiber Transmission Laser Welding Machine
• Power：200W 300W 400W 500W 600W
• Laser Wavelength：1064nm
• Welding Depth：<=5mm
• Power Supply：380V(+)10%
• Machine Power：10kw
• Transport Package：Wood Case
• Specification：CE, FDA
• Trademark：LK laser
• Origin：Guangdong, China
• HS Code：8515809010
• Production Capacity：100set,Month
• Package size per unit product：150.00cm * 98.00cm * 168.00cm
• Gross weight per unit product：450.000kg

Basic Info.

Model NO. LK-LWF Power Density Deep Fusion Welding Laser Classification Semiconductor Laser Type Optical Fiber Transmission Laser Welding Machine Power 200W 300W 400W 500W 600W Laser Wavelength 1064nm Welding Depth <=5mm Power Supply 380V(+)10% Machine Power 10kw Transport Package Wood Case Specification CE, FDA Trademark LK laser Origin Guangdong, China HS Code 8515809010 Production Capacity 100set/Month

Packaging & Delivery

Package size per unit product 150.00cm * 98.00cm * 168.00cm Gross weight per unit product 450.000kg

Product Description

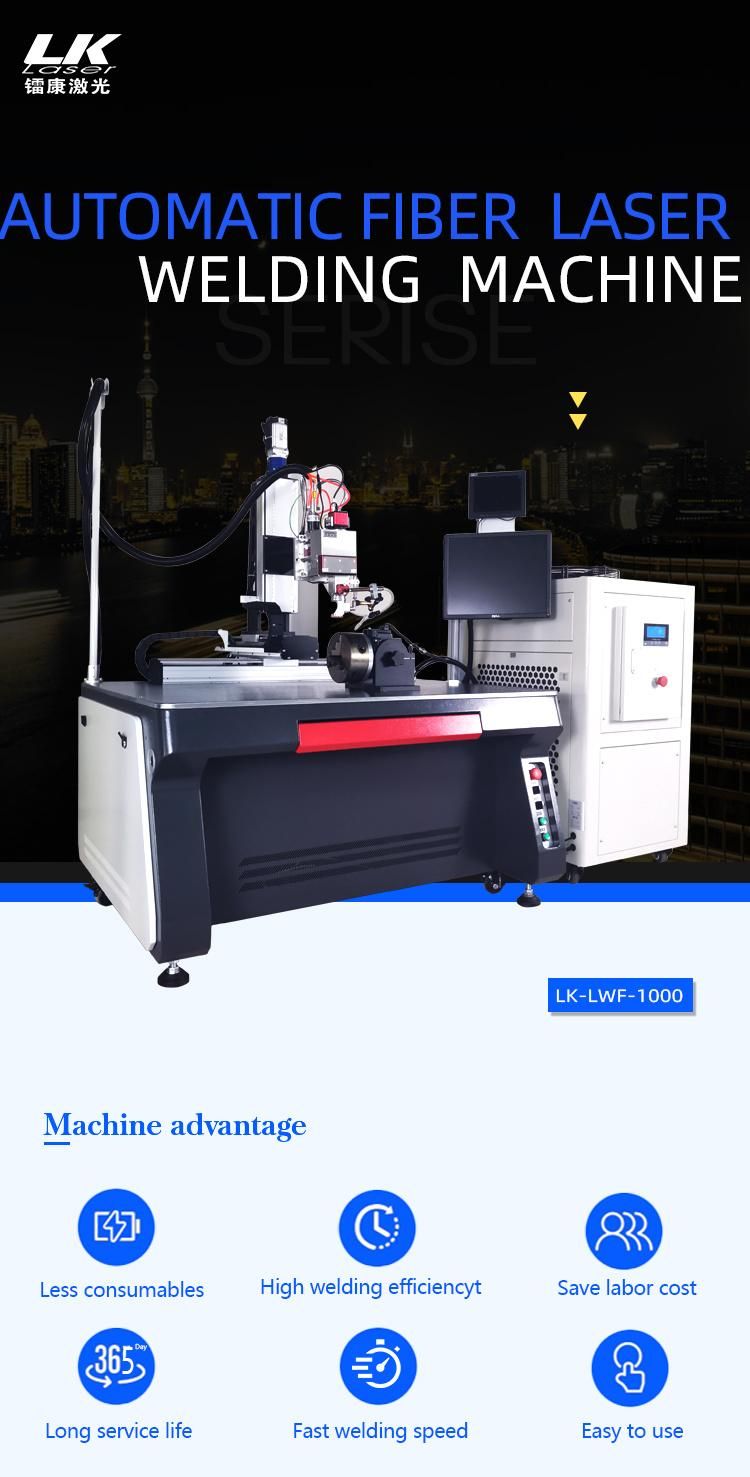

Battery laser welding machine 1000W 2000W 3000W aluminum laser welder

Description:

Laser passes through aligning lens and then focuses on workpiece by fiber.

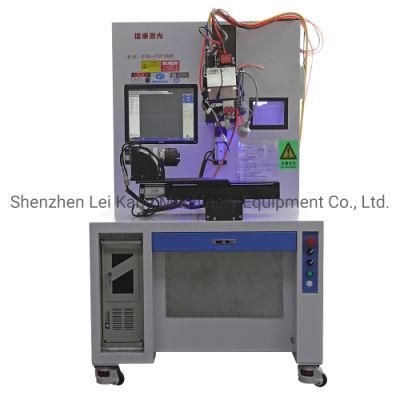

LK-LWF series adopts advanced technical know how from Germany to weld the mould and mechanical parts in large, middle and small size.

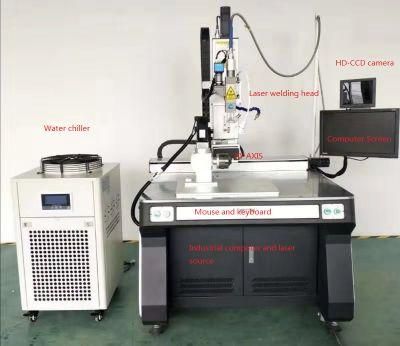

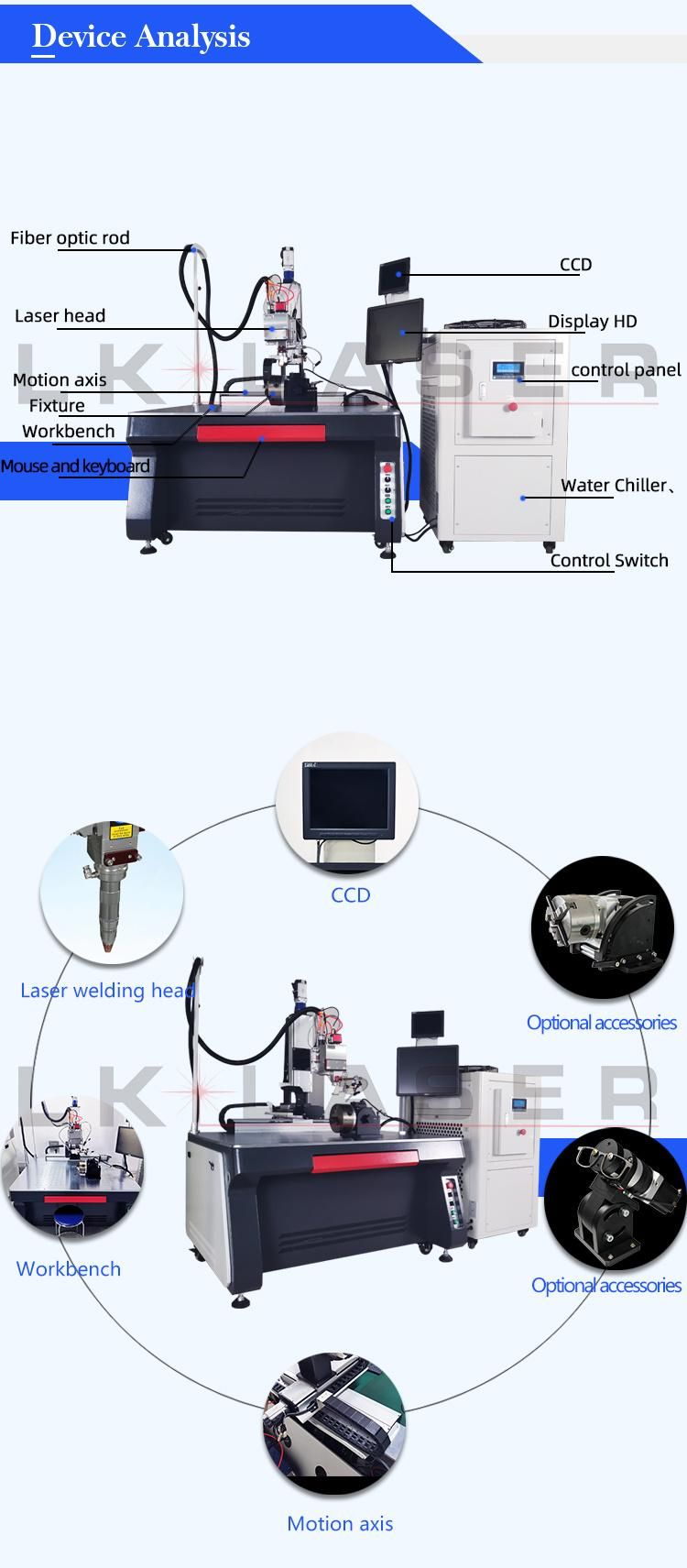

Equipped with multidimensional ball screw table, imported servo control system contains a rotating table, you can weld cylindrical shape of objects and other types of objects ,suitable for a wide range, high precision and speed.

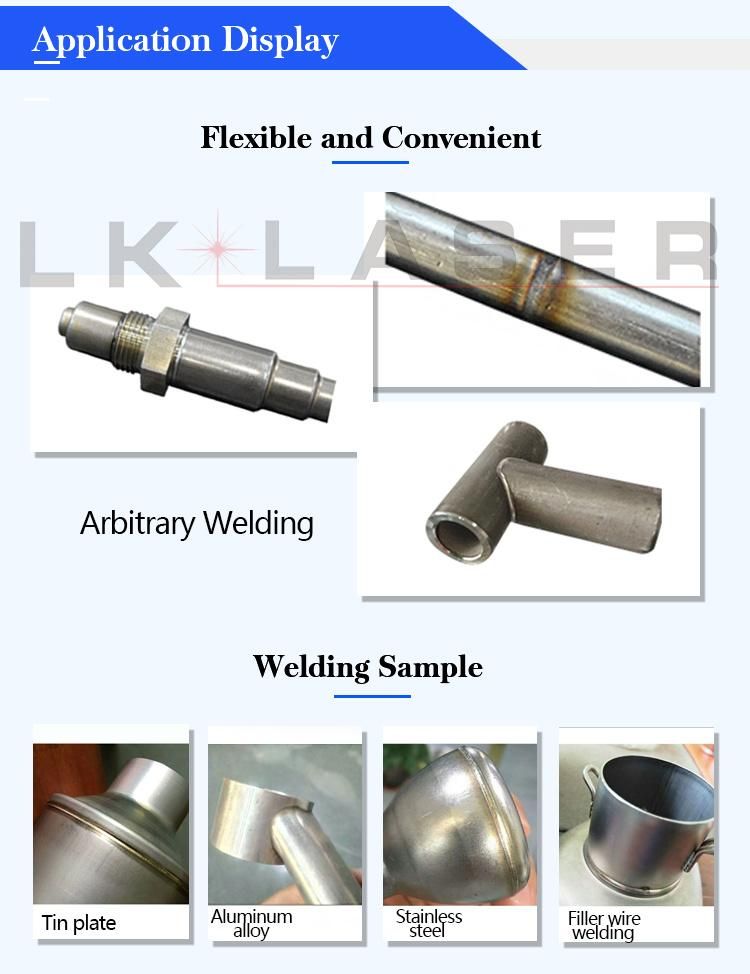

1. Application& Material

Suitable for welding all kinds of metal industries, opto electronic communication devices, medical, electronics, copper parts, aluminum parts and small welding processing industries.


1. Application Industrial

widely used in stainless steel products and other hard materials advertising letter industry construction industry



Model	LK-LWF1500
Max Laser power	1500W
Laser type	optical fiber
Pulse width	0.1ms~20ms
Laser wavelength	1064nm
Duty Ratio	1-100% (adjustable)
Pulse frequency	0~10KHZ (adjustable)
Laser Welding Depth	3 mm
Visual system	Red point
Life span time	80 000-120 000 hours
laser spot adjust range	0.2-2mm(option)
Temperature of Operation	0ºC~40ºC
Integrity power	10KW
Shield gas	One line(argon)
Cooling method	Water cooling
Power supply	AC380V+-15%/50Hz/15A
Place of origin	Shenzhen China(Mainland)
Guarantee	1 year
