• Model NO.：MT-W200Y
• Laser Type：YAG Lasers
• Wavelength：1064nm
• Max.Pulse Energy：90j
• Max.Welding Thickness：0.1-0.8mm
• Gross Power：≤7kw
• Pulse Width：0.2-20ms
• Working Table：3D Manual
• Positioning：Microscope
• Lifting Distance：Fixed,300mm
• Laser Axial Rotation：Fixed,360°
• Horizontal Direction：Fixed,Y Axis Can Move,Xy Motorized
• Transport Package：Standard Export Wooden Box
• Trademark：MACTRON
• Origin：Guangdong
• Production Capacity：200 Sets,Month

Basic Info.

Model NO. MT-W200Y Laser Type YAG Lasers Wavelength 1064nm Max.Pulse Energy 90j Max.Welding Thickness 0.1-0.8mm Gross Power ≤7kw Pulse Width 0.2-20ms Working Table 3D Manual Positioning Microscope Lifting Distance Fixed/300mm Laser Axial Rotation Fixed/360° Horizontal Direction Fixed/Y Axis Can Move/Xy Motorized Transport Package Standard Export Wooden Box Trademark MACTRON Origin Guangdong Production Capacity 200 Sets/Month

Product Description

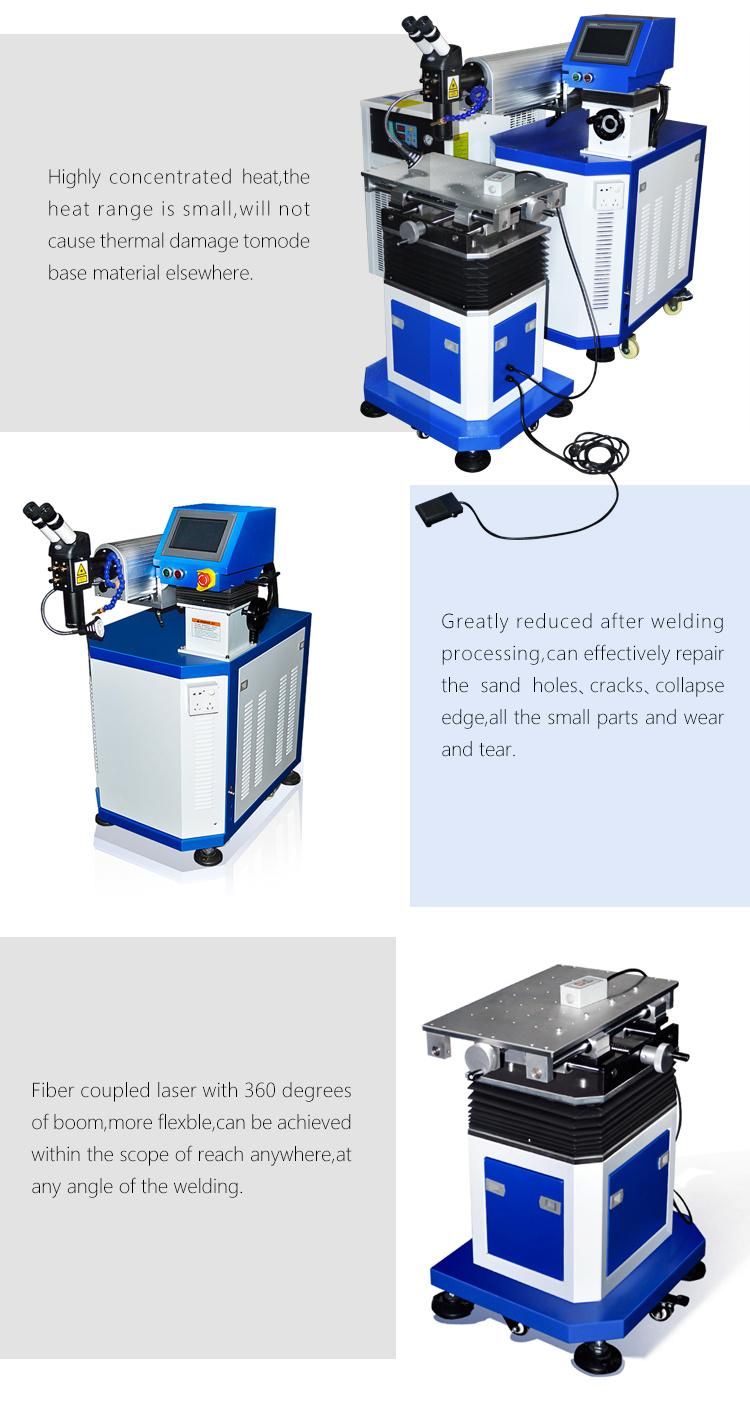

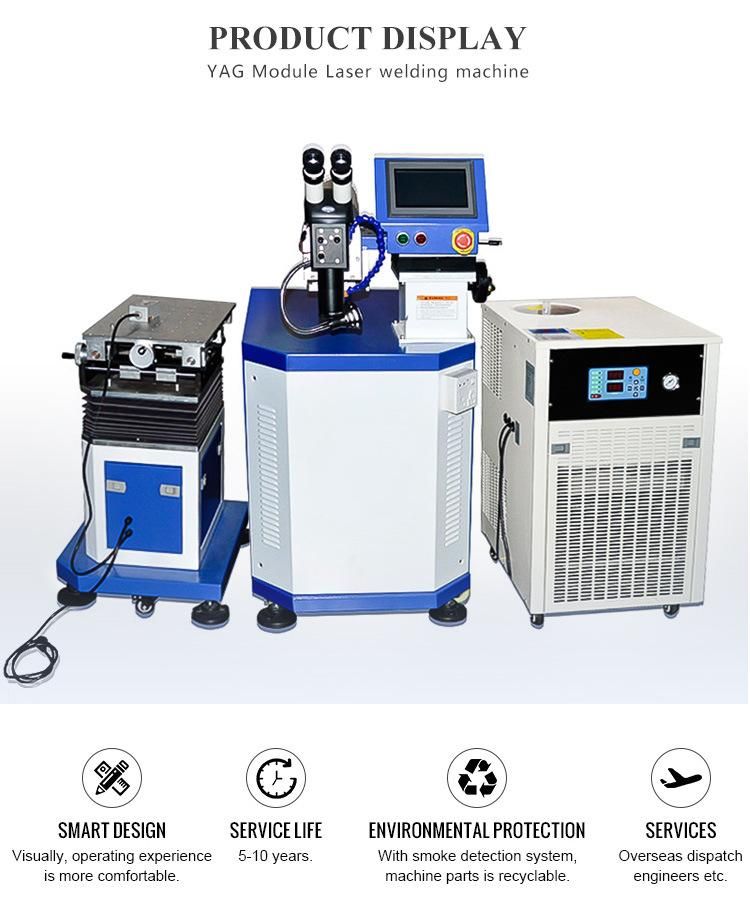

Hot sale cnc laser optical laser welding machine for battery


Product Application

MT-W series laser welding machine using Nd3 +: YAG solid-state laser, after beam expander,  reflection (or optical fiber transmission) , the pulsed laser focused on object to be welded,  workpieces can hand-held or fixture with clamps , Then the laser trigger footswitch effect on the workpiece, moreover, it also can be an external control system for automatic welding. Frequency, pulse width, table speed, the moving direction of the pulse laser welding controlled through a computer, the power of the laser frequency, the pulse width can be adjusted to different settings to control the laser pulse energy.

Model	MT-W200Y
Laser Power	200W
Laser Type	YAG Lasers
Wavelength	1064nm
Max.Pulse energy	90J
Max.Welding thickness	0.1-0.8mm
Gross Power	≤7KW
Voltage	220V±10%/50HZ/30A(380V)/380V ± 10%/50HZ/40A
Pulse Width	0.2-20ms
Spot Adjustable Range	0.2-2mm
Frequency	0.5-20Hz
Cooling Mode	Water Cooling
Protective Gas	Single 1(Argon)
Warranty	1 Year

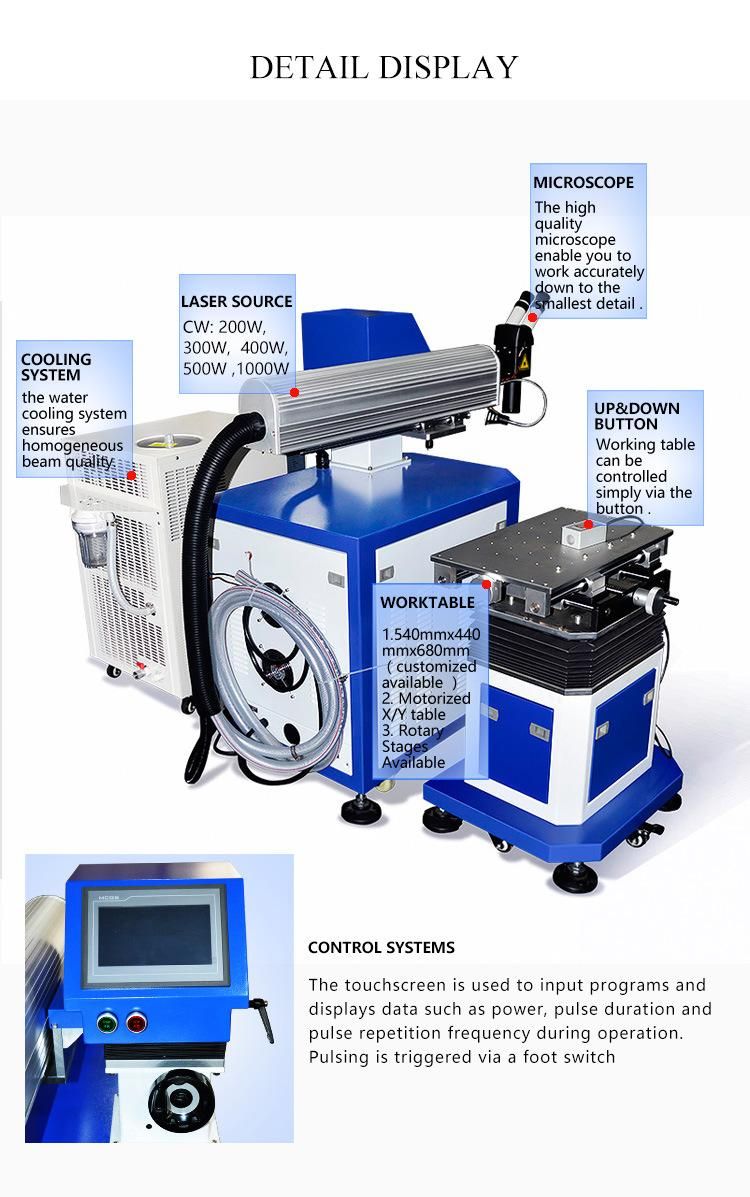

Working Table	3D Manual
Positioning	Microscope
Lifting distance	Fixed/300mm
Laser axial rotation	Fixed/360°
Horizontal Direction	Fixed/Y Axis Can Move/XY Motorized

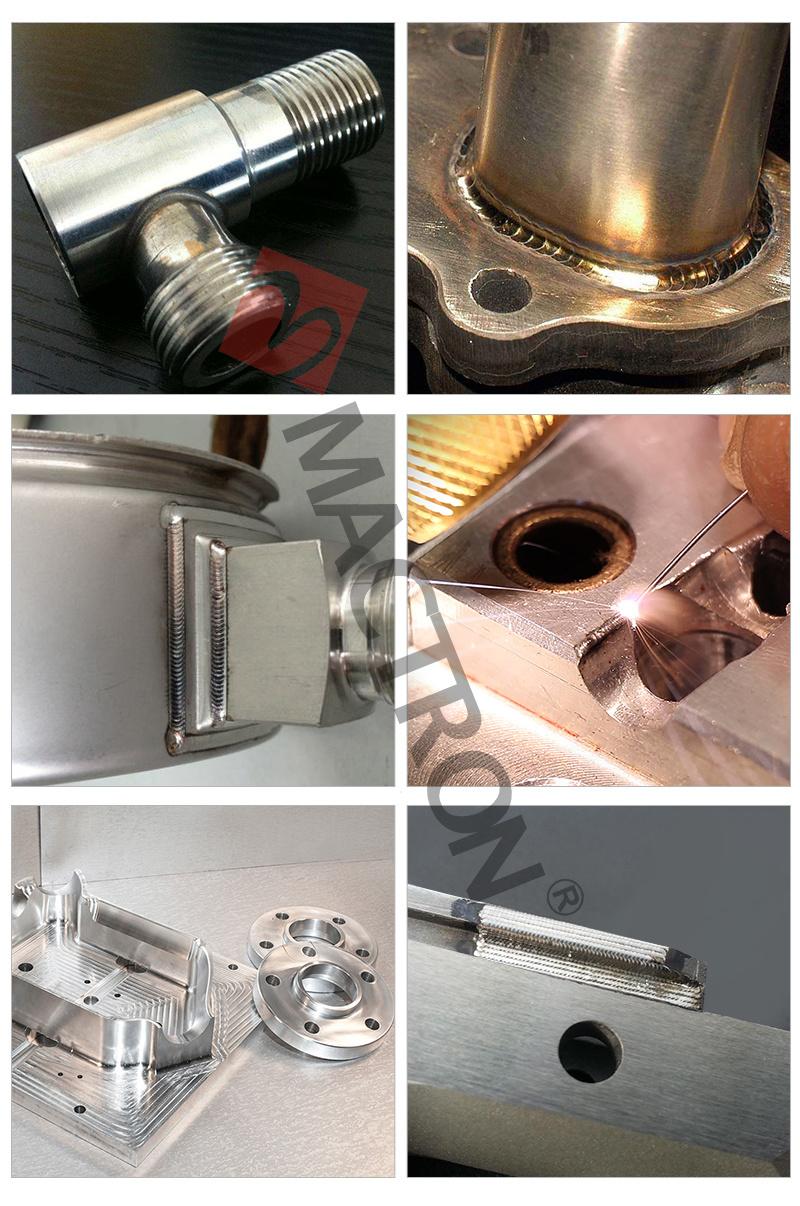

Samples




Company Information
Dongguan Mactron Technology Co., Ltd (Mactron Technology Co., Limited) mainly manufactures and sells products like Fiber Laser Marking Machine , UV Laser Marking Machine , Co2 Laser Marking Machine, Laser Printer, Co2 laser cutting and Engraving Machine, Fiber Laser Cutting Machine, Laser Flat Bed, Customized Laser Equipment and a full laser spare parts. The laser equipment system is widely used in many fields, including textiles, leather, clothing, industrial fabrics, advertising, technology products, printing, packaging, electronics, pharmaceuticals, furniture, hardware tools, molds, and other industries.
10 Years experience .
1 year warranty.
200 sets machines per months .

FAQ
Q: I know nothing about this machine, what type of machine should I choose?
A:We will help you choose the suitable machine and share you the solution; you can share us the following information
1. what material will you weld
2. The welding material thickness
3. Is it joint welding or over-lay welding
4. What is the exact usage for the machine , for product welding or repair or other application

Q: When I got this machine, but I don't know how to use it. What should I do?
A: Our engineer will do training online. If needed, we will arrange our engineer to your factory for training or you can send the operator training in our factory .

Q: What's package, will it protect the products?
A: We have 3 layers package. For the outside, we adopt wooden cases free of fumigation. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic film.

Q: What's delivery time?
A: As per your requirement , we will suggest the suitable machine . The exact delivery time as per your machine.

Q: How can I pay my order?
A: We accept T/T, Western Union ,Money Gram paying methods.

Q: Can you arrange the shipment for me ?
A: We can arrange the shipment for our clients by sea or by air. Trading terms FOB, CIF, EXW are available.
