• Model NO.：UG-2030L-2
• Laser Technology：Laser Control Fault Cutting
• Working Area：2000*3000mm
• Laser Head Number：Double
• Rated Laser Power：Reci W2 90W
• Working Table：SUS304 Stainless Steel Strip Auto Feeding Working
• Driver and Motor Type：Yako Three Phases Stepper Motor and Driver
• Guide Rail：Linear Square Guide Rail
• Transmission Type：Belt Transmission
• Cutting Speed：0-10000mm,Min
• Control System：Leetro Control System
• Cooling：Industrial Chiller Cw-3000
• Transport Package：Plywood Case
• Specification：2200*4300*1700mm, 1000kg
• Trademark：UPGOAL
• Origin：China
• HS Code：8456110090
• Production Capacity：250set Per Month

Basic Info.

Model NO. UG-2030L-2 Laser Technology Laser Control Fault Cutting Working Area 2000*3000mm Laser Head Number Double Rated Laser Power Reci W2 90W Working Table SUS304 Stainless Steel Strip Auto Feeding Working Driver and Motor Type Yako Three Phases Stepper Motor and Driver Guide Rail Linear Square Guide Rail Transmission Type Belt Transmission Cutting Speed 0-10000mm/Min Control System Leetro Control System Cooling Industrial Chiller Cw-3000 Transport Package Plywood Case Specification 2200*4300*1700mm, 1000kg Trademark UPGOAL Origin China HS Code 8456110090 Production Capacity 250set Per Month

Product Description

Large 2000*3000mm Fabric Garment Cloth Co2 Laser Cutting Machine



Features

Auto material-feeding platform

Caterpillar band type auto material-feeding platform with new type flat flex belts with strong absorption for wool fabric, realizing continous feeding and cutting with with less labor and material.

Auot edge cutting without rough edge, burr.

With Oneline control system, Work can be loaded from the Cloud.

Fabric Presser

Fabric is adsorbed onto the working table ensured materia is fed steadily without creases curled edges



Laser Head

Newly design, More in according with mechanical engineering. Safe and Durable. Simple Operation with high engraving/cutting speed and high laser power convert ratio.

Double laser head, improving the working efficiency.

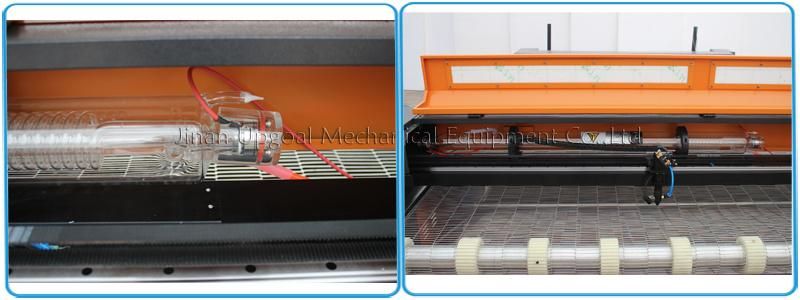

Laser Tube

Adopted famous Reci W2 Co2 laser tube, rated power: 90W, peak power: 100W, long time time and stable



Working Table

SUS304 stainless steel Strips: With oxidation treatment and low reflection ratio Ensured cutting quality



Beam Path System

Adopting imported focus lens with high lusciousness and mirror with high reflective ensure stable power transference.

Motion System

Imported High precision,low friction force and stand wear and tear linear square guide rails and blocks with 3M belt ensured stable transmission, lower noise

Operation System

Advanced USB port Leetro DSP auto feeding control system with large inner memory device and Fast rectilinear cutting and Optimized shortest path function, Greatly improved the working efficiency .

With full-process automatic laser power attenuation compensation , ensuring the performance consistency of engraving/cutting. The High speed motion control program with pre-buffering function enhances productivity more.

Completely compatible with various CAD&CAM softwares such as AuotCAD, CorelDAW, supporting the desgins directly exporting. With advanced Color management and defining the working turns with different colors , All or a part work can done in one time.

Rationalized placement of the electronic parts Optimized heat dissipation effect.



Cooling system

Industrial chiller CW-3000

Technical Parameters


Effective working area	2000*3000mm
Laser Type	Co2 sealed-off laser tube
Laser tube power	W2 series, Reci, Beijing (Rated power: 90W, max. Power: 100W)
Working table	Caterpillar band type auto material-feeding platform with new type flat flex belts
Driver mode	3 phases stepper motor and Driver, Yako brand
Guide rail	Linear square guide rail ( Hiwin,Taiwan)
Transmission	Belt transmission
Control panel	English
Laser output control	1-100% software setting
Engraving speed	0-60000mm/min
Cutting speed	0-10000mm/min
Control system	Leetro
Control software	LaserCut
Design software when delivery	CorelDraw
Control panel	DSP offline
Resolution accuracy	< 0.01mm
Location precision	< 0.01mm
Highest scanning accuracy	2500DPI
Type of cooling	Industrial chiller  cooling CW-3000
Water protection system	Yes
Blow-off system	Air pump for the laser head Air blower for the machine
Biggest scanning accuracy	2500DPI
Working temperature	0-45 °C
Operating humidity	5-95% (without condensed water)
Voltage	AC 220V 50/60Hz, single phase
Supporting picture format	PLT,DST,DXF,BMP, DWG,AI,LAS,etc
Voltage	AC 220V±10% 50/60Hz, single phase or AC 110V±10% 50/60Hz, single phase
Certificate	CE/FDA



Applications

A variety of fabrics can be cut into any graphics precisely which can be made into Sofas, tents, umbrellas, clothing, leather, soft cloth (cloth, leather, plush), car interior (seat covers, floor mats, cushion).

Reference Working Videos

https://upgoalcnc.en.made-in-china.compyInEaDg01cVvL

Reference Sample Photos





 For more information, just feel free to contact us!
