20W 30W Fiber Laser Marking Machine for Metal

Dongguan Hispeed Laser Technology Ltd.
  • Laser Visibility:Visible
  • Applicable Material:Metal
  • Cooling System:Air Cooling
  • Technical Class:Continuous Wave Laser
  • Laser Wavelength:Fiber Laser
  • Laser Classification:Semiconductor Laser

Base Info

  • Model NO.:LS-YLP-20L
  • Type:Optical Fiber Laser Marking Machine
  • Marking Method:Scanning Marking
  • Laser Power:20W, 30W, 50W,
  • Wavelength:1064nm
  • Engraving Depth:1.2mm
  • Minimum Charac:0.1mm
  • Life of Laser Module:70000~10000hrs
  • Power Consumption:<500W
  • Engraving Range:Max 400*400mm(Customized)
  • Minimum Line Width:0.012mm
  • Repeated Accuracy:+-0.003mm
  • Transport Package:Wooden Case
  • Specification:900*800*1590
  • Trademark:Lospeed or Customized
  • Origin:China
  • HS Code:8456100090
  • Production Capacity:50 Sets , Month

Description

Basic Info.

Model NO. LS-YLP-20L Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Laser Power 20W, 30W, 50W, Wavelength 1064nm Engraving Depth 1.2mm Minimum Charac 0.1mm Life of Laser Module 70000~10000hrs Power Consumption <500W Engraving Range Max 400*400mm(Customized) Minimum Line Width 0.012mm Repeated Accuracy +-0.003mm Transport Package Wooden Case Specification 900*800*1590 Trademark Lospeed or Customized Origin China HS Code 8456100090 Production Capacity 50 Sets / Month

Product Description

20W 30W Fiber Laser Marking Machine for Metal

20W 30W Fiber Laser Marking Machine for Metal

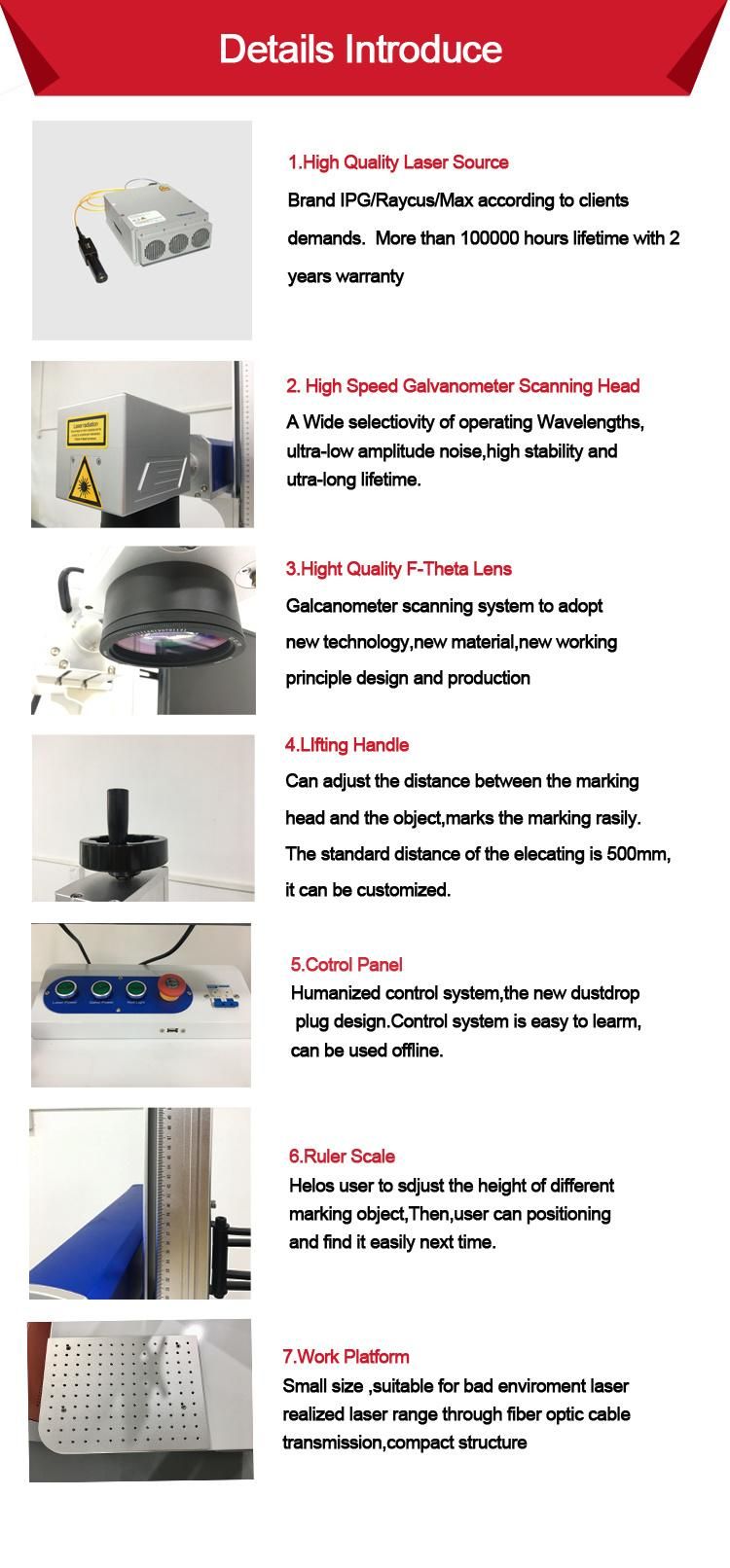

>>>>>Equipment Description<<<<<
  1. Marking on various metal and some plastic material
  2. No consumables, free Maintenance
  3. Stable performance, no faulty in long time working
  4. Long lifetime upto 100,000hours
  5. High marking speed, high efficiency, high precision
  6. Software with powerful edit function but easy operation
  7. Air cooling design, compact structure

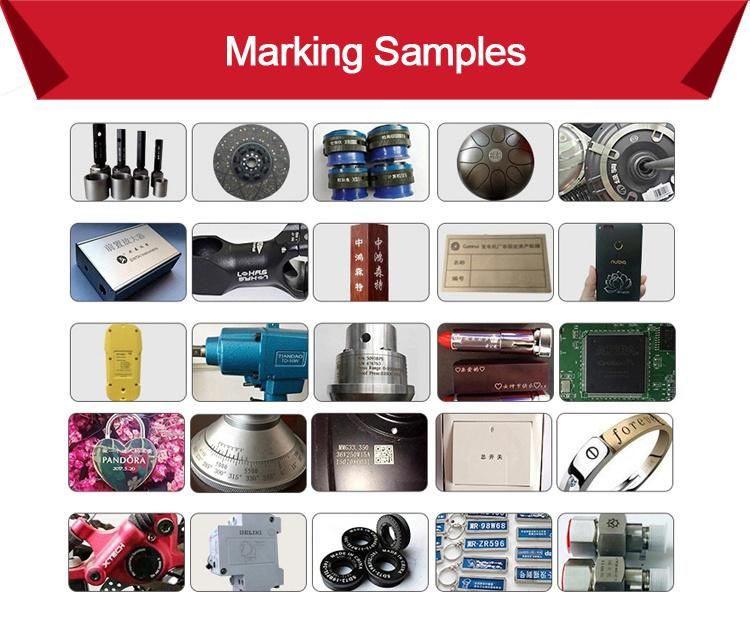

>>>>>>>Application<<<<<<<

Fiber laser marking machine wide range application,mainly for all kinds of metal and plastic.Especially suitable for hardware tools,kitchenware knifes,plastic seals products ,metal jewelry,label,integrate ciruits,frames,plumbing fittings and other products.


20W 30W Fiber Laser Marking Machine for Metal

>>>>>>Technical Parameters<<<<<<

ModelYLP-20JYLP-30J
Power20W30W
Wavelength1064nm1064nm
Beam QualityM2<1.3M2<1.3
Output Power10%-100%(continuously to be adjusted)10%-100%(continuously to be adjusted)
Output Frequency20KHz-100KHz(continuously to be adjusted)20KHz-100KHz(continuously to be adjusted)
Power Stability(8h)<±1%rms<±1%rms
Focus Spot Diameter<0.01mm<0.01mm
Engraving Range≤400*400mm(customized)≤400*400mm(customized)
Engraving Depth1.2mm1.2mm
Engraving Speed800 standard characters/second800 standard characters/second
Minimum Line Width0.012mm0.012mm
Minimum Character0.1mm0.1mm
Repeated Accuracy±0.003mm±0.003mm
System OperationWindows XP/2000/98Windows XP/2000/98
Cooling ModeAir CoolingAir Cooling
Environment Temperature10ºC~35ºC10ºC~35ºC
Environment Humidity20%-80%20%-80%
Power Requirement220V/Singlephase/50Hz/<400W220V/Single phase/50Hz/<400W
Life of Laser Module100000Hrs100000Hrs
Host Size800mmx650mmx1435mm800mmx650mmx1435mm


20W 30W Fiber Laser Marking Machine for Metal

20W 30W Fiber Laser Marking Machine for Metal
Q1: What's the warranty?
A1: Two years for laser source, one year for other parts, change or repair the broken parts during warranty, our
FAE will teach you how to remove the broken parts by video.
Warranty excluding man-made damage.
We are real warranty based series number on the machine, not false or empty promises, any too long time warrantyis unreliable, ourt warrannty is effective and enforceable.

Q2: What's the package?
A2: We have 3 layers package. For the outside, we adopt wood craft case.
In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer,
the machine is covered by thickening plastic Bag for waterproof.

Q3: How to install and run the machine?
A3: You will get details in user manual, you only need install the column with laser path and put on monitor of computer.
You will get a CD of orginal marking software and online video about basic operation.
You also will get a software operation manual and you can be a laser marking master after reading and practics.
You can send your questions to our online after-serive 24 hours.

>>>>>>Company Information<<<<<<

Lospeed laser company is a professional Laser Marking Machine Manufacturer , The company focuses on the development and innovation of a complete set of laser processing and application solutions for customers. The core products are "Fiber laser marking machine, UV laser marking machine and CO2 laser marking machine" as the core products. The company has formed three major products series and targeted solutions for different segments, different sizes and different applications for advertising, industrial manufacture and so on. It is a more influential equipment manufacturer in the laser application industry.


The growth of Lospeed laser company is the process of serving customers and growing up with customers. With gratitude, we do everything in our heart and meet every challenge with confidence.



>>>>>>>>>Contact Us<<<<<<<<<

Lospeed Laser is a real manufacturer of fiber laser marking machine,contact us for further information if you are interested,thanks a lot.
