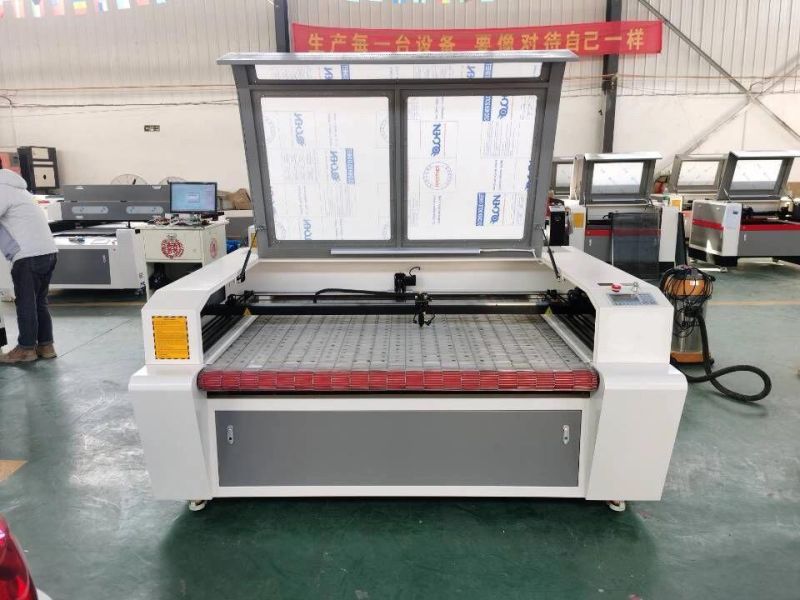

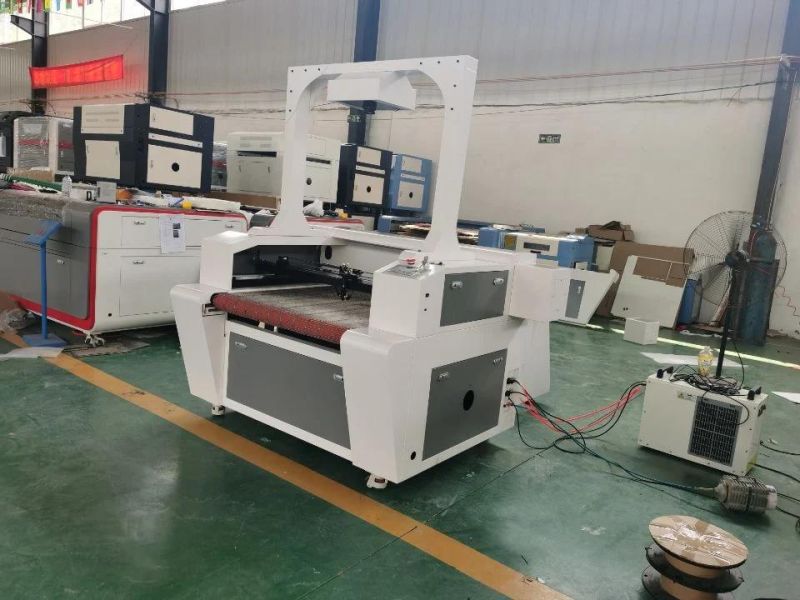

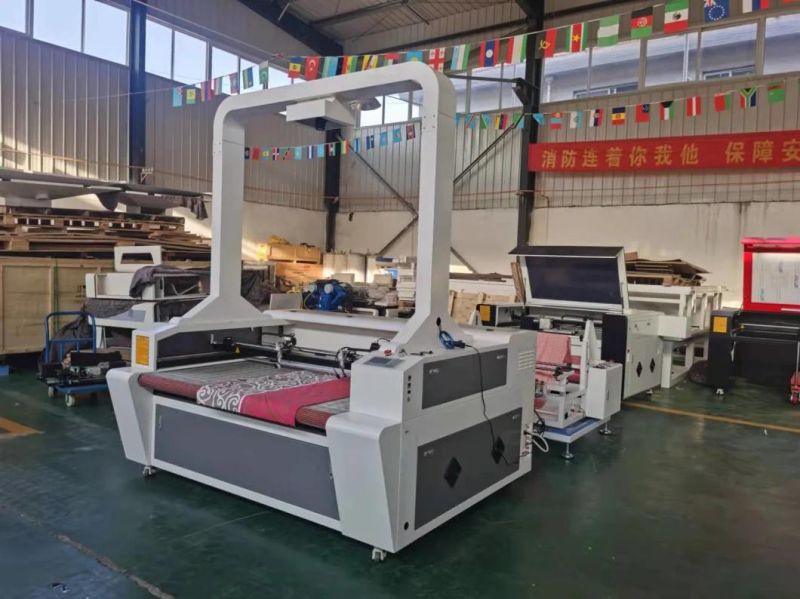

Dual Heads CO2 Laser Cutting Machine with Auto Feeding System for Fabric Fiberglass Garment Leather
Shandong Ruby CNC Equipment Co., Ltd.- After-sales Service：Whole Life
- Warranty：2 Years
- Application：Home Appliance, Textile Machinery, Shoemaking Industry, Woodwork Industry, Advertising Industry
- Cooling System：Water Cooling
- Technical Class：Pulse Laser
- Applicable Material：Nonmetal
Base Info
- Model NO.：FLC1610C
- Structure Type：Gantry Type
- Laser Classification：Gaseous Laser
- Laser Technology：Laser Control Fault Cutting
- Working Size：1600X1000mm
- Laser Power：100W-500W
- Delivery Time：in 7 Days
- Feeding Way：Automatic
- Transport Package：Plywood
- Specification：1610
- Trademark：FLYING
- Origin：China
- HS Code：8456100090
- Production Capacity：50PC,Month
Description
Features:
This automatic feeding laser cutting machine meet the demand of large format cutting, suitable for shoes, fabric, cloth, leather, textile, cloth cutting, punching etc The machine adopts strong lathe, it can assure the machine more stable and precision. We used the square linear guide rail and precision to assure working accuracy.

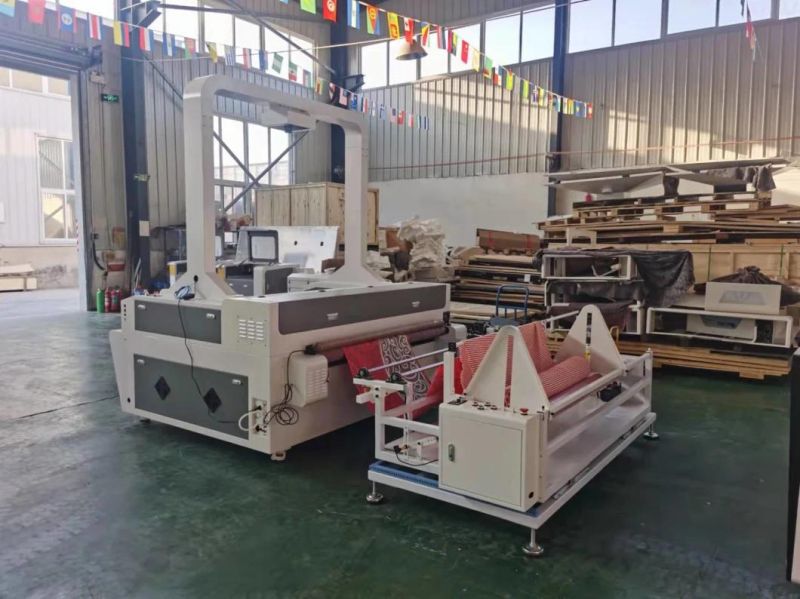

Automatic transfer system apply netted platform after special treatment, convenitent for free movement of processed object.

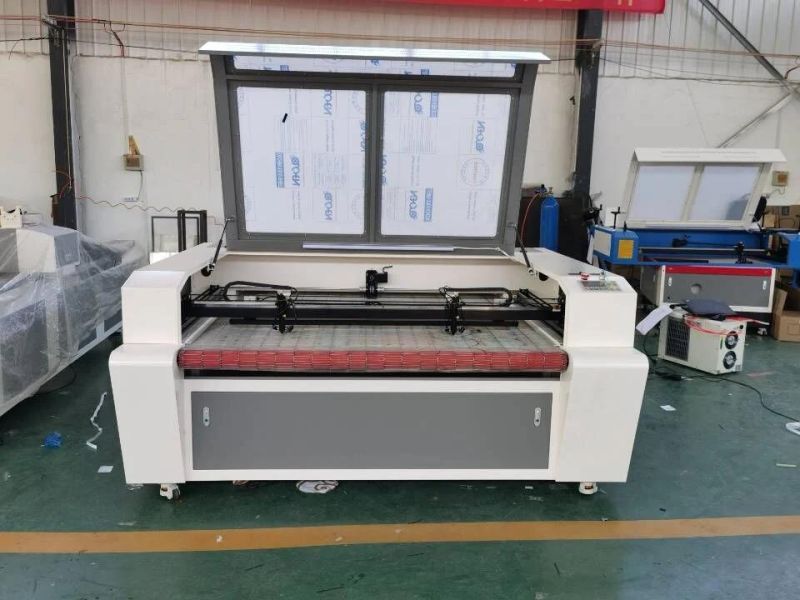

It can be equipped with one head, dual heads, four heads according to needs.
Technical Parameter:
Model
Auto Feeding Laser Cutting Machine FLC1610C
Laser-type
Hermetic and detached CO2 laser tube
Laser-power
100w-500w
Cooling Mode
Circulating-water-cooling
Power Adjustment
0-100% controlling, no segment and adjusting by software
Machine Control and Drive
Speedy DSP controlling, stepper motor
Max Engraving Speed
1000mm/s
Max Cutting Speed
300mm/s
Repeating Location
±0.01mm
Minimum Character
Chinese character 1.5mm, crisscross-row 1mm
Max Power
<2500W
Adjustable Up-down Distance of Laser Head
30mm
Working Travel Area
1600*1000mm, 1600mm width with infinity material-feeding
Table Area
1600*1000mm
Working Voltage
AC220V 50Hz
Working Environment
Temperature: 0-45, Humidity: 5%-95%, and congeal-water removed
Controlling Software Language
English, Simplified Chinese, Traditional Chinese and procuring of multi-languages
Dictate Format
*.plt,*.dst,*.dxf,*.bmp,*.dwg,*.al,*las,
Support AutoCAD,CoreDraw direct outputting
Packaging
Wooden box
Machine Color
White/Grey
Delivery Time
10 working days
Payment
T/T, Paypal, Western Union

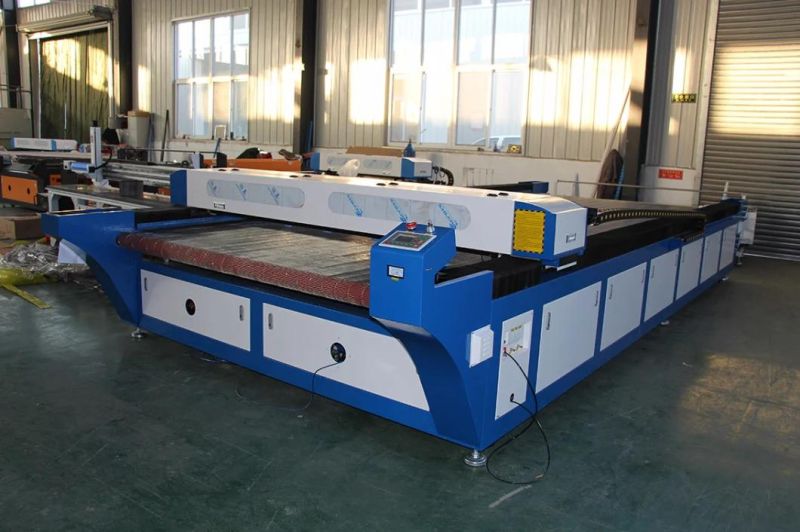

Working Size can be customsized according to clients' requirements: Such as 1600*2600mm, 2000*5000mm, 2600mm*6000mm

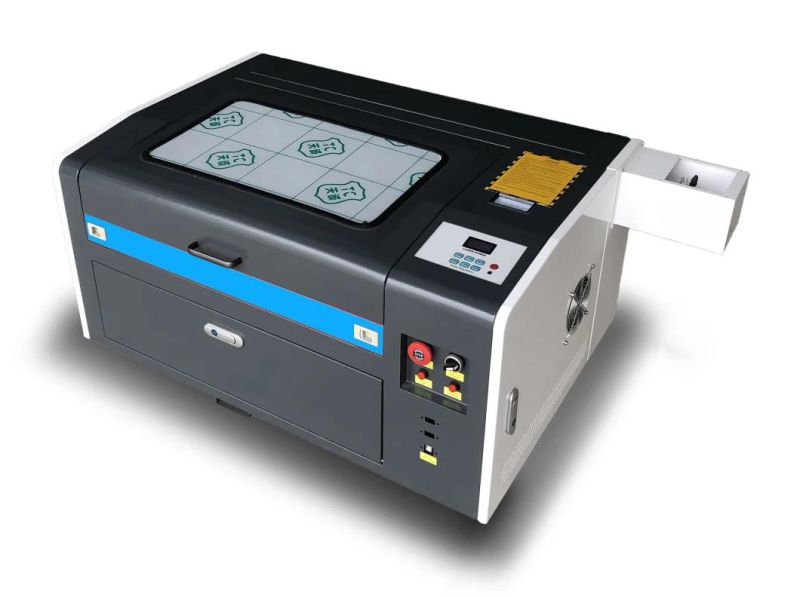

Other Machines for Choice:Desktop laser engraving cutting machine:
This laser machine is an desktop model, it is an useful economical laser processing device which is developed for the requirement of advertisements, gift packaging and other relevant fields. The equipment inherits the characteristics of both the original high-speed laser engraving and cutting machine.

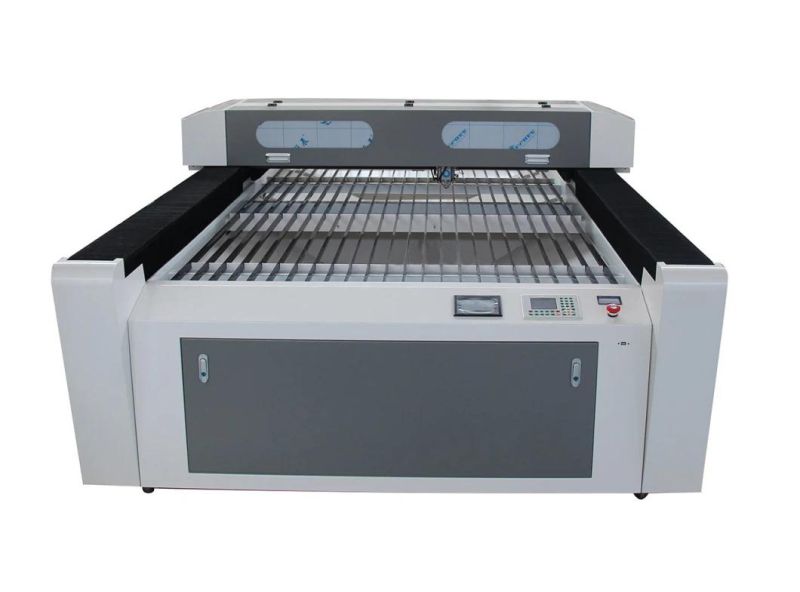

Mixed Laser Cutter for Metal and NON-metals:It can cut metals such as stainless steel,carbon steel, also can cut non-metal such as acrylic, wood, leather, fabric, fiberglass, foam, plastic and etc. It is equipped with advanced laser controlling system with auto focus function, if the metal sheet is not flat, the system can sense the distance from the nozzle to the material surface and follow the surface up and down to automatically adjust the certain focus distance to keep the highest precision cutting quality.
Samples Shown:
