Fiber Laser Coating Removal Machine 50W 100W Laser Oxide Removal Machines 200W Laser Oil Cleaning Machines

Fortune Laser Technology Co., Ltd.
  • Power：100w
  • Control Type：Handheld

Base Info

  • Model NO.：FL-C100
  • Warranty：1 Year
  • Laser Power：50W 100W 200W Optional
  • Laser Source：Jpt,Max,Raycus Optional
  • Fiber Cable Length：1.5m-3m, 2-5m
  • Laser Wavelength：1060nm
  • Pulse Energy：1mj, 1.5mj
  • Pulse Frequency：1-3000kHz
  • Cooling：Air Cooling
  • Dimension：538mm*411mm*685mm
  • Transport Package：Standard Wooden Case
  • Specification：538mm*411mm*685mm
  • Trademark：FORTUNE LASER
  • Origin：China
  • HS Code：8456110090
  • Package size per unit product：98.00cm * 68.00cm * 64.00cm
  • Gross weight per unit product：95.000kg

Description

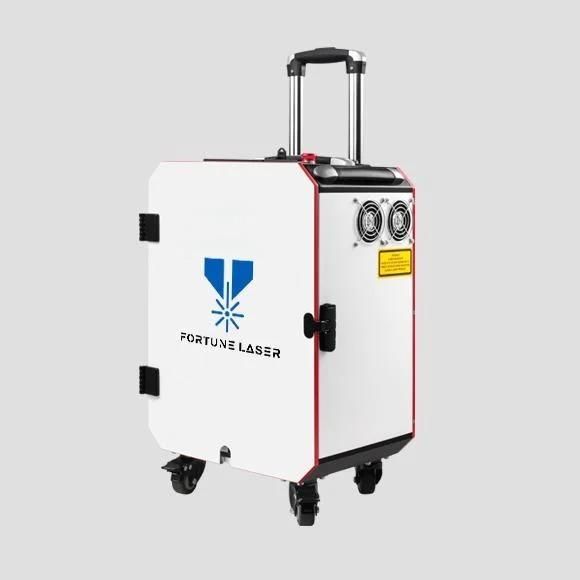

Suitcase type is same as a travel case, very easy to take along and move.
 Fiber Laser Coating Removal Machine 50W 100W Laser Oxide Removal Machines 200W Laser Oil Cleaning MachinesLaser head, lightweight to carry, easy to operate, output different share laser beam, like wave, circle and square.
 Fiber Laser Coating Removal Machine 50W 100W Laser Oxide Removal Machines 200W Laser Oil Cleaning MachinesFiber Laser Coating Removal Machine 50W 100W Laser Oxide Removal Machines 200W Laser Oil Cleaning MachinesFiber Laser Coating Removal Machine 50W 100W Laser Oxide Removal Machines 200W Laser Oil Cleaning Machines
Machine Parameters
ModelRL-C200SRL-C100SRL-C50S
Laser sourceFiberFiberFiber
Laser Power200W100W50W
Fiber cable length2-5M2-5M1.5-3M
Laser Wavelength1064nm1064nm1064nm
Pulse Energy1.5 mJ1.5 mJ1mJ
Pulse frequency1-4000KHz1-4000KHz1-1000KHz
Scanning speed0-7000mm/s0-7000mm/s0-7000mm/s
CoolingAir coolingAir coolingAir cooling
Dimension600*350*800mm408*270*575 mm300*160*450mm
Net Weight60KG33KG18KG
G.W.95KG95KG21KG
Beamwidth10-170mm10-100mm10-70mm
OptionalManual/AutoManualManual
Cleaning HeadDual AxisDual / Single AxisSingle Axis
Temperature5-40 ºC5-40 ºC5-40 ºC
VoltageSingle Phase AC 220V,50/60HZSingle Phase AC 220V, 50/60HZSingle Phase AC 220V, 50/60HZ
