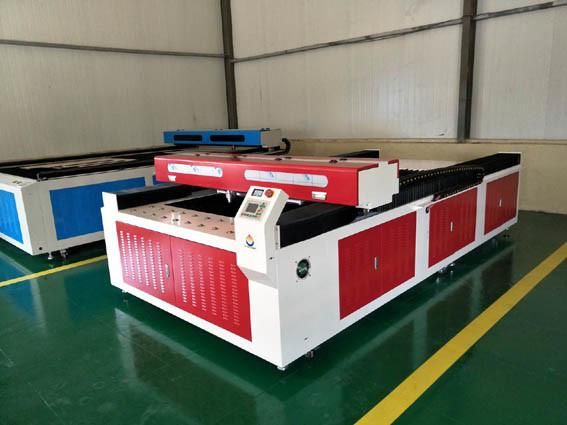

Professional CNC Laser Cutting Machine for Wood
Shandong Ruby CNC Equipment Co., Ltd.- Application：Home Appliance, Textile Machinery, Shoemaking Industry, Woodwork Industry, Advertising Industry
- Cooling System：Water Cooling
- Technical Class：Continuous Wave Laser
- Applicable Material：Nonmetal
- Structure Type：Gantry Type
- Laser Classification：Gaseous Laser
Base Info
- Model NO.：FLC1325
- Laser Technology：Laser Control Fault Cutting
- Working Area：1300*2500mm
- Laser Power：60W-150W
- Transport Package：Plywood
- Specification：1325
- Trademark：FLYING
- Origin：China
- HS Code：8456100090
- Production Capacity：100PCS,Month
Description
Basic Info.
Model NO. FLC1325 Laser Technology Laser Control Fault Cutting Working Area 1300*2500mm Laser Power 60W-150W Transport Package Plywood Specification 1325 Trademark FLYING Origin China HS Code 8456100090 Production Capacity 100PCS/MonthProduct Description
Professional cnc laser cutting machine for woodFeatures:The working area of 1300×2500mm can meet the demands of engraving and cutting on large scale garments and cloth, leather, wood, arylic and paper industry.
Specifications:
| Model | FLC1325 |
| Laser-type | 10.6um CO2 glass laser tube w/ water-cooling |
| Laser power | 80W-300W |
| Working area | 1300*2500mm |
| Max Engraving speed: | 0-50, 000mm/min |
| Max cutting speed | 0-24, 000mm/min |
| Laser output control | 1-100% software setting |
| Location precision | Less than 0.01mm |
| Highest scanning precision | 2500DPI |
| Operating temperature | 0 - 45 |
| Operating humidity | 5- 95% non-condensing |
| Minimum shaping character | English 1.0 x 1.0mm |
| Graphic format supported | HPGL, BMP, JPEG, PLT, DST, DXF, and AI ... |
| Driving system | Stepper(Optional: Servo) |
| Cooling mode | Water-cooling and protection system |
| Auxiliary equipments | Exhaust-fans, air-exhaust pipe, air pump, chiller |
| Controller | DSP |
| Compatible Software | CorelDraw, AutoCAD, Photoshop, TAJIMA |
| Slope Engraving | Can be easily designed within the "Grade Engrave" function. |
| Color separation | Uses color property to set function, speed, and laser power |
Applicable materials:
wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials.
Applicable industries:
advertisement, arts and crafts, shoes, toys, garments, model , building upholster, computerized embroidery and clipping, packaging and paper industry.
Cutting Thickness:
| Materials | 60w | 80w | 100w | 130w | 150w |
| Acrylic | 8mm | 15mm | 15mm | 20mm | 20mm |
| Leather Cloth | One layer | Two layer | Two layer | Three layer | Three layer |
| Wood | 5mm | 8mm | 10mm | 15mm | 15mm |
| Paper | 3mm | 6mm | 8mm | 8mm | 8mm |
| Plastic | 4mm | 5mm | 5mm | 7mm | 7mm |
| Rubber | 2mm | 2mm | 2mm | 2mm | 2mm |
| PVC | 3mm | 6mm | 8mm | 8mm | 8mm |
| MDF | 3mm | 6mm | 8mm | 10mm | 10mm |
| Plywood | 6mm | 10mm | 12mm | 15mm | 18mm |

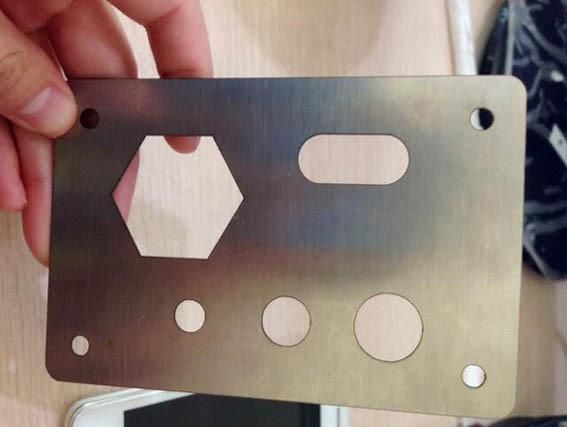

Samples Show:
