• Model NO.：S-20
• Laser Wavelength：Fiber Laser
• Laser Classification：Semiconductor Laser
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Certificate：BV SGS CE
• Marking Speed：7000mm,S
• Marking Range：110*110mm
• Laser Power：20W 30W 50W 100W
• Transport Package：Crate
• Specification：800*650*1400mm
• Trademark：Cascager
• Origin：Ningbo
• HS Code：8456100000

Basic Info.

Model NO. S-20 Laser Wavelength Fiber Laser Laser Classification Semiconductor Laser Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Certificate BV SGS CE Marking Speed 7000mm/S Marking Range 110*110mm Laser Power 20W 30W 50W 100W Transport Package Crate Specification 800*650*1400mm Trademark Cascager Origin Ningbo HS Code 8456100000

Product Description

Apart from traditional laser marking machines, which is difficult to place small objects in the right direction for marking accurately,CCD visual system uses OCR technique, it can picture, visuallize the object, capture the right spot to mark on. With this visual marking system, it could enlarge the range of product placing area too. Overall, it makes the marking much more efficient and accurate, and also increases the capacity of production dramatically!

CCD Visual Fiber laser marking machines could provide different wattages 20/30/50W.

Parameters:

Laser Power	20W/30W/50W
Wavelength	1064nm
Processing Area	70*70MM/110*110MM;  175*175MM/300*300MM(Optional)
Frequency Range	20-200Khz
Beam Quality	<1.6M2
Laser Source Lifetime	100000h
Marking Speed	<8000MM/S
Marking Depth	≤2MM
Repetition Precision	0.01MM
Min.Line Width	0.01MM
Min.Character	0.2MM
Cooling Mode	Air Cooling
Lifting Height	100-500MM(700MM)Optional
Graphic Formats Supported	PLT,DST,AI,DXF,BMP,JPG,CAD,CDR,DWG
Operating temperature	0ºC-40ºC
Warranty	1 Year
Humidity	5% to 85% (Free of Condensed Water )
Gross Power	<500W
Power source	AC110V/220V± 10%, 50/60HZ

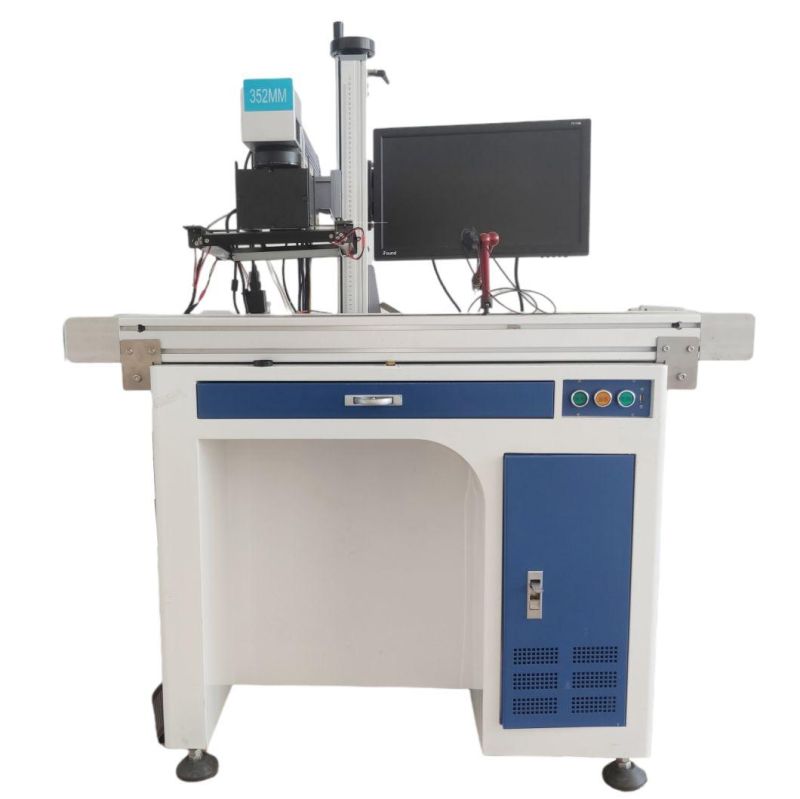

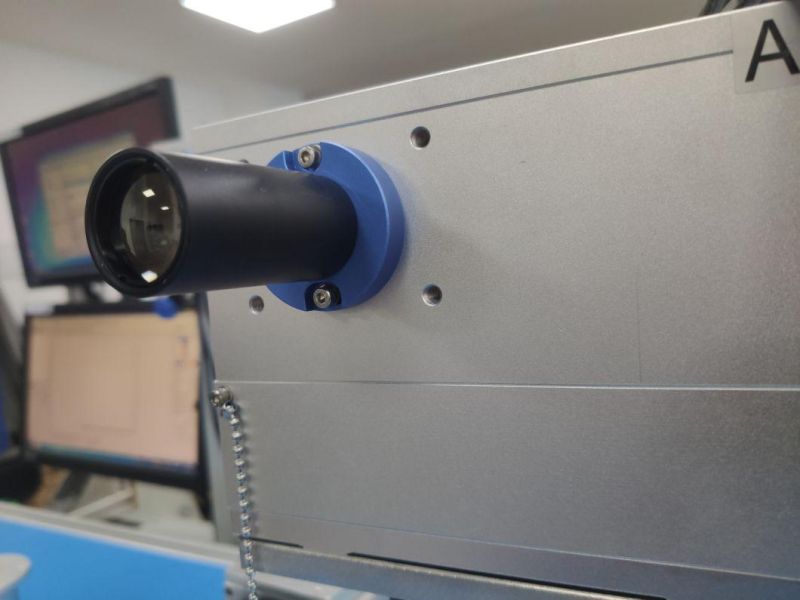

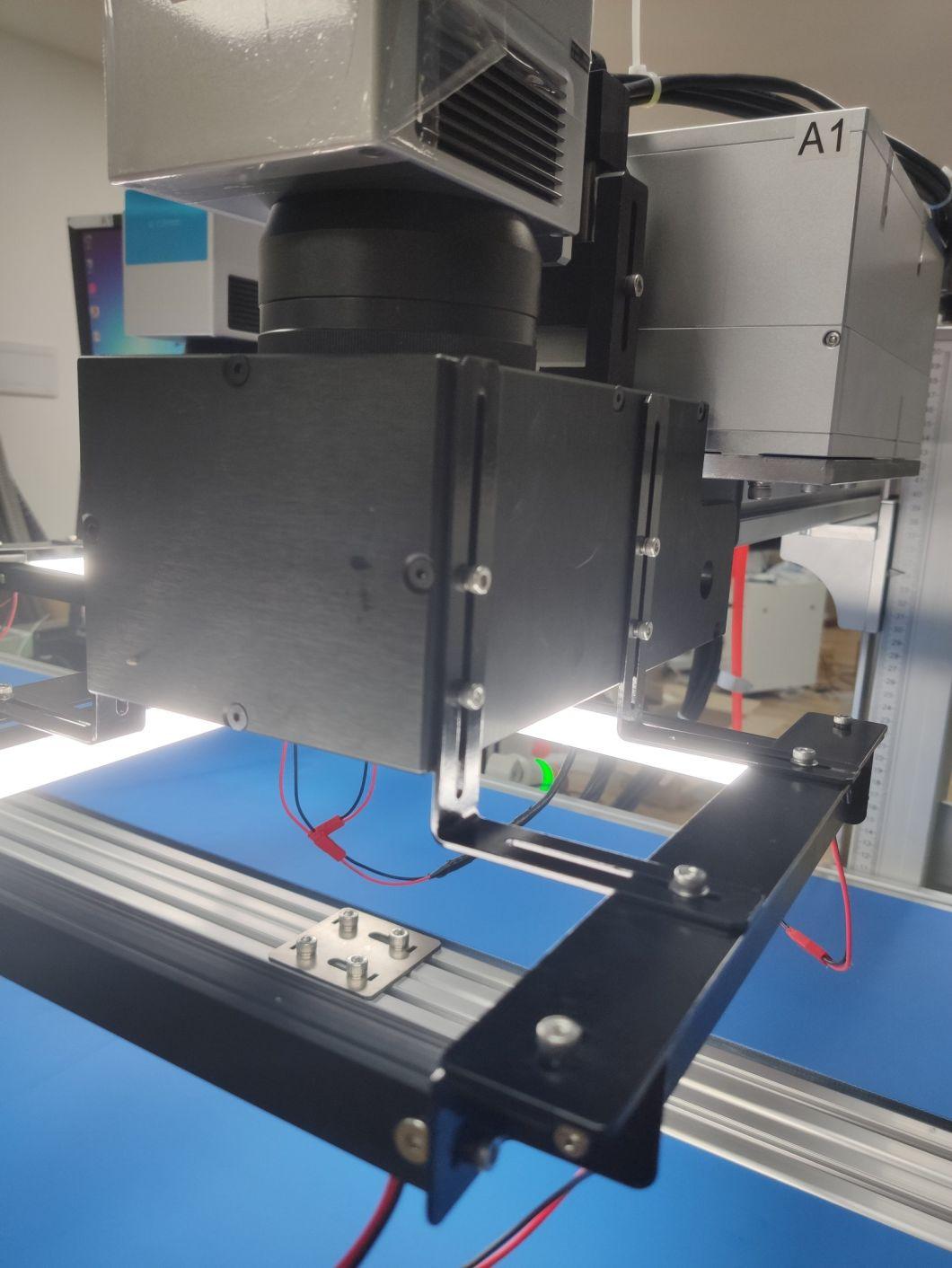

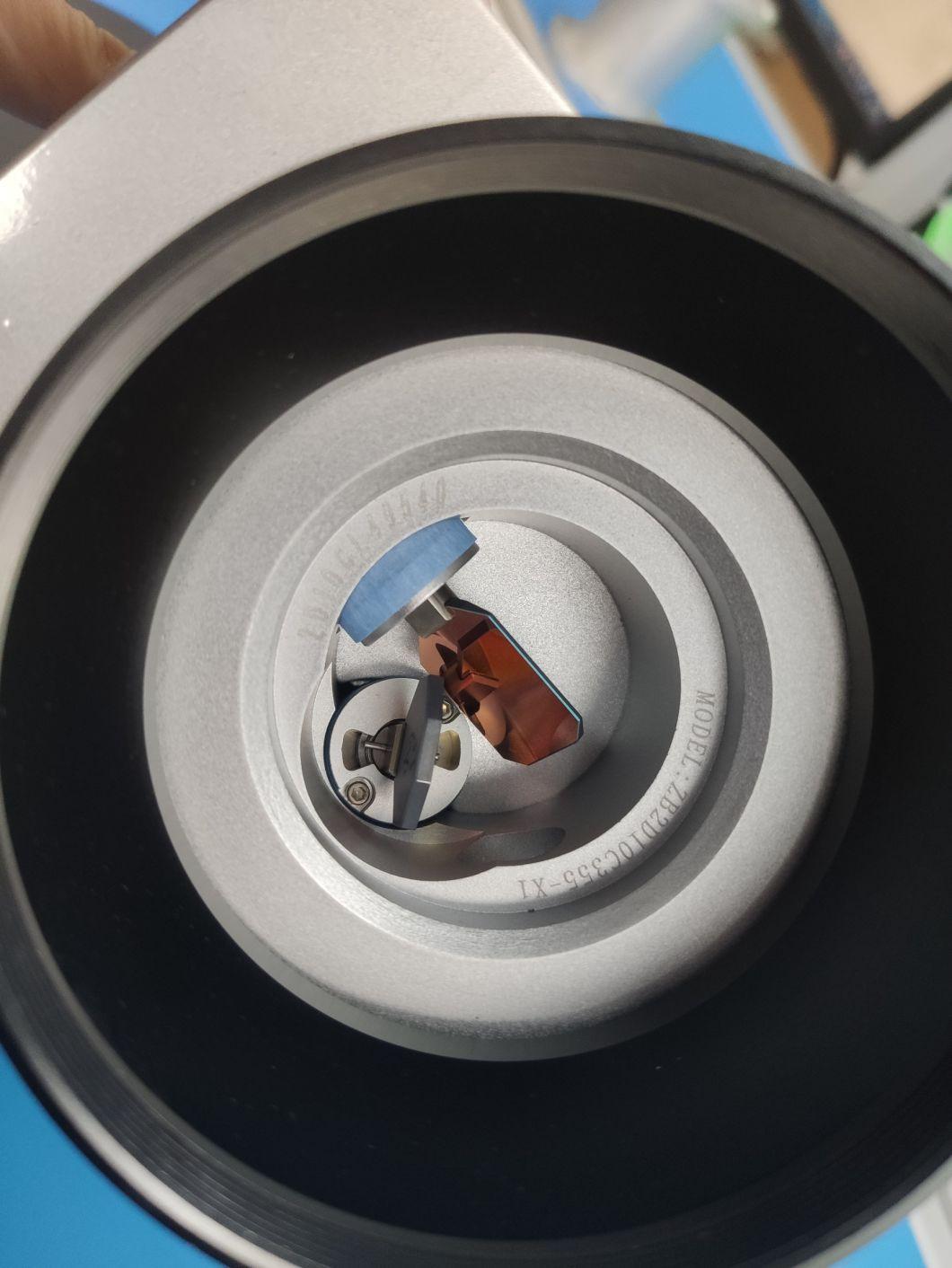

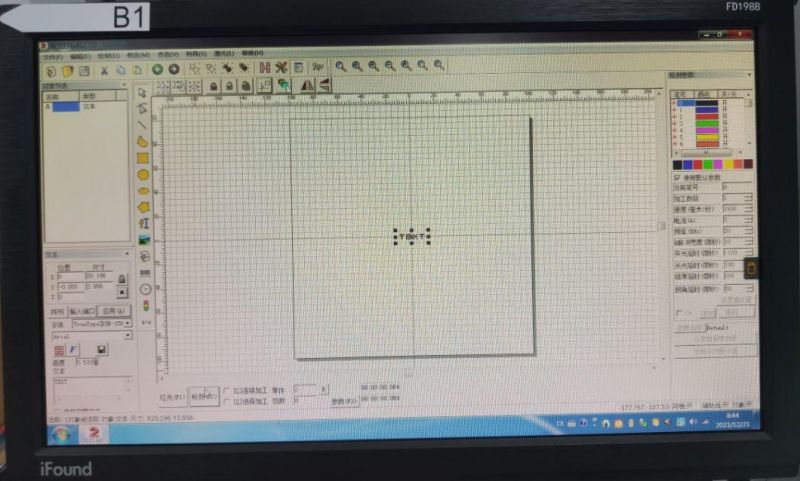

Here are detailed pictures of the Visual Laser Marking Machine














Q: Which industry can your visual fiber laser machine be used?
A: It can be used in all kinds of metal objects marking assembly lines, like factories or small workshops, also some online shops.

Q: What's the laser power of your fiber laser marking machine?
A: We have laser power from 20-100w, which allow the machine to mark on different metals like stainless steel, aluminum, iron etc.. and with thickness more than 0.01mm.

Q: How long is the production time?
A: Generally, lead time is 7-10 working days after receiving the payment.

Q: What is your packing?
A: We have 3 layers of packaging. First, waterproof plastic film around the machine, then covered with foam, last wooden crate.

Q: How to operate the visual fiber laser marking machine? Is training required?
A: The machine needs to be operated with software. It's very easy to use. We have a guide for you to follow and also can show you the process online, or by video calls to make sure you have everything you need.

When conditions allowed or if customers require, we can send our technicians to customers' factory for machine operating training or welcome our customers to visit our factory to see and get to know the process in person.

Q: Which countries are your laser machines sold to?
A: Our visual fiber laser machines sold to mainly Asia and Europe at the moment, like Japan, Korea, India, Ukraine, Turkey etc.
Any country needs to massively develop/improve marking capacity, is our target country.

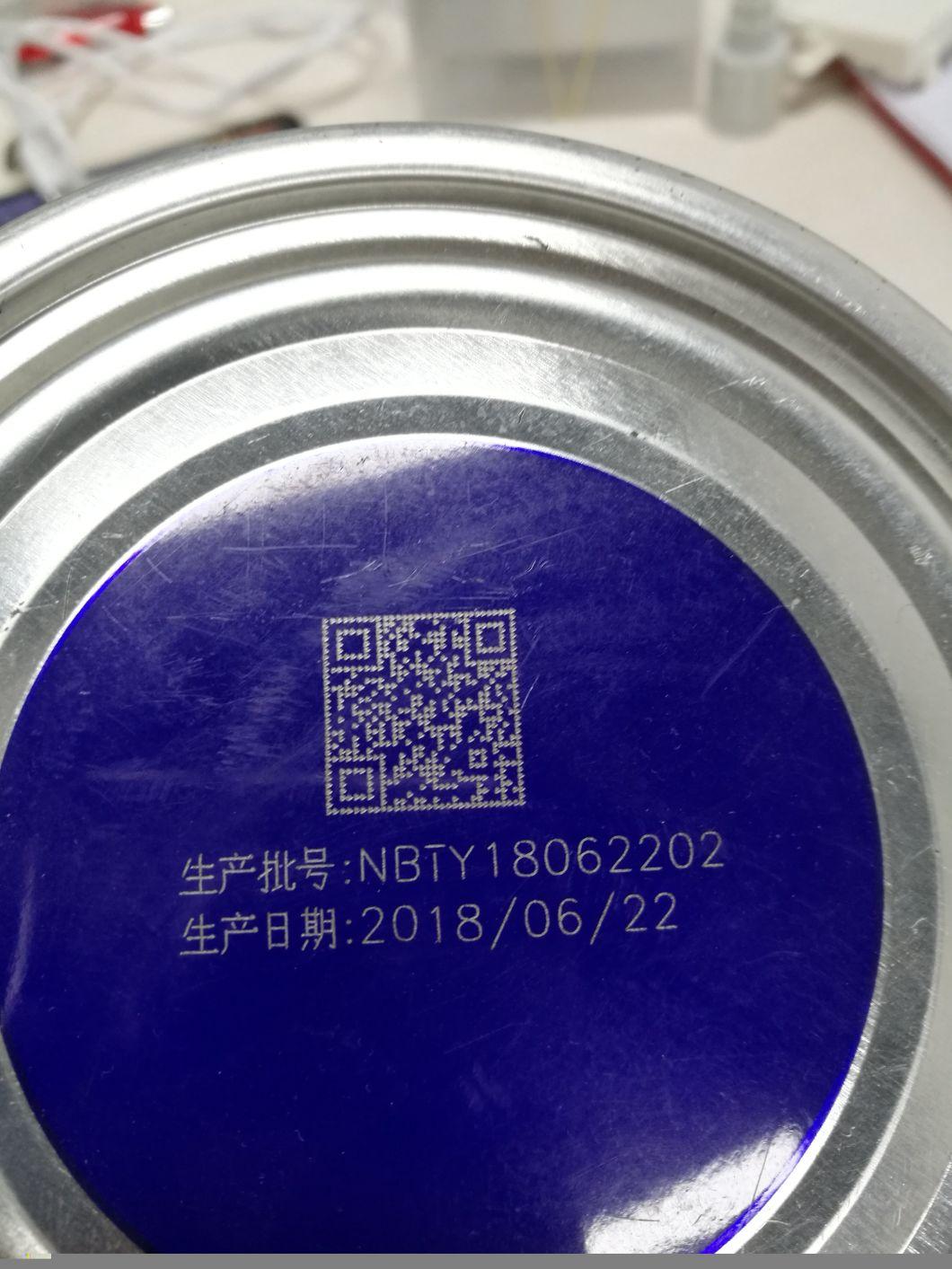

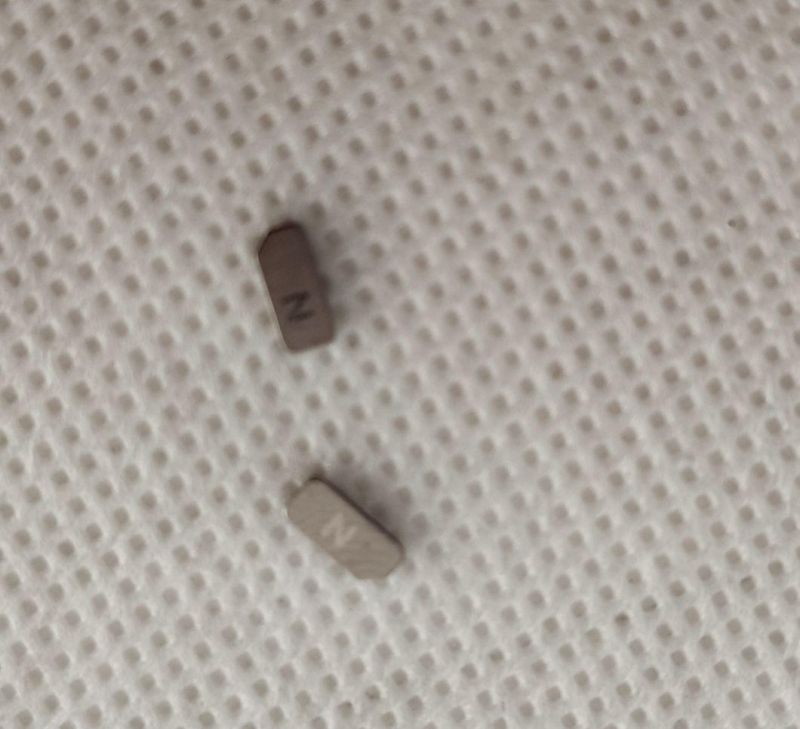

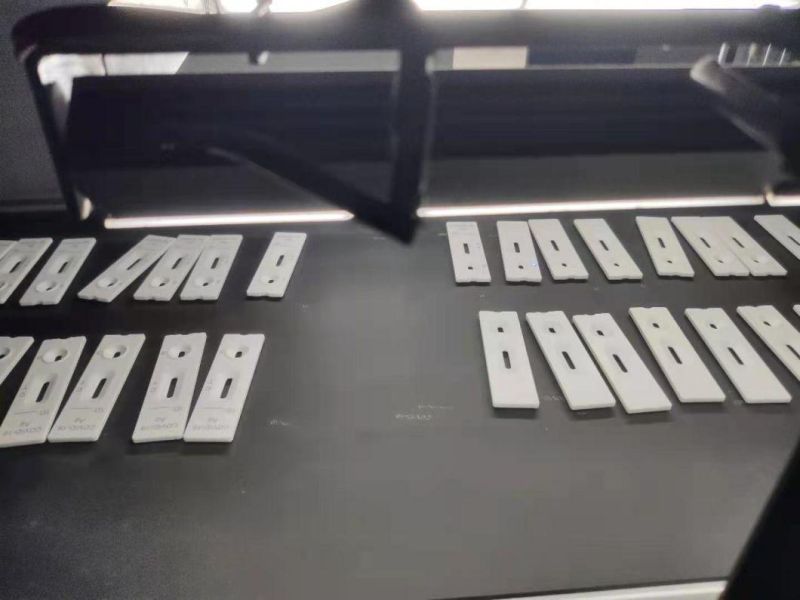

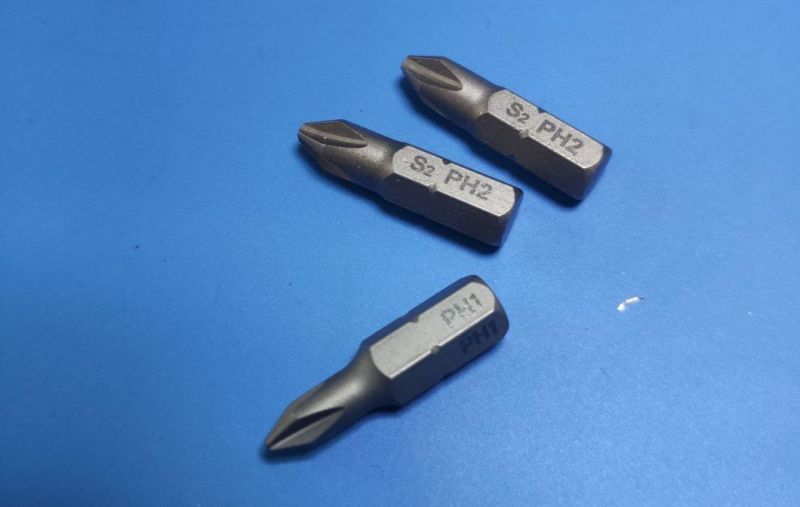

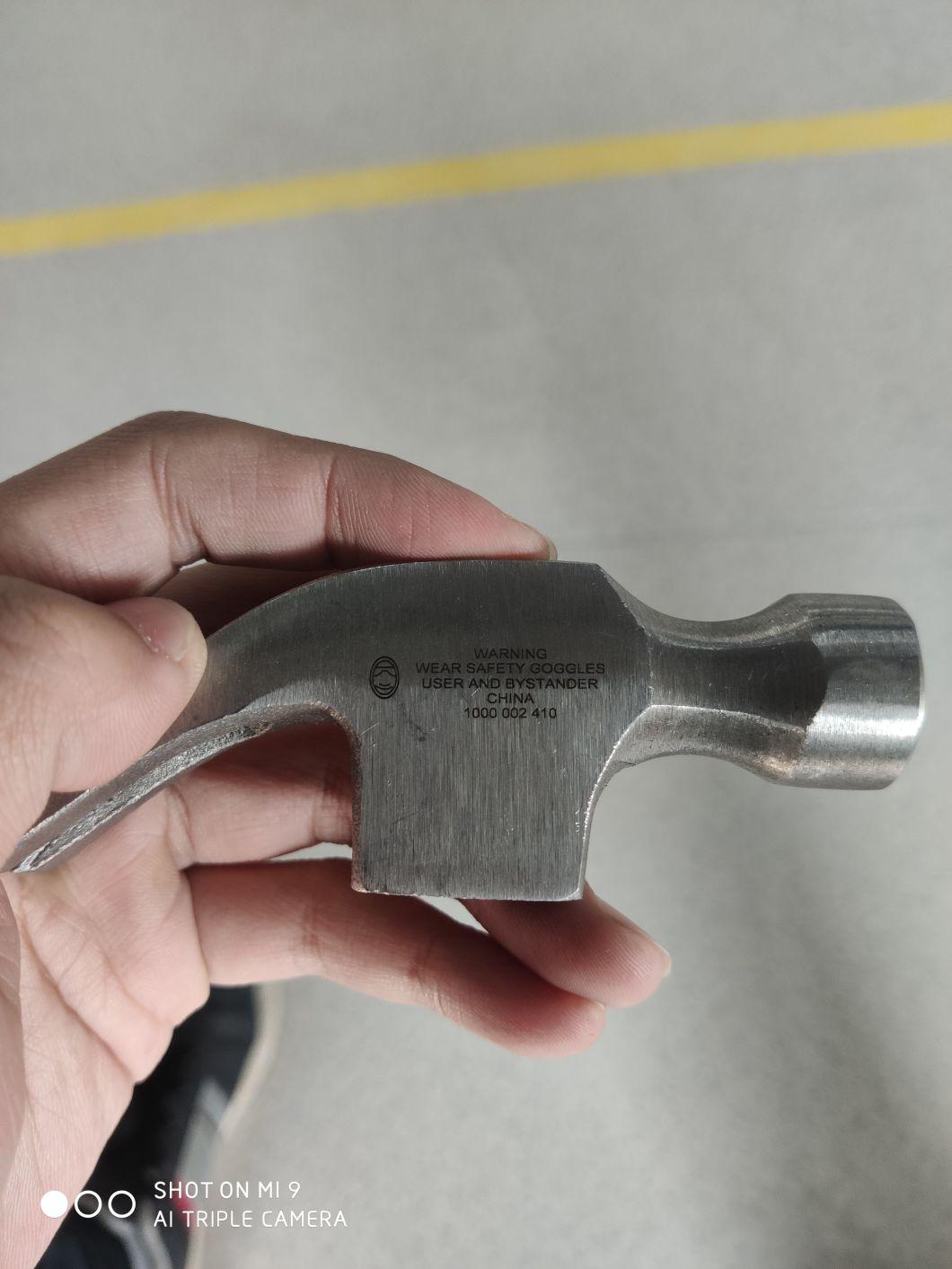

CCD Visual Fiber Laser Marking Machines used on products like below:
