• Model NO.：MT-RF100D
• Wavelength：10600nm
• Repetition Precision：0.01mm
• Marking Depth：≤5mm
• Marking Speed：<8000mm,S
• Operating Temperature：10ºC-30ºC
• Warranty：1 Year
• Beam Quality：<2m2
• Laser Pulse Frequency：20-200kHz
• Gross Power：<1250W
• Power Source：AC110V,220V± 10%, 50,60Hz
• Transport Package：Standard Export Wooden Box
• Trademark：MACTRON
• Origin：Guangdong, China
• Production Capacity：200sets,Month

Basic Info.

Model NO. MT-RF100D Wavelength 10600nm Repetition Precision 0.01mm Marking Depth ≤5mm Marking Speed <8000mm/S Operating Temperature 10ºC-30ºC Warranty 1 Year Beam Quality <2m2 Laser Pulse Frequency 20-200kHz Gross Power <1250W Power Source AC110V/220V± 10%, 50/60Hz Transport Package Standard Export Wooden Box Trademark MACTRON Origin Guangdong, China Production Capacity 200sets/Month

Product Description

Company Information
Dongguan Mactron Technology CO.,Ltd is a new & hi-tech enterprise ,located in international famous manufacturing city--Dongguan,integrated the laser,precision machinery,CNC and modern management,specializing in developing ,manufacturing and selling of industrial laser equipment and customized automation device.


Mactron's mainly product is including:
Laser Cutting Machine, Laser Engraving Machine, Laser Marking Machine, Mini Laser Engraver, CNC Laser Cutter, YAG Laser System, Diode Pump Laser Equipment, Co2 Laser Tube, Laser Focusing Lens, Laser Reflector Mirror, Laser Power Supply, Laser Cooler Unit, Laser Scanner Head, Laser Control System, Laser Cutting Head, Beam Expander, Red Pointer, Krypton Lamp and accessories etc.

Mactron Technology's business tenet is "Do Honest Business ".
Mactron Technology's managerial spirit: "Solidarity, Exertion, Truthfulness, Innovation"


Certifications

Product Description

Co2 3 Axis Dynamic Focusing Laser Marking Engraving Machine is equipped with RF laser tube imported from America. The RF Co2 Laser can work in large power with high frequency and long operating life. It has 100W and 150W two power options.

Equipped with hi-tech dynamic focusing scanning mirror and control card, the 3 Axis Dynamic Laser Machine system is excellent in the aspects of algorithm optimization, high speed of marking and cutting, and other powerful functions. It is specially designed for the laser scanning with a tiny light spot, large working range, and high flexibility.

Furthermore, this 3 Axis Co2 laser marking equipment is characterized by high strength in use, compact construction, dust-proof, convenient and accurate installation, strong anti-jamming ability, etc., which can ensure the stability of the system under long-hours working conditions.




Model	MT-RF100D
Laser Power	100W
Laser Type	RF CO2 Laser Generator Imported From U.S.A or Germany
Wavelength	10.6um
Processing Area	400*400MM,600*600MM(Standard)800*800MM 1000*1000MM,1200*1200MM(Optional)
Marking Speed	≤8000mm/s
Marking Depth	≤2MM
Repetition Precision	0.01MM
Min.Line Width	0.01MM
Min.Character	0.2MM
Cooling Mode	Water Cooling
Graphic Formats Supported	PLT,DST,AI,DXF,BMP,JPG,CAD,CDR,DWG
Power Source	AC110V/220V± 10%, 50/60HZ
Gross Power	<6000W
Warranty	1 Year
Operating temperature	10ºC-35ºC
Humidity	5% to 85% (Free of Condensed Water )

Product Details



Product Sample Display

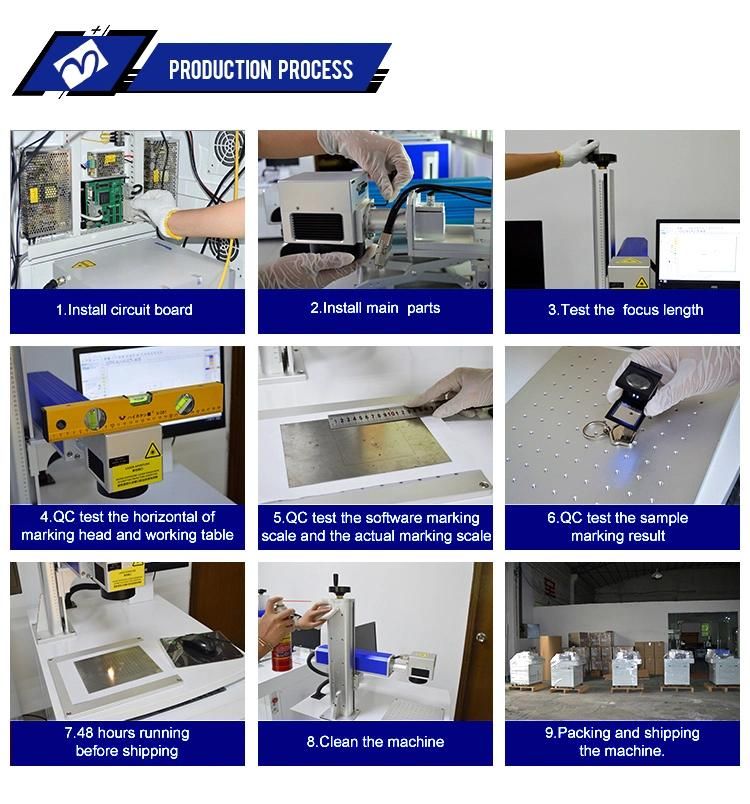

Production Process


Packaging & Shipping


FAQ
1)What are the primary products of your company?
Our primary products include laser marking machine, laser engraving machine, laser cutting machine, laser welding machine, and laser spare parts.

2) Where is your fiber laser equipment applied to?
Our Fiber Laser Marking Machine is suitable for all kind of metal, industrial plastic, electroplates, metal-coated materials, rubbers, ceramics and so on.

3) What are the advantages of your laser equipment?
Our laser equipment has several advantages.
High quality and precision are the featured properties of our laser marking machine. Our laser marking machine employs the domestic leading "Smart Engraving" technology, which could clearly engrave 2mm characters and 1mm letters on the materials.

4) How to do control the quality when you produce laser equipment?
We introduce international advanced production technology, and strictly implement a series of measures of quality and cost control to ensure the quality of laser marking machine. In addition, all raw materials are strictly inspected in accordance with international standards before they are put into production.

5) Which countries are your laser machinery sold to?
Our laser marking machine sell all over the world, such as United States, Mexico, Brazil, Australia, Singapore, Saudi Arabia, Turkey, India, Italy, UK, Germany, Poland, Spain, Romania and many other countries.

6) How long is the delivery time?
The laser marking machine will be delivered to you within 1-2 weeks after the order is confirmed.

7) What certificate has your company got?
All of our laser marking machine with CE, ISO, SGS
