• Model NO.：FLC9060
• Cooling System：Water Cooling
• Technical Class：Continuous Wave Laser
• Applicable Material：Nonmetal
• Structure Type：Gantry Type
• Laser Classification：Gaseous Laser
• Laser Technology：Laser Control Fault Cutting
• Laser Type：CO2
• Working Area：900*600mm
• Laser Power：40W-100W
• Transport Package：Plywood
• Specification：FLC9060
• Trademark：FLYING
• Origin：China
• HS Code：8456100090
• Production Capacity：100PC,Month
• Package size per unit product：168.00cm * 112.00cm * 128.00cm
• Gross weight per unit product：300.000kg

Basic Info.

Model NO. FLC9060 Cooling System Water Cooling Technical Class Continuous Wave Laser Applicable Material Nonmetal Structure Type Gantry Type Laser Classification Gaseous Laser Laser Technology Laser Control Fault Cutting Laser Type CO2 Working Area 900*600mm Laser Power 40W-100W Transport Package Plywood Specification FLC9060 Trademark FLYING Origin China HS Code 8456100090 Production Capacity 100PC/Month

Packaging & Delivery

Package size per unit product 168.00cm * 112.00cm * 128.00cm Gross weight per unit product 300.000kg

Product Description

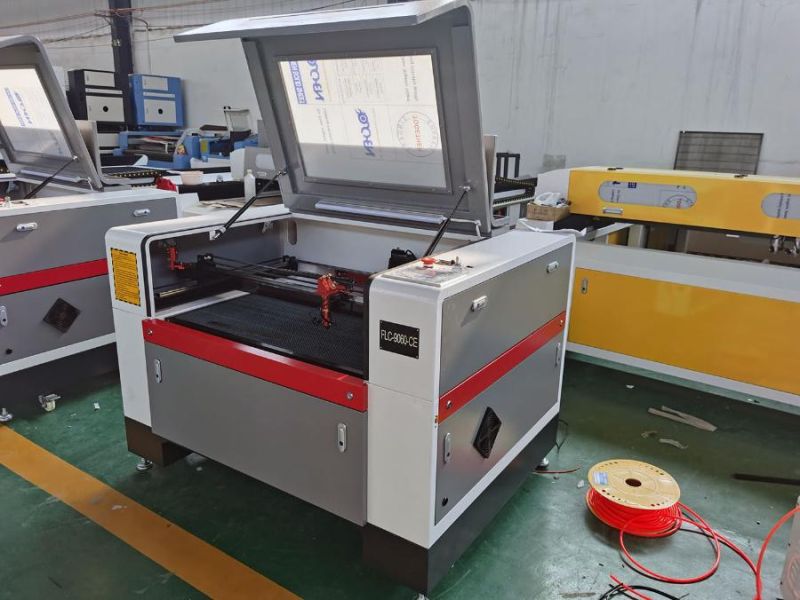

Co2 Laser engraver cutter


Features:
   This model adopted DSP controlling system and ensure the working stability and reliability. The latest Software can support AutoCAD, coreIDRAW CAD, CAM and other graphical software, and it can output pictures directly. The USB data interface support heat paly&plug, quick data transitting without taking up computer resource. LCD Display is easy for user to operate.

Applicable Industries:
Suitable for industries such as billboards, artistic gifts, crystal ornaments, paper cut engraving, bamboo embossment, printing, garments and leather industries, embroidery, interior decoration, frame fabrication and etc

Applicable Materials:
Non-metal materials such as double color boards, acrylic, glass, wood planks, bamboo, rubber, plastic, garments, paper, leather, marble, granite, tiles and etc...

Specifications:

Model	FLC9060
Laser-type	10.6um CO2 glass laser tube w/ water-cooling
Laser power	60W-300W
Working area	900 x600mm
Max Engraving speed:	0-60, 000mm/min
Max cutting speed	0-36, 000mm/min
Laser output control	1-100% software setting
Location precision	Less than 0.01mm
Highest scanning precision	2500DPI
Operating temperature	0 - 45
Operating humidity	5- 95% non-condensing
Minimum shaping character	English 1.0 x 1.0mm
Graphic format supported	HPGL, BMP, PLT, DST, DXF, and AI ...
Driving system	Stepper(Optional: Servo)
Cooling mode	Water-cooling and protection system
Auxiliary equipments	Exhaust-fans, air-exhaust pipe, air pump, water pump
Controller	DSP
Compatible Software	CorelDraw, AutoCAD, Photoshop, TAJIMA
Slope Engraving	Can be easily designed within the "Grade Engrave" function.
Color separation	Uses color property to set function, speed, and laser power

Advantages:
1) Materials can extend through the front and rear doors to allow for a larger work product.
2) Red-DOT pointer to help you see the expected laser beam position.
3) Fully enclosed laser case yields a class I (user friendly) laser product.
4) Wifi receiver is more convenient for the operator to transmit the files to the machine.
5) Top-brand laser tube have perfect laser beam, and much longer lifespan (more than 10000 working hours).
6) The Y-axis transmission structure adopts the intermediate design, and the force on both sides is more balanced; the deceleration design greatly enhances the output torque and the power is more powerful; the design of the coupling makes the verticality of the horizontal and vertical axes more perfect and precise.
8) New advantaged laser power souce with voltage regulator functions.

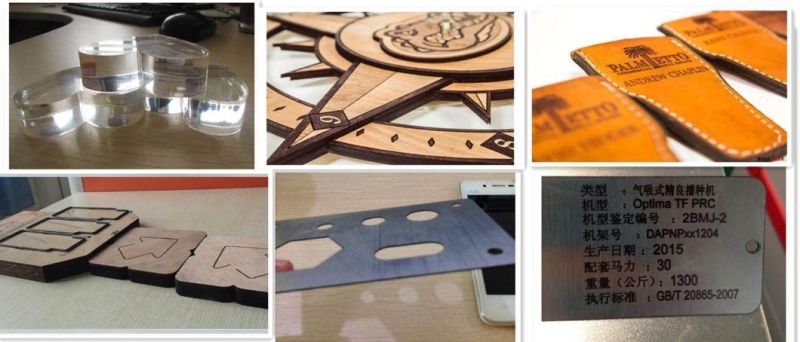

Samples:
