Laser Machine for Wood MDF Plywood Acrylic Cutting Flc9060
Shandong Ruby CNC Equipment Co., Ltd.- Application:Leather Industry, Carpentry, Printing & Packaging, Crafts Industr, Advertising Industry
- Cooling System:Water Cooling
- Technical Class:Continuous Wave Laser
- Automatic Grade:Automatic
- Applicable Material:Nonmetal
- Type:Oscillating Mirror
Base Info
- Model NO.:FLC9060
- Laser Classification:Gaseous Laser
- Engraving Method:Vector Engraving
- Certification:Ce
- Usage:Wood, Acrylic, Leather, Paper, Rubber, Marble.
- Working Area:900*600mm,1300*2500mm
- Laser Power:60W-150W
- Transport Package:Plywood
- Specification:1390
- Trademark:FLYING
- Origin:China
- HS Code:8456100090
- Production Capacity:100PC,Month
Description
Basic Info.
Model NO. FLC9060 Laser Classification Gaseous Laser Engraving Method Vector Engraving Certification Ce Usage Wood, Acrylic, Leather, Paper, Rubber, Marble. Working Area 900*600mm/1300*2500mm Laser Power 60W-150W Transport Package Plywood Specification 1390 Trademark FLYING Origin China HS Code 8456100090 Production Capacity 100PC/MonthProduct Description
laser machine for wood mdf plywood acrylic cutting FLC9060
Features:
This laser machine can engrave and cut, thus it is applicable for various industries. It belongs to an economical laser equipment. The whole laser machine has stable performance and easy-operation system, coming with professional software. So it can realize high efficiency and good quality processing effect for various industries.
Applicable Industries:
Suitable for industries such as billboards, artistic gifts, crystal ornaments, paper cut engraving, bamboo embossment, printing, garments and leather industries, embroidery, interior decoration and frame fabrication and etc.
Applicable Materials:
Double color boards, acrylic, glass, wood planks, MDF, plastc, rubber, foam, garments, paper, leather, marble, granite and tiles, and etc...
Extra Features:
1) Materials can extend through the front and rear doors to allow for a larger work product.
2) Red-DOT pointer to help you see the expected laser beam position.
3) Fully enclosed laser case yields a class I (user friendly) laser product.
4) Wifi receiver is more convenient for the operator to transmit the files to the machine.
5) The Y-axis transmission structure adopts the intermediate design, and the force on both sides is more balanced; the deceleration design greatly enhances the output torque and the power is more powerful; the design of the coupling makes the verticality of the horizontal and vertical axes more perfect and precise.


Specifications:
Model | FLC9060 |
Laser-type | 10.6um CO2 glass laser tube w/ water-cooling |
Laser power | 60w-150w |
Working area | 900*600mm |
Max Engraving speed: | 0-64, 000mm/min |
Max cutting speed | 0-30, 000mm/min |
Laser output control | 1-100% software setting |
Location precision | Less than 0.01mm |
Highest scanning precision | 2500DPI |
Operating temperature | 0 - 45 |
Operating humidity | 5- 95% non-condensing |
Minimum shaping character | English 1.0 x 1.0mm |
Graphic format supported | HPGL, JPEG, BMP, PLT, DST, DXF, and AI ... |
Driving system | Stepper(Optional: Servo) |
Cooling mode | Water-cooling and protection system |
Auxiliary equipments | Exhaust-fans, air-exhaust pipe, air pump, chiller |
Controller | RD or TROCEN |
Compatible Software | CorelDraw, AutoCAD, Photoshop, TAJIMA |
Slope Engraving | Can be easily designed within the "Grade Engrave" function. |
Color separation | Uses color property to set function, speed, and laser power |

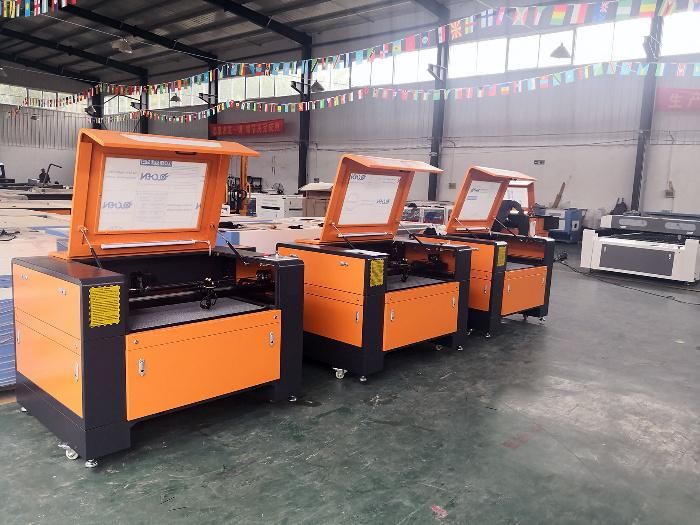

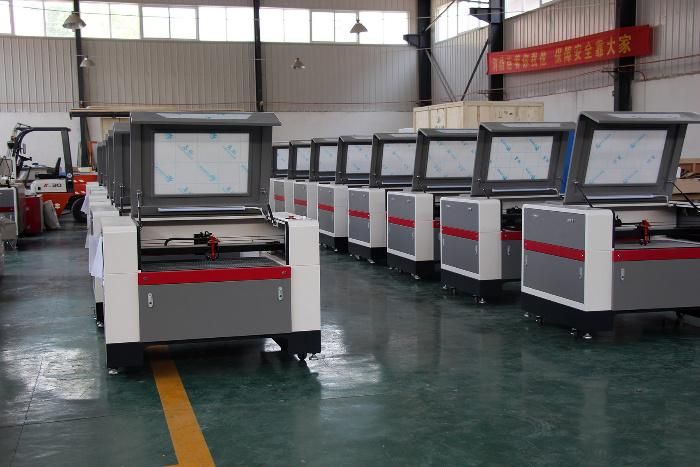

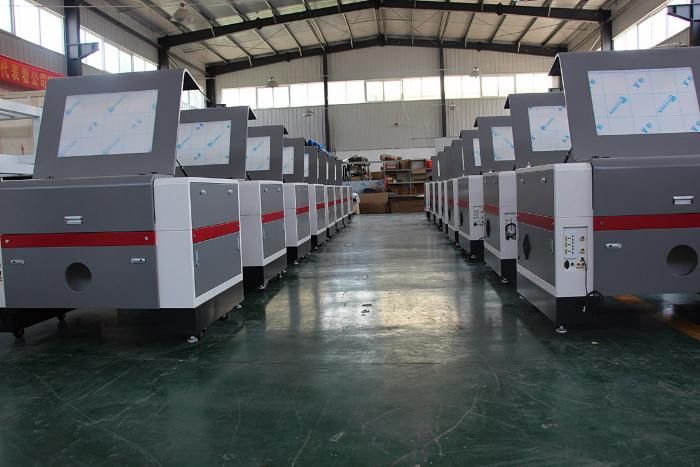

Machine photos :

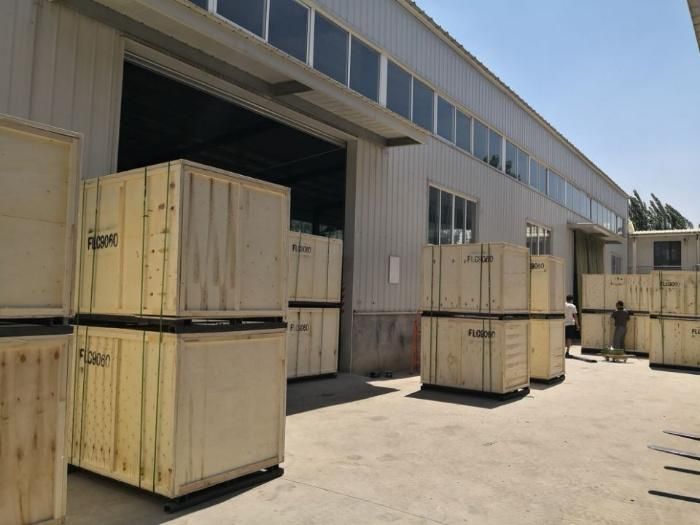

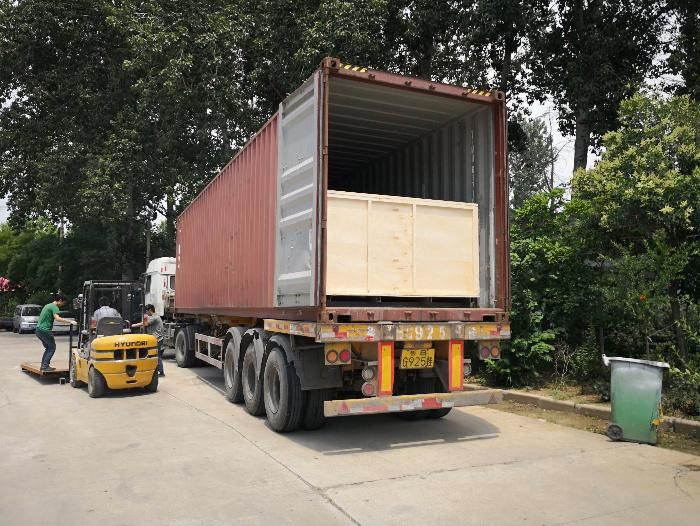

Packages:

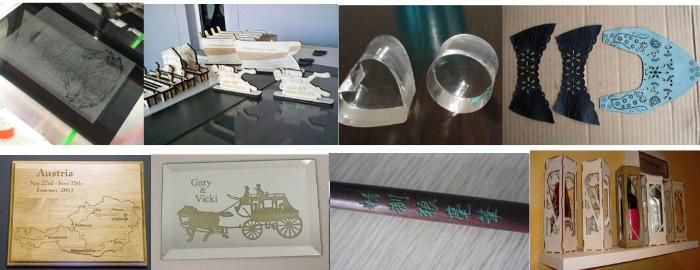

Samples Show:
