• Model NO.：FLC9060
• Cooling System：Water Cooling
• Technical Class：Continuous Wave Laser
• Applicable Material：Nonmetal
• Structure Type：Gantry Type
• Laser Classification：Gaseous Laser
• Laser Technology：Laser Control Fault Cutting
• Working Area：90*60cm
• Laser Power：60W,90W,100W,130W
• Transport Package：Plywood
• Specification：9060
• Trademark：FLYING
• Origin：China
• Production Capacity：100PC,Month
• Package size per unit product：168.00cm * 112.00cm * 128.00cm
• Gross weight per unit product：300.000kg

Basic Info.

Model NO. FLC9060 Cooling System Water Cooling Technical Class Continuous Wave Laser Applicable Material Nonmetal Structure Type Gantry Type Laser Classification Gaseous Laser Laser Technology Laser Control Fault Cutting Working Area 90*60cm Laser Power 60W/90W/100W/130W Transport Package Plywood Specification 9060 Trademark FLYING Origin China Production Capacity 100PC/Month

Packaging & Delivery

Package size per unit product 168.00cm * 112.00cm * 128.00cm Gross weight per unit product 300.000kg

Product Description

FLC9060 Acrylic Wood Laser Cutting Machine 900*600mm



Features:
   This laser machine can engrave and cut, thus it is applicable for various industries. Also, with front and back openings it is more convenient to cut long objects. It is a greatly economical piece of equipment. The whole machine has stable performance and easy-operation system, coming with professional software. So it can realize high efficiency and good quality processing effect for various industries.

Applicable Industries:
 Suitable for industries such as billboards, artistic gifts, crystal ornaments, paper cut engraving, bamboo embossment, printing, garments and leather industries, embroidery, interior decoration and frame fabrication and etc.

Applicable Materials:
  Double color boards, acrylic, glass, wood planks, MDF, plastc, rubber, foam, garments, paper, leather, marble, granite and tiles, and etc...

 Extra Features:
1) Materials can extend through the front and rear doors to allow for a larger work product.
2) Red-DOT pointer to help you see the expected laser beam position.
3) Fully enclosed laser case yields a class I (user friendly) laser product.
4) Wifi receiver is more convenient for the operator to transmit the files to the machine.
5) Top-brand laser tube have perfect laser beam, and much longer lifespan (more than 10000 working hours).
6) The Y-axis transmission structure adopts the intermediate design, and the force on both sides is more balanced; the deceleration design greatly enhances the output torque and the power is more powerful; the design of the coupling makes the verticality of the horizontal and vertical axes more perfect and precise.
8) New advantaged laser power souce with voltage regulator functions.

Specifications:

Model	FLC9060
Laser-type	10.6um CO2 glass laser tube w/ water-cooling
Laser power	60W-150w
Working area	900 x600mm (35.4 x 23.6 inches)
Max Engraving speed:	0-64, 000mm/min
Max cutting speed	0-30, 000mm/min
Laser output control	1-100% software setting
Location precision	Less than 0.01mm
Highest scanning precision	2500DPI
Operating temperature	0 - 45
Operating humidity	5- 95% non-condensing
Minimum shaping character	English 1.0 x 1.0mm
Graphic format supported	HPGL, JPEG, BMP, PLT, DST, DXF, and AI ...
Driving system	Stepper
Cooling mode	Water-cooling and protection system
Auxiliary equipments	Exhaust-fans, air-exhaust pipe, air pump, water pump
Controller	DSP
Compatible Software	CorelDraw, AutoCAD, Photoshop, TAJIMA
Slope Engraving	Can be easily designed within the "Grade Engrave" function.
Color separation	Uses color property to set function, speed, and laser power

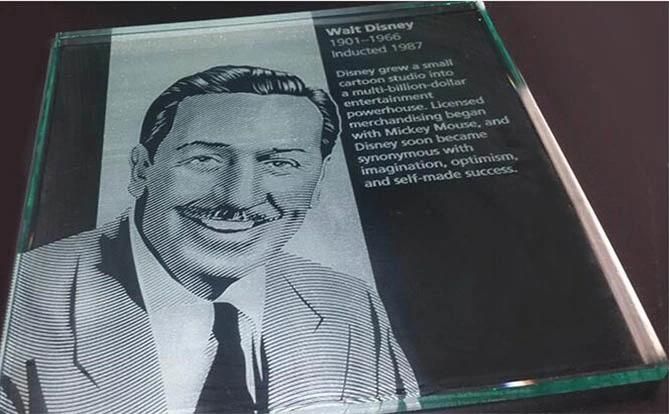

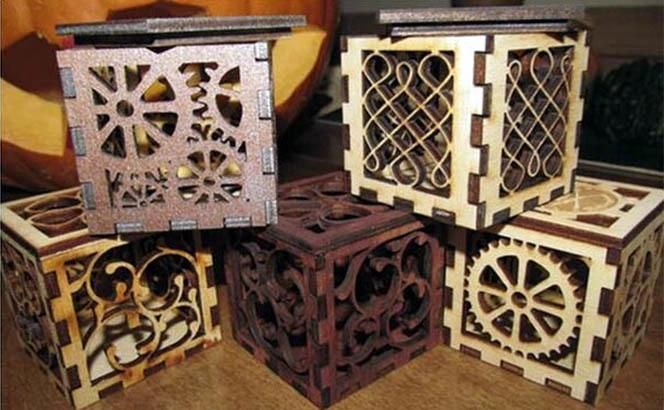

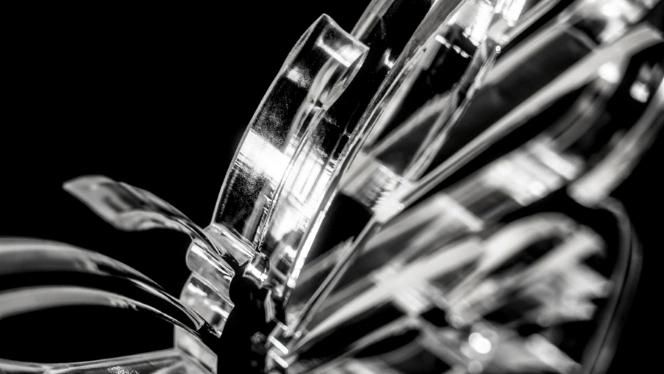

Samples Show:
