1500W Galvanized Steel Laser Welding Machine Handheld Laser Welder with Wire Feeder

Jinan Upgoal Mechanical Equipment Co., Ltd.
  • Warranty：1-2 Years
  • Application：Biomedicine, Electronic Industry, Powder Metallurgy, Manufacturing Industry

Base Info

  • Model NO.：UG-1500LW
  • Technical Class：Continuous Wave Laser
  • Control：Manual
  • Power Density：Deep Fusion Welding
  • Laser Classification：Optical Fiber Laser
  • Type：Portable Welding Machine
  • Laser Power：1500W Fiber Laser, Raycus Brand
  • Laser Wave Length：1070 Nm
  • Fiber Length：Standard10m Maximum 15m
  • Pulse Width：0.1-20ms
  • Gas Source：Argon or Nitrogen
  • Working Mode：Continuous or Modulate
  • Cooling System：Water Cooling, Industrial Water Chiller
  • Welding Speed Range：0~120 mm,S
  • Welding Thickness Recommendations：0.5-4mm
  • Scan Length：80mm
  • Laser Head：Wobble Laser Welding Head, Ql
  • Working Voltage：AC220V, Single Phase
  • Wire Feeder：for Wire Diameter 0.8,1.0,1.2,1.6mm
  • Transport Package：Plywood Case
  • Specification：1650*720*1450mm, 341KGS
  • Trademark：UPGOAL
  • Origin：China
  • HS Code：8515809090
  • Production Capacity：300set Per Month
  • Package size per unit product：176.00cm * 95.00cm * 152.00cm
  • Gross weight per unit product：320.000kg

Description

CE

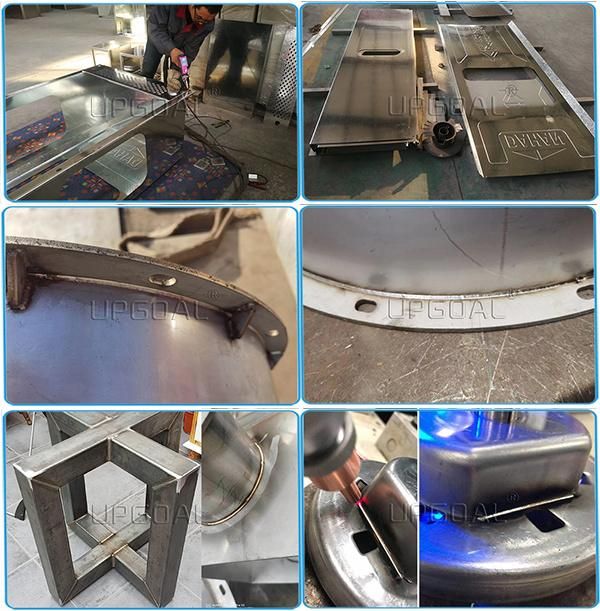

Reference Welding Cleaning Sample Photos
1500W Galvanized Steel Laser Welding Machine Handheld Laser Welder with Wire Feeder

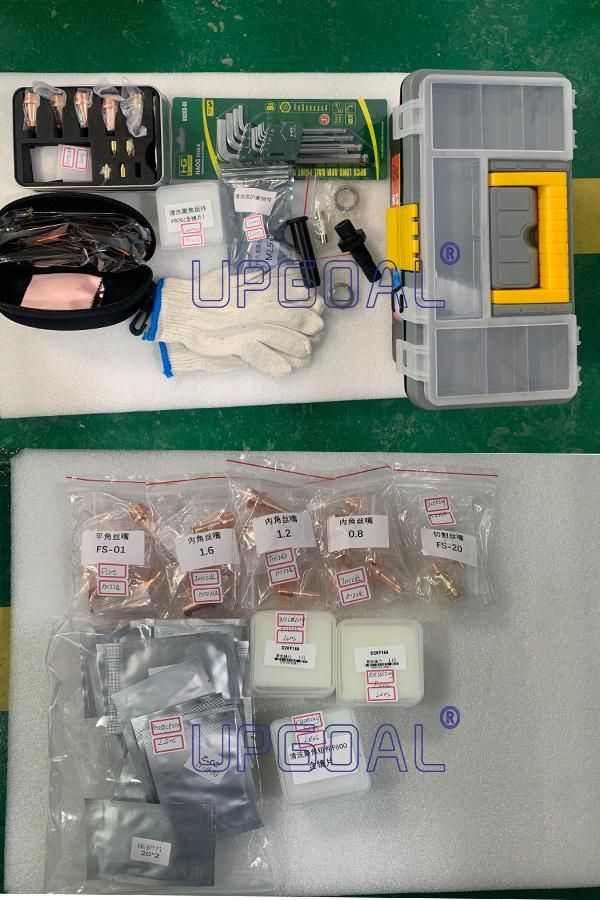

Accessories
1500W Galvanized Steel Laser Welding Machine Handheld Laser Welder with Wire Feeder
Working videos:

https://youtu.be/Nkq5yAwPYxc



 For more information, just feel free to contact us!
