• Model NO.：HSGP-4KB
• Laser Classification：Semiconductor Laser
• Engraving Method：Vector Engraving
• Model No：Hsgp-4kb
• Laser Pumping：Semiconductor Diode
• Laser Wavelength：532nm
• Brand：Holy Laser
• Max Engrave Speed：240000dots,Minutes
• Max Engrave Scope：300*400*130mm
• Resolution：800-1200dpi
• Cooling Way：Air Cooling
• Application Materials：Crystal Glass Acrylic etc
• Device Input Power：AC220V±10% 50-60Hz
• Transport Package：Flight Case
• Specification：CE, FDA, FCC, SGS, TUV
• Trademark：HOLY LASER
• Origin：Yiwu, Zhejiang, China
• HS Code：8456100090
• Production Capacity：500sets,Year

Basic Info.

Model NO. HSGP-4KB Laser Classification Semiconductor Laser Engraving Method Vector Engraving Model No Hsgp-4kb Laser Pumping Semiconductor Diode Laser Wavelength 532nm Brand Holy Laser Max Engrave Speed 240000dots/Minutes Max Engrave Scope 300*400*130mm Resolution 800-1200dpi Cooling Way Air Cooling Application Materials Crystal Glass Acrylic etc Device Input Power AC220V±10% 50-60Hz Transport Package Flight Case Specification CE, FDA, FCC, SGS, TUV Trademark HOLY LASER Origin Yiwu, Zhejiang, China HS Code 8456100090 Production Capacity 500sets/Year

Product Description

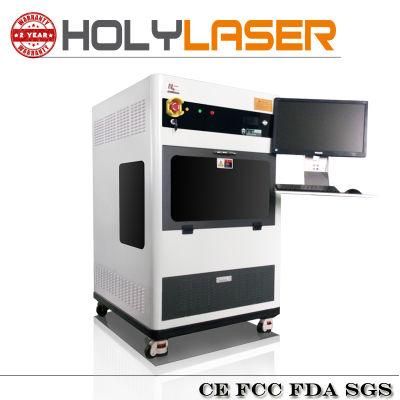

  2D/3D Laser Crystal Inner Engraving Machine HSGP series

model	HSGP-4KB
laser wavelength	532nm
laser frequency	4000HZ
max pulse energy	1.2mj
laser power	3w
Q-mode	acousto-optic-Q
pulse width	7ns
beam quality	M2<1.5
max engrave speed points	240000DOTS/MIN
max marking scope	300*400*130MM
laser head	one
resolution	800DPI-1200DPI
focal length	100MM
focus diameter	0.02mm
cooling	air cooling
application materials	crystal glass etc
device input power	AC220V±10% 50-60HZ
machine weight	260KG
machine size	70*90*102mm

Sample:



Applicable:
Our HSGP series is a high resolution laser engraving machine, is really a fine processing machine with advantages of high fidelity and high
stability, which is definitely suitable for fine model engraving processing centers, gift shops, craft shops, photo printing shops, wedding
photography, souvenirs, personalized gifts shops, etc.

Suitable material:
Our machine suitable for engraving inside of the crystal cube, common glass. Transparent acrylic, and also can marking on surface of metal
and hard plastic.

Product Description for CE approved crystal laser inner engraving machine
Our 3D laser engraving machine adopts industrial design, which can engrave one big block of crystal or several small blocks at the same time.
Its products can give person crystal-clear and fine noble visual image, that' s elaboration for your home decoration

Advantages for CE approved crystal laser inner engraving machine
1. CE, FCC, FDA approved,
2. This machine can engraving both 2D nad 3D, (depends on your design).
3. Our machine good for quantity production.
4. With newest laser, high speed.
5, Our machine also good for big size engraving as big as 300*400*130mm (also very suitable for family, friends...Etc)


Factory Profile:
Supported by the Yiwu City Government
Copperate with the Zhejiang University, update for technology
We are the manufacturer, our price are more competitive.
With 13 years history on reseaching and producing all kind of laser machine
Our company welcomes AGENTS all over the world


After-sale service:
Two year guarantee period for product quality. (man made damaged is negotiable).
Lifelong maintenance and spare parts supply.
Free design of fixtures as customers required.
Free training for machines installation and operation of the staffs.
Free samples marking of customer provided.

Warmly welcome you visit our factory! ! !
Warmly welcome you contact us directly for more information!
