• Model NO.：HY-QF01
• Max. Power：500W,750W,1000W ,1500W ,2000W
• Laser Wavelength：1024nm
• Laser Frenquency：50-5000Hz
• Cutting Precision：0.02mm,M
• Cooling Method：Water Chiller
• Power Requirement：3800V,50Hz&60Hz,30A
• Cutting Area：Customerized
• Max. Cutting Speed：<40m,Min
• Position Precision：0.05mm
• Warranty Period：2 Years
• Transmission Mode：Precision Ball Screw
• Application Material：Stainless Steel, Carbon Steel Aluminum
• Product Name：Precision Laser Cutting Machine
• Overall Power Comsumption：<=5 Kw
• Transport Package：Plywood Box
• Specification：CE FDA SGS ISO
• Trademark：HAIYI Laser
• Origin：Jiangsu,China
• HS Code：8456100010
• Production Capacity：1000sets,Year

Basic Info.

Model NO. HY-QF01 Max. Power 500W/750W/1000W /1500W /2000W Laser Wavelength 1024nm Laser Frenquency 50-5000Hz Cutting Precision 0.02mm/M Cooling Method Water Chiller Power Requirement 3800V/50Hz&60Hz/30A Cutting Area Customerized Max. Cutting Speed <40m/Min Position Precision 0.05mm Warranty Period 2 Years Transmission Mode Precision Ball Screw Application Material Stainless Steel, Carbon Steel Aluminum Product Name Precision Laser Cutting Machine Overall Power Comsumption <=5 Kw Transport Package Plywood Box Specification CE FDA SGS ISO Trademark HAIYI Laser Origin Jiangsu/China HS Code 8456100010 Production Capacity 1000sets/Year

Product Description

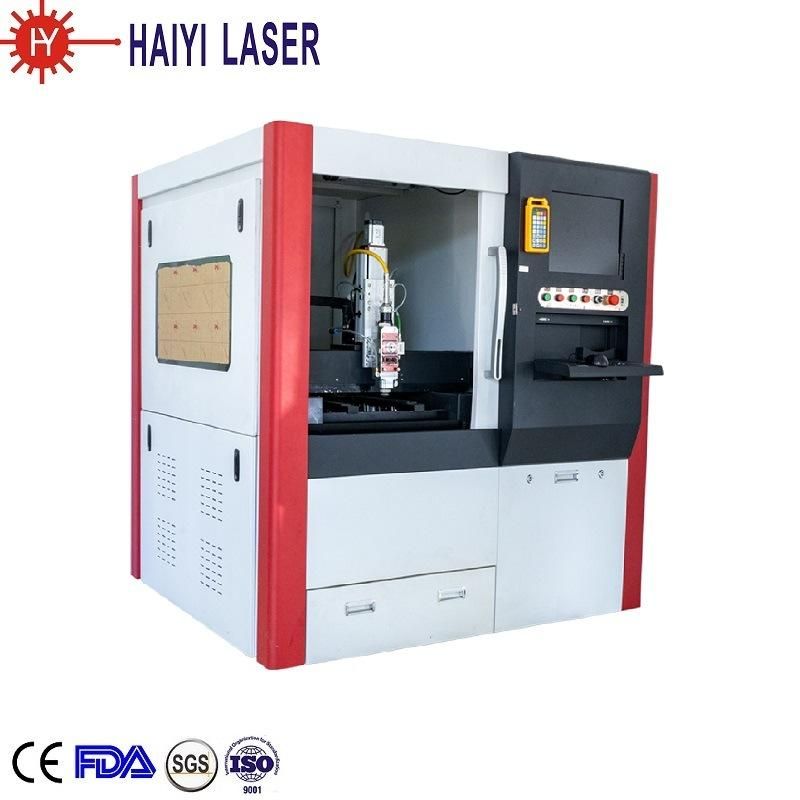

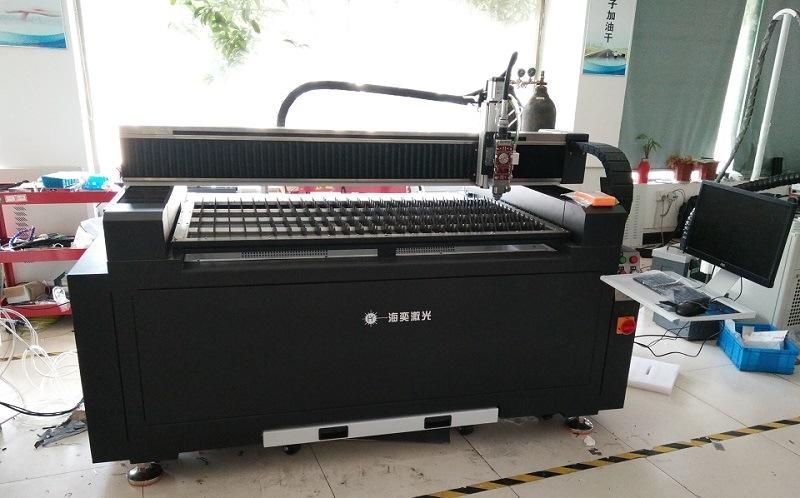

Precision Fiber Laser Cutting Machine 1.PRODUCT DESCRIPTION :

Laser cutting machine is a multi-mode continuous fibers, commonly used in sheet metal and tube continuous cutting. Because of the big focus depth, spot small, very smooth slit.

2. APPLICATION :

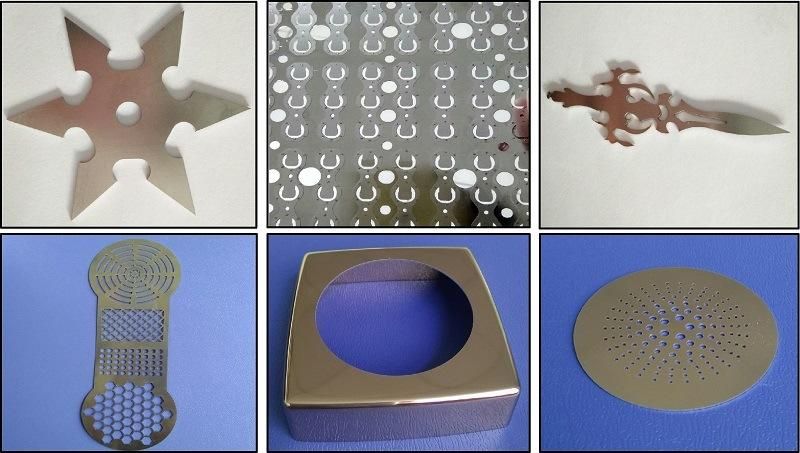

This cutting machine is fit for all metal cutting such as : stainless steel, alloy ,aluminum,zine,iron, etc, the operation desktop also can customize for a large sheet ,which is widely used in Car manufacturing ,marine industry, hardware,large equipment control,large mold manufacturing ,gift,jewelry ,and component etc,

3.SPECIFICATION :

Model	HY-QF01
Laser Power	300W/500W/750W/1000W/1500W/2000W
Laser Wavelength	1064nm
XY  precision	0.02mm
The precision XY reposition	0.02mm
X Axis	400mm
Y Axis	600mm
Z Axis	50mm
Max. Cutting speed	20m/min
Cooling system	Water chiller
CNC system	Hi800
Power Instability	<3%
Power requirement	220V/ 50&60HZ; 380V/50&60HZ (above 1500W)
Overall Power Consumption	<5KW
Max. acceleration	0.5G
Max. load	30KG
Gross Weight (Net Weight)	500KG

4.Advangtages :
A. The cutting head with intelligent auto focus, fas and sensitive reponse;
B. Non-contact cutting, trimming small heat-affected, good cutting quality of the workpiece;
C.Using special cutting software, free to design any variety of graphics or text timely processing,
    easy to operate and flexable;
D. Using the superior performance servo motor and screw drive guide structure, high precision ball
      screw , high preision ball;
H: Fully enclosed prtective rails to reduce dust pollution
5. OUR SERVICE :
1.  2 year Guarantee  for the whole machine.
2. 12 months Guarantee and free spare parts supply during this period.
3. 24 hours on line service
4. 3-7 days lead time
5. We will provide the Instruction Book, Operational manual and Training Video
6. Provide technical support for the whole lifetime on line
7. TT/Ali Trade Assurance payment
8. Shipping By air, DHL, Sea.
6.ABOUT US :







7.FAQ:
Q1. How to select the suitable machine?
Tell us your material, detail requirements by words, pictures or video.
We will recommend you the suitable model with the reasonable price.

Q2. How about the lead time?
For the standard machine, the delivery time is 3-7 days after the payment.
For the non-standard machine, the delivery time is 7-15 days after the payment.

Q3. How to install and use it?
We have the instruction Book, Operational manual and Training Video inside the machine.
We also can provide the training on line by free.

Q4. How to do it if we meet the issue during the operation?
You can send the wrong information to us by mail, we can help us solve it by mail.
phone, or video communication.

Q5. If we want to learn how to operate the machine, Can you provide it?
Yes, we can. We can provide the on line training by video. We also provide free training
course in our company.

Q6. Do you provide the onsite service if we needed?
Yes. We can provide the onsite service if you needed. But need the customer pay for the transport, hotel, food and 60USD/day.
