• Model NO.：UG-50FM
• Applicable Material：Metal and Part of Non-Metal
• Cooling System：Air Cooling
• Technical Class：Continuous Wave Laser
• Laser Wavelength：Fiber Laser
• Laser Classification：Solid Laser
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Maximum Output Laser Power：50W( Raycus Brand)
• Wave Length of Laser：1064nm
• Marking Scope：200*200mm
• Laser Sources：Fiber Module
• Field Lens：High Speed Scanning Lens
• The Minimum Focus Facula Diameter：20um
• Minimal Character：0.01mm
• Control System：Original Ez CAD Controller with USB Port
• Marking Depth：0.01-5mm( Depends on Different Materials)
• Marking Speed：Within 7000mm,S
• Rotary Table：360degree Turning, Can for 24PCS Pen Marking
• Transport Package：Plywood Case
• Specification：930*910*1620mm, 180kgs,
• Trademark：UPGOAL
• Origin：China
• HS Code：8456110090
• Production Capacity：300set Per Month
• Package size per unit product：950.00cm * 785.00cm * 160.00cm
• Gross weight per unit product：160.000kg

Features

1. Adopting famous Raycus brand 50W fiber laser to output laser, high electro-optic conversation rate, compact size, good quality velocity of light. The life time of fiber laser is more than 100,000 hours, if each year working 365 days, each day working 24 hours, then the life time is more than 10 years, are the real maintenance free, saving the later period maintenance cost.



2. Fiber laser marking machine, adopted famous SINO-GALVO SG2206 galvanometer & Wavelength high speed scanning lens has good facula mode, more thin single line, suitable for hyperfine processing, high system integration, less malfunction, are the real suitable for industrial processing area.


3. With 360degree turning rotary table, each time can for 24pcs pen marking, much improving marking efficiency.


4. Marked graph and characters is permanent , will not regression  due to friction.

5. No consumable, low power consumption, whole air cooling, no need water cooling, total machine power less than 1000W.

6. Not influenced by severe environment and bag weather, can continue working with accumulator when power failure.

7. One piece design of control cabinet and marking table, small cover area.


8. High perpendicularity of lifting device and marking table, suitable for small workpiece fine marking.

9. With Original EzCad controller, can for bar code, graph, characters, OR code, ect marking, supporting PLT, DXF, BMP such format, can useSHC, TTF word stock; System can auto encoding, auto marking serial number, batch number, and date, ect.

10. With auto focusing lifting Z-axis with double red positioning, with high precision focusing and conveneint operation

11. With high 700mm height vertical lift, can for thick material marking.

Technical Parameters


Applications

Electronic and communications products, integrated circuit chip, computer parts and electrical appliance,all kinds of precision component,  hardware tool, instrument and meter, aerospace and astronautics, jewelry, horologe, gift, office supply, trademark signs, sanitary ware, kitchen ware, plastic product, metal ornament, fastener, eyeglasses frame, , sanitary ware fittings, tableware, food, beverage and alcohol & tobacco,etc all kinds of area graph and characters's, marking, mass production, marking clear and beautiful, never disappear.



Reference Working Videos

https://youtu.be/X7_s1A1HvVY


https://youtu.be/9nKUuDKOwFw

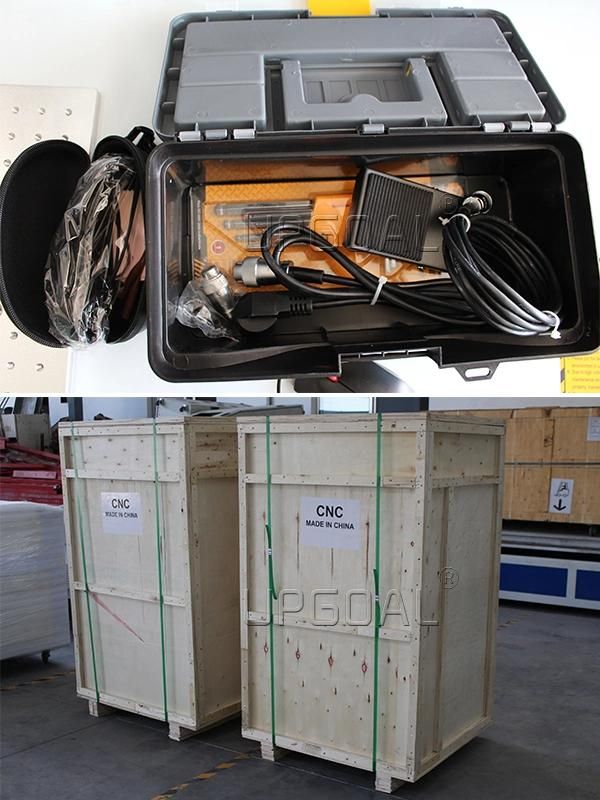

Accessories & packing

 For more information, just feel free to contact us!
