• Model NO.：FLC1325A
• Cooling System：Water Cooling
• Technical Class：Continuous Wave Laser
• Applicable Material：Metal and Non-Metal
• Structure Type：Gantry Type
• Laser Classification：Gaseous Laser
• Laser Technology：Laser Control Fault Cutting
• Certification：CE
• Type：Metal Laser Cutting Machine
• Working Area：1300*2500mm
• Laser Power：130-300W
• Cooling：Cw-5200 Chiller
• Transport Package：Plywood
• Specification：1325
• Trademark：FLYING
• Origin：China
• HS Code：84561000
• Production Capacity：100PCS,Month
• Package size per unit product：375.00cm * 216.00cm * 138.00cm
• Gross weight per unit product：960.000kg

Basic Info.

Model NO. FLC1325A Cooling System Water Cooling Technical Class Continuous Wave Laser Applicable Material Metal and Non-Metal Structure Type Gantry Type Laser Classification Gaseous Laser Laser Technology Laser Control Fault Cutting Certification CE Type Metal Laser Cutting Machine Working Area 1300*2500mm Laser Power 130-300W Cooling Cw-5200 Chiller Transport Package Plywood Specification 1325 Trademark FLYING Origin China HS Code 84561000 Production Capacity 100PCS/Month

Packaging & Delivery

Package size per unit product 375.00cm * 216.00cm * 138.00cm Gross weight per unit product 960.000kg

Product Description

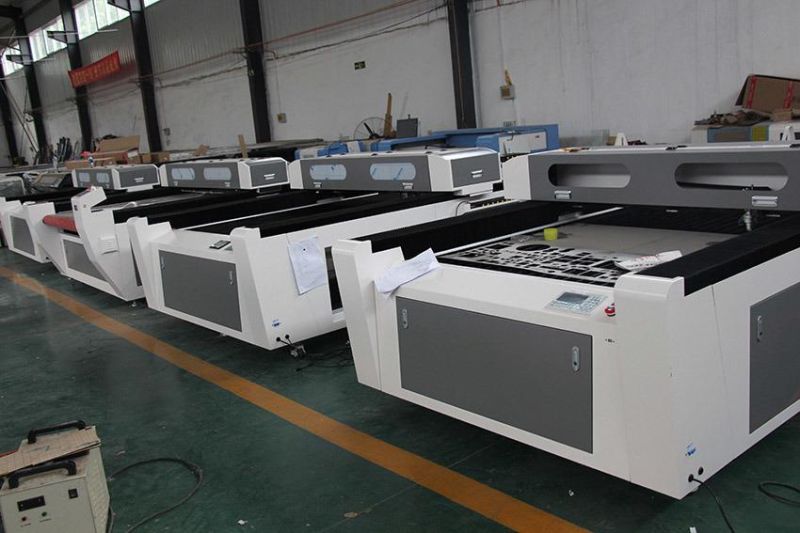

CNC cutter co2 laser cutting machine FLC1325A for metal steel wood acrylic



Features:  This machine is the newest design with 130w-300w CO2 laser tube, can cut metal such as stainless steel, carbon steel, also used for cutting non-metal materials, such as acrylic,wood,leather,etc. It is equipped with live focus laser system, if the metal sheet is not flat, the system can sense the distance from the nozzle to the metal surface and follow the surface up and down to automatically adjust the certain focus distance to keep the highest precision cutting quality.


Application materials:

Stainless steel, carbon steel, Wood, bamboo, jade, ceramic, textile, garments, crystal, plastic, Color plates, Plexiglas, glass, acrylic, wood, paper, leather, cloth, rubber, marble, granite, tiles, shells and other non-metallic materials.

Application industries:

Mainly used for advertising industries ( stainless metal and carbon steel ), sheet metal industry (carbon steel ), packaging  industry (die board )and so on .

steel industries,Plastic and rubber industry, ads/crafts/presents industry. Strumpet/machine components, leather cloth industry. Advertising logo signs, gifts, crystal ornaments, paper cutting techniques, relief, wood carving Jane. Printing plate, leather clothing, embroidery, decoration, frame making and other industries

Specifications:

Model	FLC1325 mixed laser cutting machine
Working size	1300mm*2500mm
Laser power	130w-300w
Cutting speed	0 - 50 mm/s
Reposition accuracy	±0.05mm
Working voltage	AC110- 220V±10%,50-60Hz
Consuming power	less than 1,000W
Working temperature	0 - 45°C
Working humidity	8 - 95%
Minimum letter size	English :1 x 1mm Chinese:2 x 2mm
Supported file format	BMP, HPGL, PLT, DST, DXP, and AI
Driving system	Stepper
Cooling system	CW-5000/CW6000 chiller
Other auxiliary equipment	Exhaust-fans and air-exhaust pipe
Laser control software	DSP control system   Leetro
Compatible software	CorelDraw, AutoCAD, Photoshop
Laser tube type	Sealed CO2 glass laser tube

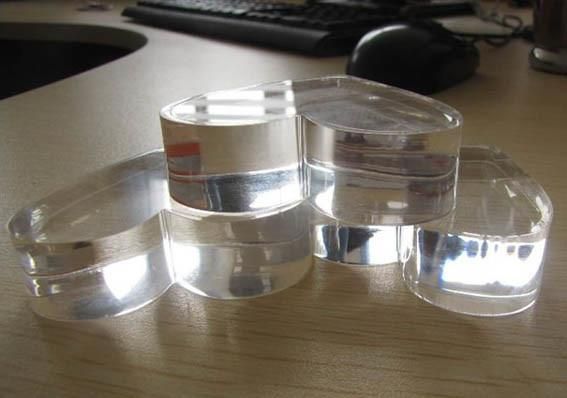

Samples Show:
