• Model NO.：LC30F
• Laser Wavelength：CO2 Laser
• Laser Classification：Gaseous Laser
• Type：CO2 Laser Marking Machine
• Marking Method：Scanning Marking
• Name：Automatic Laser Marking Machine for PVC,PPR Pipe
• Appications：PVC-U Water Pipe
• Capacity：10,30W
• System Language：English
• Operation：Touch Screen
• Marking Range：110 mm X 110 mm
• Laser Device：CO2 Laser
• Transport Package：Wooden Case with Foam
• Specification：155X55X56cm
• Trademark：CYCJET
• Origin：Shanghai
• HS Code：8456110090
• Production Capacity：300units,Month

Basic Info.

Model NO. LC30F Laser Wavelength CO2 Laser Laser Classification Gaseous Laser Type CO2 Laser Marking Machine Marking Method Scanning Marking Name Automatic Laser Marking Machine for PVC/PPR Pipe Appications PVC-U Water Pipe Capacity 10/30W System Language English Operation Touch Screen Marking Range 110 mm X 110 mm Laser Device CO2 Laser Transport Package Wooden Case with Foam Specification 155X55X56cm Trademark CYCJET Origin Shanghai HS Code 8456110090 Production Capacity 300units/Month

Product Description

Applications:

This type CO2  laser marking machine was designed for mineral/Purified Water Bottle, or other soft drink bottle filling machine line.  The optimize software drive the machine work quickly than normal industrial computer, it could print 10000 bottles one hour, it is an ideal solution for the line which need continous filling.

Also suitable for electronic components, electrical products, IT industry, auto parts, hardware tools products, precision instruments, gift accessories, medical equipment and other high-end products of precision, fine logo printing. Typical applications such as, plastic (PA66) insulation flying laser marking, metal plate laser marking, packing box body online laser marking, etc.

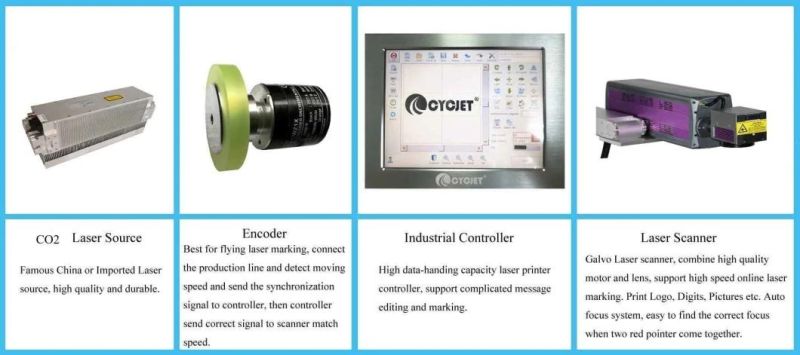

Components of machne:



Terms Of Payment:
T/T, LC

After-sale Service
1, Warranty Valid: 12 Month
2, Online or Spot Training

Package:



Details and Specifications:

Specifications

Output Power: 10W Beam quality M2: <2 Laser wavelength: 930 nm Air cooling Pulse frequency: 20 KHZ - 100 KHZ Marking range: 110 mm x 110 mm (can be customized) MarkingSpeed:7000mm/s Marking Depth: ≤0.3mm Marking Line Width: 0.01-0.2mm (based on difference material) Min character Size: 0.015mm. Repeat accuracy: + / - 0.003 mm Marking area locating: Red-light locating system. Power supply: AC 100-260 v 50/60 hz Power: ≤800W

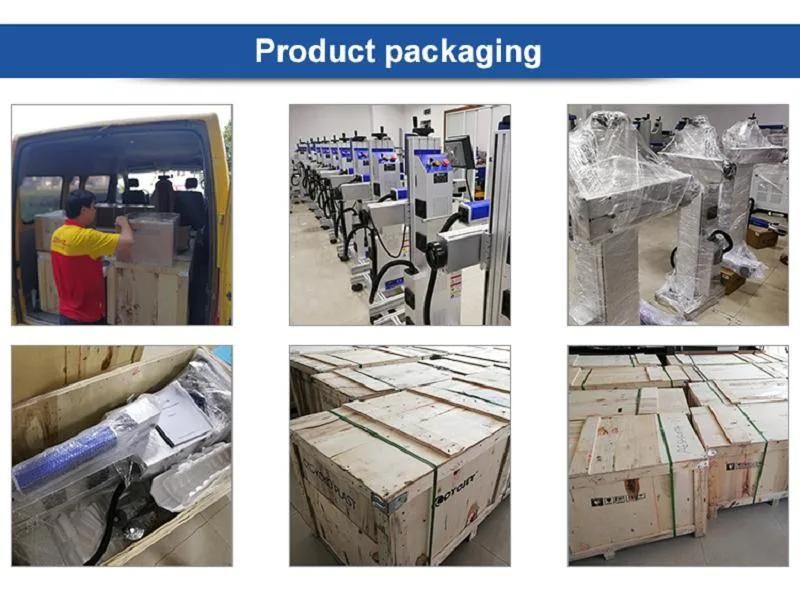

Delivery&Package

Delivery Time: 3-7 days after received Advance Payment By Vessel or Air Plane Standard Package: Wood Carton, Carton Box

About Us:
