• Model NO.：HJZ-DB-04
• Laser Wavelength：Fiber Laser
• Laser Classification：Fiber Laser
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Laser Output Power：20W, 30W, 50W
• Engraving Speed：9000mm,S
• Operating Voltage：110-240V
• Graphic Format Supported：Ai, BMP, Dst, Dwg, Dxf, Dxp
• Marking Area：110*110mm, 175*175mm, 220*220mm, 300*300mm
• Certification：CE.FDA
• Condition：New
• Application Material：0.1-2mm
• Process Material：Metal and Some Non-Metal
• Delivery Time：1-3days
• Laser Source：Raycus
• Lifespan：Over 20, 000hours
• Control Software：Ezcad Software
• Name：30W Metal Engraving Machine
• Transport Package：Standard Plywood Packing for Export
• Specification：1650X1250X1050MM
• Trademark：HJZ
• Origin：Wuhan, China
• HS Code：84561000
• Production Capacity：10sets,Month

Laser Source                           Raycus , IPG , Max  IPG SeriesPulsed, High Energy Ytterbium Fiber LasersMode of operationPulsedPolarizationrandomNominal average output power10W - 30W
10W - 50W Central emission wavelength1060-1070 nm ,Q-switched operation Output power adjustment range 10%-100%Pulse Repetition Rate* kHz20-80 kHzEnergy per pulse (PRR = 20 kHz)0.95 mJTypical beam quality, M2<1.8Output fiber delivery length3mOperating voltage220VMax. Power consumption600WNet Dimensions70*20*50cm58*22*50cm
80*38*72cm143*62*101cm143*62*101cmNet Weight44 kgs53 kgs165kgs130 kgsGross Weight60 kgs70 kgs185kgs200 kgsLaser systemScanning Speed0-7000mm/sMarking Speed0-5000mm/sMarking size110mm×110mm (F-theta 160)Spot size≤ 40 micron (F-theta 160)Cooling unitAir cooledPilot laser650nm diode laser, visible red light for marking guideContinuous working time≥16hHumidity45~85% (no condensation)Operating temperature0~40ºCControl unitsLaser Mark (English Version)

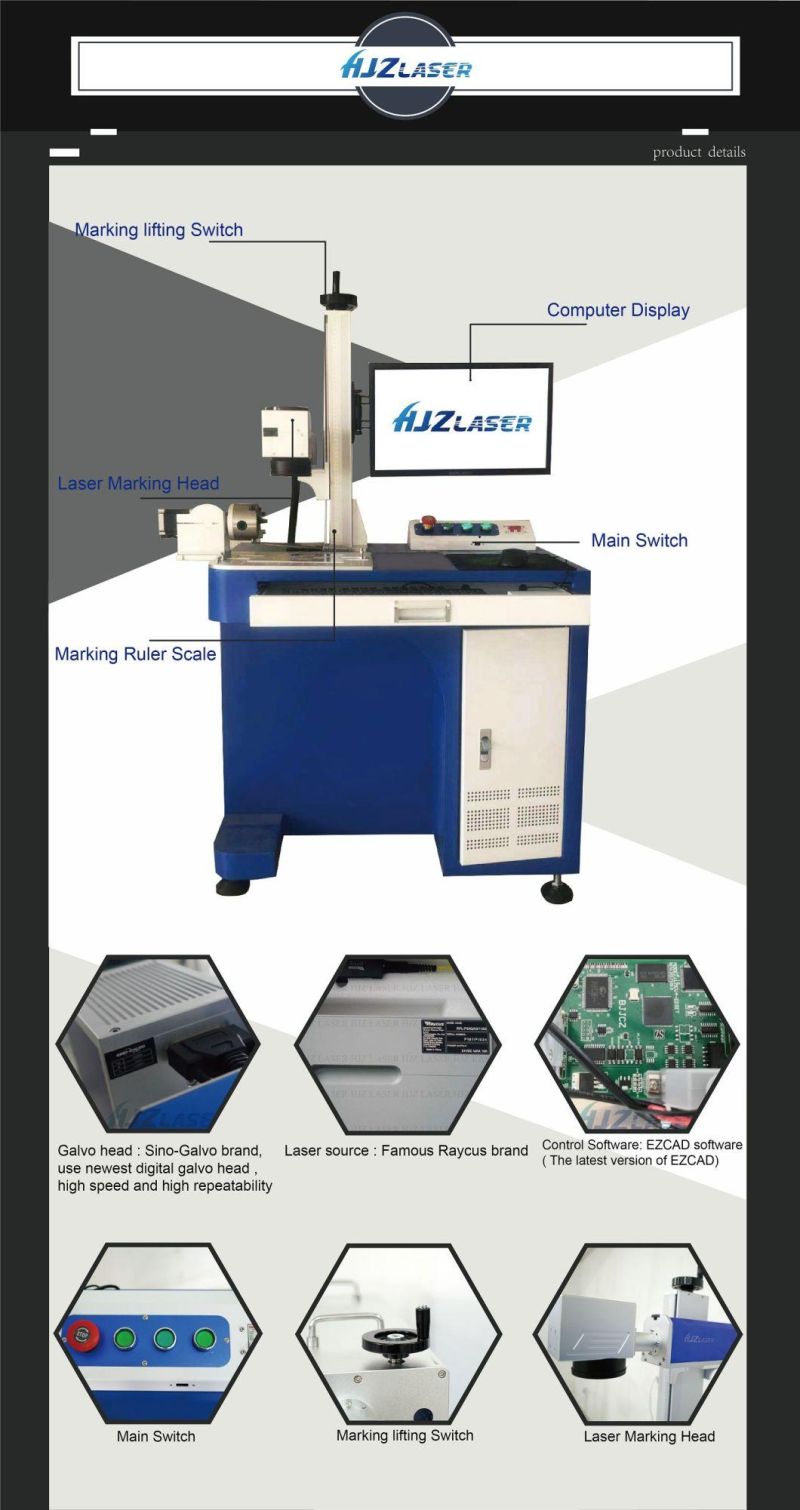

Laser marking machine descriptions :








FAQ
Q: Are you trading company or manufaurer ?
A: We are factory. And we have been in the laser field for 10 years.

Q: How long is your delivery time?
A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q: Do you provide samples? Is it free or extra ?
A: Yes, we could offer the sample for free charge, but customers should pay the courier cost.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
