• Model NO.：FLC1390
• Laser Technology：Laser Control Fault Cutting
• Working Area：1300*900mm
• Laser Power：60W-150W
• Laser Tube Type：CO2
• Delivery Time：in 7 Days
• Transport Package：Export Package
• Specification：1390
• Trademark：flying
• Origin：China
• HS Code：8456110090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. FLC1390 Laser Technology Laser Control Fault Cutting Working Area 1300*900mm Laser Power 60W-150W Laser Tube Type CO2 Delivery Time in 7 Days Transport Package Export Package Specification 1390 Trademark flying Origin China HS Code 8456110090 Production Capacity 100PCS/Month

Product Description

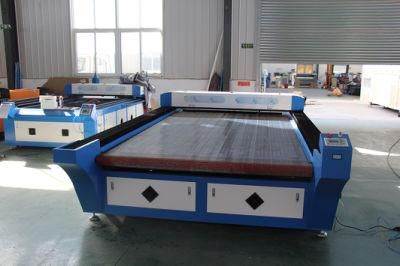

FLC1390 co2 laser cutting equipment for wood plexiglass rubber leather

Features:

Equipped with imported dual linear guide,so this laser equipment can move stably and cut the adge smoothly. Adopt three-phase motors and drivers,belt can move in fast cutting speed and high precision. With front and rear openings, Materials can extend through machine to allow for a larger work product.

Applicable Industries:
Suitable for industries such as billboards, artistic gifts, crystal ornaments, paper cut engraving, bamboo embossment, printing, garments and leather industries, embroidery, interior decoration, frame fabrication and etc.

Applicable Materials:
Non-metal materials such as double color boards, acrylic, glass, wood planks, bamboo, foam, MDF,  rubber, plastic, garments, paper, leather, marble, granite, tiles and etc...

Special Features:
1) Materials can extend through the front and rear doors to allow for a larger work product.

2) Following LED Work light to help see products during laser processing, with much longer lifespan.3) Red-Dot pointer to help you see the expected laser beam position.4) AutoFocus touch sensor to easily set the right height for best engraving and cutting.5) Parts tray for removing small parts or scrap from under the workbed.6) Fully enclosed laser case yields a class I (user friendly) laser product.
6) WIFI files transportation





Specifications:

Model	FLC1390

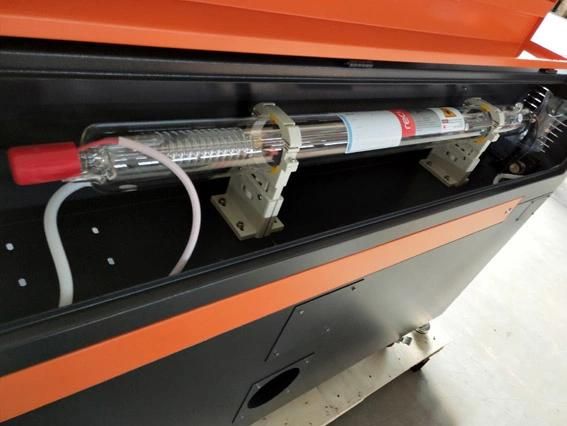

Laser-type	10.6um CO2 glass laser tube w/ water-cooling
Laser power	90W/100W/130W/150W/180w
Working area	1300 x900mm
Max Engraving speed:	0-64, 000mm/min
Max cutting speed	0-30, 000mm/min
Laser output control	1-100% software setting
Location precision	Less than 0.01mm
Highest scanning precision	2500DPI
Operating temperature	0 - 45
Operating humidity	5- 95% non-condensing
Minimum shaping character	English 1.0 x 1.0mm
Graphic format supported	HPGL, JPEG, BMP, PLT, DST, DXF, and AI ...
Driving system	Stepper(Optional: Servo)
Cooling mode	Water-cooling and protection system
Auxiliary equipments	Exhaust-fans, air-exhaust pipe, air pump, water pump

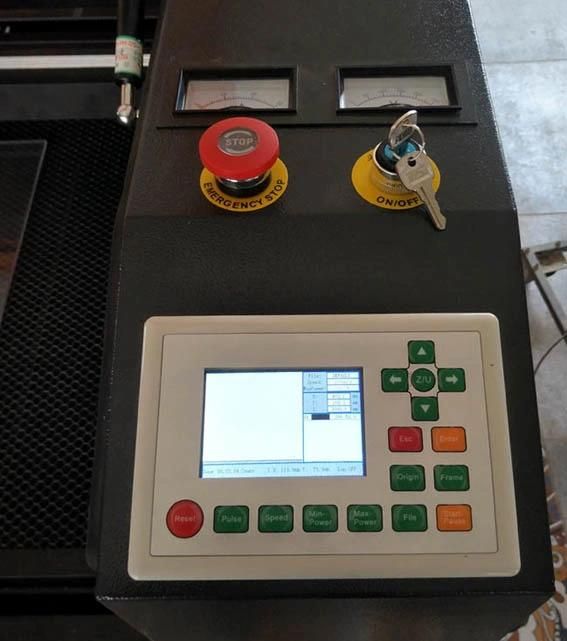

Controller	DSP
Compatible Software	CorelDraw, AutoCAD, Photoshop, TAJIMA
Slope Engraving	Can be easily designed within the "Grade Engrave" function.
Color separation	Uses color property to set function, speed, and laser power

Working Samples:

   We also have other models such as FL5030, FL6040, FL9060, FLC1390A, FLC1512, FLC1610D, FLC1325, FLC1530 and etc, feel free to contact us for detailed priced catalogue.

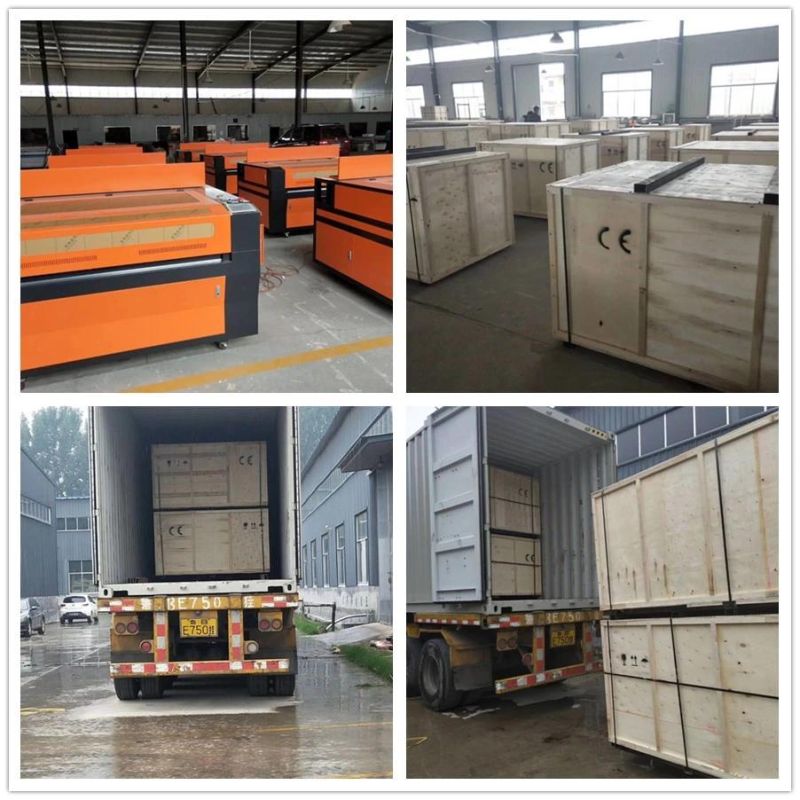

PACKAGE AND DELIVERY:
