200W 400W YAG Laser Spot Welding Machine Automatic YAG Laser Welding Machine Automatic Arm Laser Weld Process Machine Mold Repair Spot Welder

Shenzhen Lei Kang Machinery Equipment Co., Ltd.
  • Warranty：1 Year
  • Application：Biomedicine, Electronic Industry, Automotive Industry, Powder Metallurgy, Manufacturing Industry

Base Info

  • Model NO.：LK-ZW200
  • Technical Class：Pulse Laser
  • Control：Automatic
  • Power Density：Deep Fusion Welding
  • Laser Classification：YAG Laser
  • Type：Automatic Laser Welding Machine
  • Max. Laser Power：200W
  • Laser Type：YAG
  • Laser Wavelength：1064um
  • Pulse Width：0.5-20ms
  • Pulse Energy：80-120j
  • Pulse Frequency：0-50Hz
  • Laser Welding Depth：0.1-0.5mm
  • Laser Welding Area：200*200mm
  • Adjusting Range of Light Spot：1.8mm
  • Cooling Method：Water Cooling
  • Transport Package：Wooden Case
  • Specification：1300*1100*1300mm
  • Trademark：LK-Laser
  • Origin：Shenzhen
  • HS Code：8515809090
  • Production Capacity：100000sets,Year
  • Package size per unit product：96.00cm * 120.00cm * 168.00cm
  • Gross weight per unit product：380.000kg

Description

Basic Info.

Model NO. LK-ZW200 Technical Class Pulse Laser Control Automatic Power Density Deep Fusion Welding Laser Classification YAG Laser Type Automatic Laser Welding Machine Max. Laser Power 200W Laser Type YAG Laser Wavelength 1064um Pulse Width 0.5-20ms Pulse Energy 80-120j Pulse Frequency 0-50Hz Laser Welding Depth 0.1-0.5mm Laser Welding Area 200*200mm Adjusting Range of Light Spot 1.8mm Cooling Method Water Cooling Transport Package Wooden Case Specification 1300*1100*1300mm Trademark LK-Laser Origin Shenzhen HS Code 8515809090 Production Capacity 100000sets/Year

Packaging & Delivery

Package size per unit product 96.00cm * 120.00cm * 168.00cm Gross weight per unit product 380.000kg

Product Description

200W 400W YAG Mold Repair Soldering Laser Welding Machine Automatic Arm Process
Laser Spot Welding Machine YAG Laser Welder
200W 400W YAG Laser Spot Welding Machine Automatic YAG Laser Welding Machine Automatic Arm Laser Weld Process Machine Mold Repair Spot Welder200W 400W YAG Laser Spot Welding Machine Automatic YAG Laser Welding Machine Automatic Arm Laser Weld Process Machine Mold Repair Spot Welder

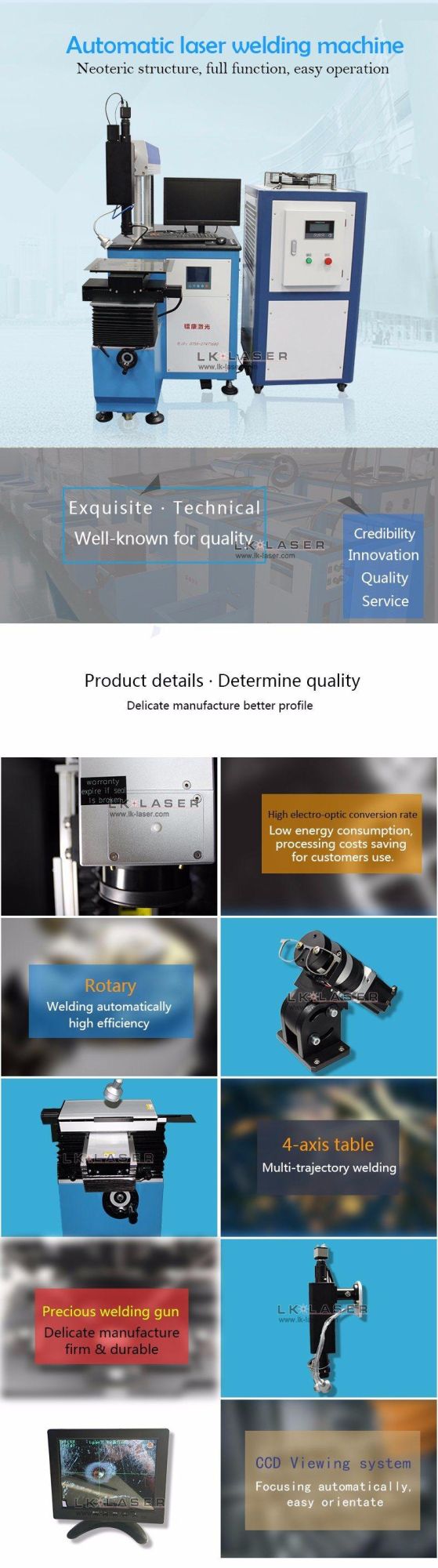

Product Features

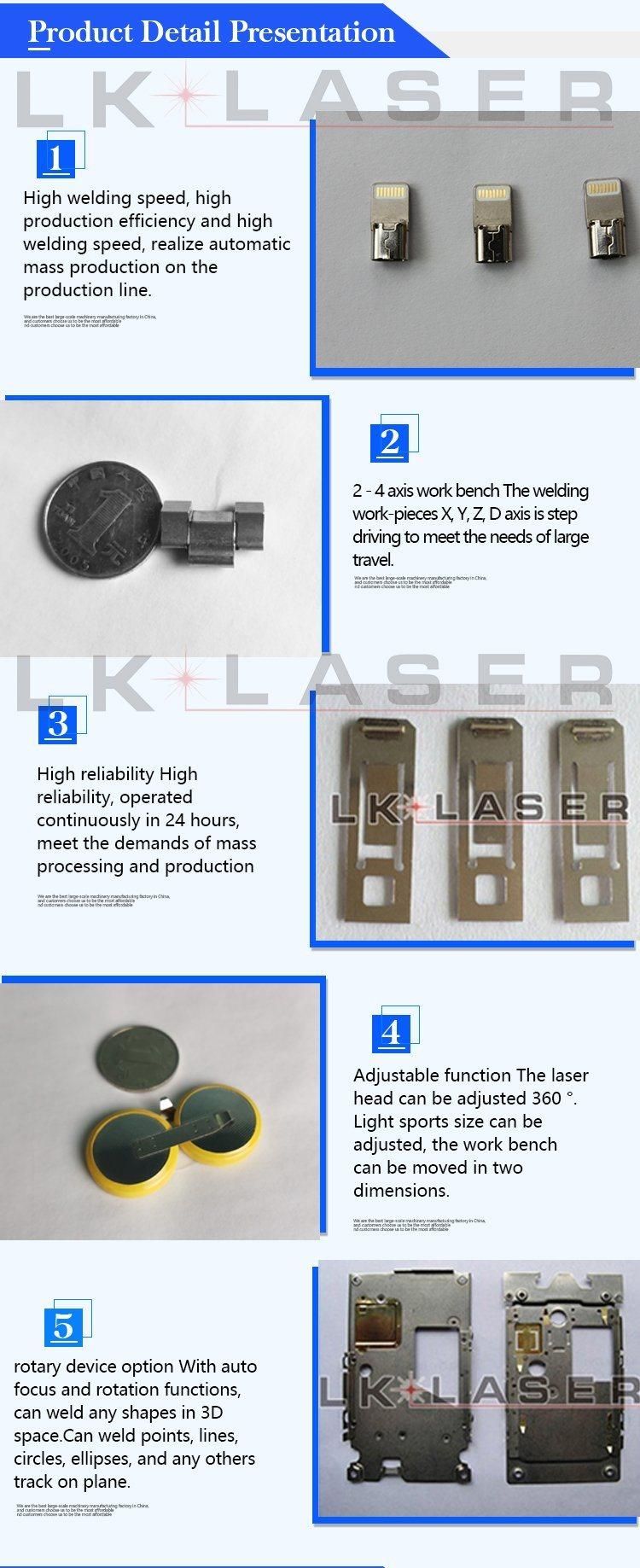

  1. High production efficiency and high welding speed, realizing automatic mass production on the production line.
  2. The welding workpieces X, Y, Z, D axis is step driving to meet the needs of large travel.
  3. High reliability, operated continuously in 24 hours, meet the demands of mass processing and production.
  4. The laser head can be adjusted 360°. Light sports size can be adjusted, the work bench can be moved in two dimensions.
  5. With auto focus and rotation functions, can weld any shapes in 3D space. Can weld points, lines, circles, ellipses, and any others track on plane.
  6. The 3 axis linkage control system is specifically customized for laser welding, performance stable, easy to use.
  7.

Technical Parameter:
Equipment TypeLK-ZW200LK-ZW300
Max.Laser Power200w300w
Laser TypeYAGYAG
Laser Wavelength1064um1064um
Pulse-width(ms)0.5-20ms0.5-20ms
Pulse Energy80J120J
Laser Welding Depth0.1-0.5mm0.1-1mm
Laser welding area200*200mm200*200mm
Adjusting range of light spot1.8mm1.8mm
Max. Bearing of standard work bench25kg25kg
Repeating Precision of work bench-0.001-0.001
Positioning Precision of work bench-0.001-0.001
Sighting Positioning Systemred light/CCDred light/CCD
Cooling methodwater coolingwater cooling
Integrity power5kw5kw
Power supplyAC220V/380V+-15%/50HZ/25AAC220V/380V+-15%/50HZ/25A
