Jewelry Laser Engraving Machine for Ring Plan Metal

CKD LASER CO., LTD
  • After-sales Service：Online Training
  • Warranty：12 Months Excluding Man-Made Damage
  • Laser Visibility：Invisible
  • Applicable Material：Nonmetal
  • Cooling System：Air Cooling
  • Technical Class：Pulse Laser

Base Info

  • Model NO.：CKD-PLMB-20,30,50,60 V19.08
  • Laser Wavelength：Fiber Laser
  • Laser Classification：Solid Laser
  • Type：Optical Fiber Laser Marking Machine
  • Marking Method：Scanning Marking
  • Average Lead Time：3-5 Work Days After Payment
  • Funtion：Marking, Engraving, Cutting
  • Application Material：Metal and Some Non-Metal
  • Marking Scope：Optional: 100*100,150*150,200*200,300*300mm
  • Laser Source：Optional 20,30,50,60W, Q-Switched or Mopa
  • Computer：Optional
  • Control Board：Original Bjjcz
  • How to Choose Configuration：Send Application Details When Inquiry
  • 3D Function：Charged Optional Function, Consult for Details
  • Transport Package：Wooden Box
  • Specification：CE & FDA & AS
  • Trademark：CKD LASER
  • Origin：Shenzhen, China
  • HS Code：8456110090
  • Production Capacity：200 Set,Month

Description

Remark:
It's optional of marking scope and you can choose lenes more than one for different marking scope.
The smaller lens the bigger energy when the same power of laser, recommend 200*200mm when you need color marking on stainless steel.
You can send your application details to us for choice help.


PLMB supports functions of starting engraving remotely and stop engraving remotely, can connect security door for emergency stop.

The user needs one more wire from "3" above to connect DB26, or use a transfer tool from "1" or "2" port above to link DB26 PINs.

UPDATE:

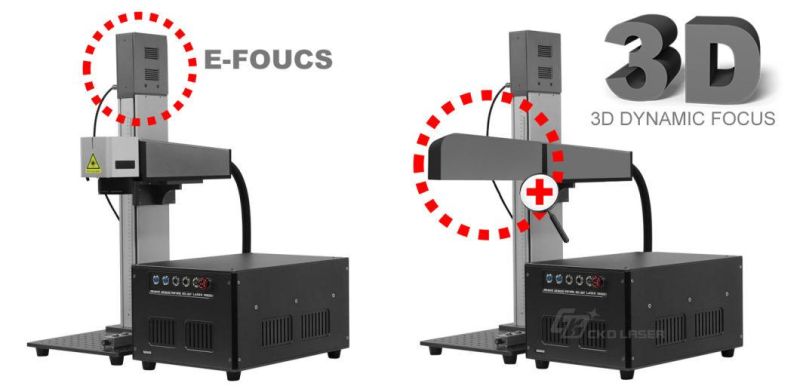

CKD-PLMB V19.08 is manually focus, it can be updated to be V19.10 which is E-focus, and also can be updated to be 3D dynamic focus (CKD-PL3D).
