• Model NO.：UG-9060L
• Laser Technology：Laser Control Fault Cutting
• Working Area：900*600mm
• Laser Type：CO2 Sealed-off Laser Tube
• Rated Laser Power：Reci W6 130W
• Working Table：Honey Comb and Knife Strip Double Working Table
• Driver and Motor Type：Yako Three Phases Stepper Motor and Driver
• Cutting Speed：0-10000mm,Min
• Control System：Ruida 6442s, Software Rdworks V8
• Cooling：Industrial Chiller Cw-5000
• WiFi Connection：Supporting
• Air Filter：Yes
• Transport Package：Plywood Case
• Specification：1840*1540*1250mm, 390kgs
• Trademark：UPGOAL
• Origin：China
• HS Code：8456110090
• Production Capacity：250set Per Month

Basic Info.

Model NO. UG-9060L Laser Technology Laser Control Fault Cutting Working Area 900*600mm Laser Type CO2 Sealed-off Laser Tube Rated Laser Power Reci W6 130W Working Table Honey Comb and Knife Strip Double Working Table Driver and Motor Type Yako Three Phases Stepper Motor and Driver Cutting Speed 0-10000mm/Min Control System Ruida 6442s, Software Rdworks V8 Cooling Industrial Chiller Cw-5000 WiFi Connection Supporting Air Filter Yes Transport Package Plywood Case Specification 1840*1540*1250mm, 390kgs Trademark UPGOAL Origin China HS Code 8456110090 Production Capacity 250set Per Month

Product Description

15-20mm Thickness Acrylic Co2 Laser Cutting Machine 130W with Air Filter



Features

Laser Head

Newly design, More in according with mechanical engineering. Safe and Durable. Simple Operation with high engraving/cutting speed and high laser power convert ratio.

Laser Tube

Adopted high quality Reci W6 (rated power 130W, maximum power 160W)  Co2 laser tube,  long working time time and stable




Working Table

Honey Comb Table: applicable to various soft materials with good adsorption effect and low reflection ratio.

Knife Strip Table:  With oxidation treatment and low reflection ratio Ensured cutting quality

Auto Lifting Table for more thickness materials:Maximum Loading 50kgs with 300mm up-down distance.

Beam Path System

Adopting imported focus lens with high luminousness and mirror with high relativity ensure stable power transference.

Motion System

Imported High precision, low friction force and stand wear and Hiwin linear square guide rails and blocks with 3M belt ensured stable transmission, lower noise

Operation System

Advanced USB port RuiDa 6442 DSP control system with large inner memory device and Fast curve cutting and Optimized shortest path function, Greatly improved the working efficiency .

With WIFI connection function, no need to use USB cable, convenient and improving working efficiency.

With full-process automatic laser power attenuation compensation , ensuring the performance consistency of engraving/cutting. The High speed motion control program with pre-buffering function enhances productivity more.

Completely compatible with various CAD&CAM softwares such as AuotCAD, CorelDAW, supporting the designs directly exporting. With advanced Color management and defining the working turns with different colors , All or a part work can done in one time.

Rationalized placement of the electronic parts. Optimized heat dissipation effect.




Cooling System

Industrial chiller CW-5000, ensuring the laser tube long time continuous working.

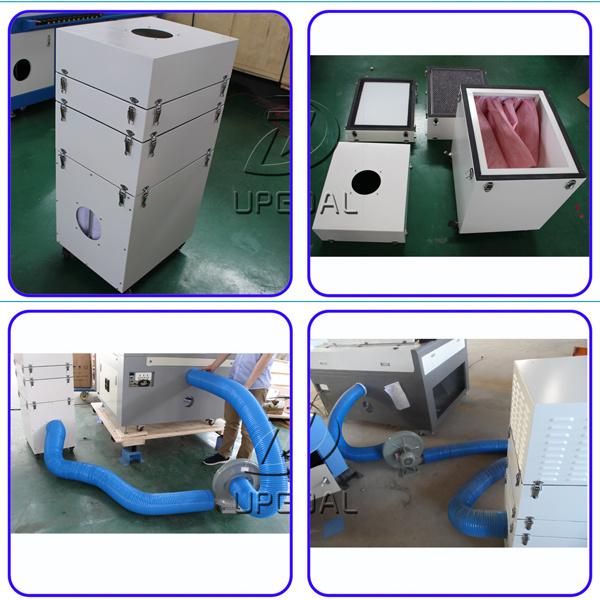

Air filtration system

Air filter with 5 layers filtration, during the laser engraving cutting machine using, can filtering a mass of gas & smoke which are harmful to human health when engraving & cutting processing materials. Has the feature of low noise, flexible using, and cover small area.



Technical Parameters


Effective working area	900*600mm
Laser Type	Co2 sealed-off laser tube
Laser tube power	W6 series, Reci, Beijing (Rated power: 130W, max. Power: 160W)
Working table	Honey comb and knife strip, double working table
Lifting table	Automatic up and down, 300mm
Driver mode	3 phases stepper motor and Driver, Yako brand
Guide rail	Linear square guide rail ( Hiwin,Taiwan)
Transmission	Belt transmission
Control panel	English
Laser output control	1-100% software setting
Engraving speed	0-60000mm/min
Cutting speed	0-10000mm/min
Control system	RuiDa RDC6442S
Control software	RDWorks V8
Wifi connection	Yes
Design software when delivery	CorelDraw
Control panel	DSP offline
Resolution accuracy	< 0.01mm
Location precision	< 0.01mm
Highest scanning accuracy	2500DPI
Type of cooling	Industrial chiller CW-5000 cooling
Water protection system	Yes
Focus	Auto focus
Blow-off system	Air pump for the laser head Air blower for the machine
Air filtration system	Air filter
Working temperature	0-45 °C
Operating humidity	5-95% (without condensed water)
Supporting picture format	PLT,DST,DXF,BMP, DWG,AI,LAS,etc
Voltage	AC 110V±10% 50/60Hz, single phase or AC 220V±10% 50/60Hz, single phase
Certificate	CE/FDA



Applications

Application Industry: Model Field(Construction Model,Aviation navigation model, wooden toys), advertising filed,decorative and decorating, craft gift industry, electronic, garments and leather industry, art glass industry, art glass industry,computerized embroidery and clipping, packaging and paper industry.

Main Cutting Materials: Acrylic, density board(MDF), double-color board, paper, plastic, rubber, cloth, wool, crystal, bamboo products, wooden products, etc

Materials Can work With: Organic glass, acrylic board (the paulownia,  lightwood), bamboo products, Double-color board, paper, leather, ceramics, textiles, crystal, jade, coconut shells, horn, resin animal sebum, ABS plate, lamp shade and other non-metallic materials.

Reference Sample Photos




Accessories and packing



Reference Working Videos
