• Model NO.：UG-1500LW
• Power Density：Heat Conduct Welding
• Laser Classification：Optical Fiber Laser
• Type：Automatic Laser Welding Machine
• Laser Power：1500W Fiber Laser, Raycus Brand
• Laser Wave Length：1070 Nm
• Fiber Length：Standard10m Maximum 15m
• Pulse Width：0.1-20ms
• Gas Source：Argon or Nitrogen
• Working Mode：Continuous or Modulate
• Cooling System：Water Cooling, Industrial Water Chiller
• Welding Speed Range：0~120 mm,S
• Welding Thickness Recommendations：0.5-4mm
• Line Width：Within 5nm
• Welding Head：Portable Wobble Handheld Welding Head
• Working Voltage：AC220V, 50,60Hz, Single Phase
• Transport Package：Plywood Case
• Specification：1550*900*1530mm, 300KGS
• Trademark：UPGOAL
• Origin：China
• HS Code：8515809090
• Production Capacity：300set Per Month
• Package size per unit product：155.00cm * 900.00cm * 1530.00cm
• Gross weight per unit product：300.000kg

Basic Info.

Model NO. UG-1500LW Power Density Heat Conduct Welding Laser Classification Optical Fiber Laser Type Automatic Laser Welding Machine Laser Power 1500W Fiber Laser, Raycus Brand Laser Wave Length 1070 Nm Fiber Length Standard10m Maximum 15m Pulse Width 0.1-20ms Gas Source Argon or Nitrogen Working Mode Continuous or Modulate Cooling System Water Cooling, Industrial Water Chiller Welding Speed Range 0~120 mm/S Welding Thickness Recommendations 0.5-4mm Line Width Within 5nm Welding Head Portable Wobble Handheld Welding Head Working Voltage AC220V, 50/60Hz, Single Phase Transport Package Plywood Case Specification 1550*900*1530mm, 300KGS Trademark UPGOAL Origin China HS Code 8515809090 Production Capacity 300set Per Month

Packaging & Delivery

Package size per unit product 155.00cm * 900.00cm * 1530.00cm Gross weight per unit product 300.000kg

Product Description

Galvanized Sheet/ Galvanized Plate Handheld Fiber Laser Welding Machine

Applications  & Features

Handheld fiber laser welding machine, uses latest Raycus RFL-C1500W fiber laser generator. It's equipped with China famous brand wobble weld head. The machines appear to laser equipment industries, fills in the blank of hand-held welding. It has the advantages of simple operation, beautiful welding beam and fast welding speed. Welding in thin aluminum,stainless-steel sheet, iron sheet, galvanized sheet and other metal materials can perfectly replace the traditional argon arc welding, electric welding and other processes.

Handheld laser welding machine can be widely used in cabinets, kitchens, staircases, elevators, racks, ovens, stainless steel doors and windows guardrail, distribution boxes, stainless steel home and other industries complex and irregular welding process.

1.The energy density is high, the heat input is low, the amount of thermal deformation is small, and the melting zone and the heat-affected zone are narrow and deep.

2.High cooling rate, which can weld fine weld structure and good joint performance.

3.Compared with contact welding, laser welding eliminates the need for electrodes, reducing daily maintenance costs and greatly increasing work efficiency.

4.The weld seam is thin, the penetration depth is large, the taper is small, the precision is high, the appearance is smooth, flat and beautiful.

5.No consumables, small size, flexible processing, low operating and maintenance costs.

6.The laser is transmitted through fiber optics and can be used in conjunction with a pipeline or robot.

7. Fast welding speed, 2~10 times faster than traditional welding.

8. Easy operating need no training.

9. Safer, more environmentally friendly.


Main Parts

Fiber Laser source: Adopting famous Raycus RFL-C1500W the photoelectric conversion rate is greatly improved, laser power is enhanced, has better welding effect, can according to the needs of customers with different configurations to meet customer needs.


Portable wobble handheld welding head(Qilin brand) Light shape, economic deign, instead of fixed weling head, it offers so much welding convenience for welding big, or heavy or complex structure articles.

Special laser welding system(Qilin brand) : Welding software is easily operated as the mode of human-computer interface. Strong software function can be realized by simple touch screen.It has editable and memory functions. and welding width of the processing parts, and solve the disadvantage of minor laser welding spot, and provide better welding forming.

Industrial Water chiller(BY-1500-SC): One of the biggest convenience of the machine is the inside water chiller. It saves a lot of the machine's dimension.It is constant temperature industrial type.

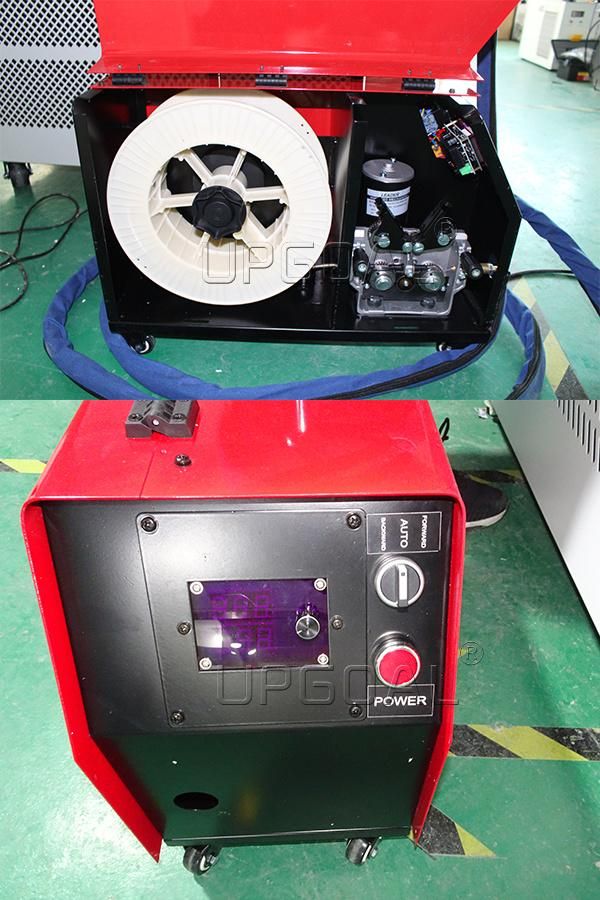

Wire Feeder Machine, suitable for wire diameter 0.8/1.0/1.2/1.6mm, make the welding joint full and level and to meet the required mechanical strength requirements.


Connect with the Argon gas or Nitrogen gas before welding

Laser swtich and bond strap


Technical Parameters

Laser Power	1500W( Raycus brand, RFL-C1500 model)
Laser Wave Length	1070 NM±20
Fiber Length	standard10M Maximum 15M
Laser Pulse Frequency	1-20HZ
Pulse Width	0.1-20ms
Adjusted spot range	0.1-3mm
Minimum Welding pool	0.1mm
Gas source	Argon or Nitrogen
Working mode	Continuous or modulate
Welding head	Portable wobble handheld welding head(Qilinbrand)
Welding system	Touch screen control panel(Qilin brand)
Beam quality	M2<1.2
Line width	<5nm
Straight modulate	0-5KHZ
Welding speed range	0~120 mm/s
Cooling system	Water cooling, industrial water chiller(BY-1500-SC)
Welding thickness recommendations	0.5-4mm
Welding gap requirements	≤0.5mm
Working environment temperature	15~35 ºC
Humidity range of working environment	< 70%No condensation
Working Voltage	AC220V, 50/60Hz,single phase
Certificate	CE

Reference Sample Photos

Accessories( goggle, protection lens, nozzle, ethhl alcohol, cotton swab, tools box, etc)


Reference Packing Photo( One plywood case, exporting standard)

Working videos:

https://youtu.be/luxpMgLBKiY


 For more information, just feel free to contact us!
