• Model NO.：PEDB-400B A1
• Laser Wavelength：Fiber Laser
• Laser Classification：Solid Laser
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Emission Bandwidth (Fwhm)：<10 Nm
• Long-Term Average Power Instability：<5%
• Pulse Width(Fwhm)：100 Ns
• Laser Switching on Time：180 μsec
• Laser Switching off Time：180 μsec
• Pulse Repetition Rate* kHz：20-80 kHz
• Energy Per Pulse (Prr = 20 kHz)：0.95 Mj
• Typical Beam Quality, M2：<1.8
• Output Fiber Delivery Length：3m
• Operating Voltage：220V
• Transport Package：Wood Crafcase
• Specification：60kg
• Trademark：Perfect Laser
• Origin：Hubei
• HS Code：845610000
• Production Capacity：1000 Units Per Month

Laser Source
 IPG Series
 Pulse, high energy ytterbium doped fiber laser
 Operating Mode
 Pulse
 Polarization
 Random
 Average output power
 20W
 Central emission wavelength
 1060-1070 nm, Q switch operation Output power adjustment range is 10% -100%
 Transmit bandwidth(FWHM)
 <10nm
 Long-term average power instability
 <5%
 Pulse width (FWHM)
 100ns
 Laser connection time
 180 microseconds
 Laser disconnect time
 180 microseconds
 Pulse repetition rate (kHz)
 20-80kHz
 Per pulse energy (PRR = 20 kHz)
 0.95 MJ
 Beam quality
 <1.8
 Output fiber transmission length
 3m
 working voltage
 220V
 Maximum power consumption
 600W
 Net size
 70*20*50cm
 Laser System
 Scanning speed
 0-7000mm/s
 Marking speed
 0-8000mm/s
 Marking size
 110mm×110mm (F-theta 160)
 Spot size
 ≤ 40 micron (F-theta 160)
 Cooling system
 Air cooling
 Pilot laser
 650 nm laser diode, red light marking guide
 Continuous working time
 ≥16h
 Humidity
 45 to 85% (without condensation)
 Working temperature
 0~40ºC
 Control system
 Laser marking (Chinese version)




>>> After-sales Services:
1.2 year guarantee for main machine (People damaged are charged).
2. Full technical support by e-mail, call and video
3. Lifelong maintenance and spare parts supply.
4. Free design of fixtures as customers required.
5. Free training installation and operation for the staffs.

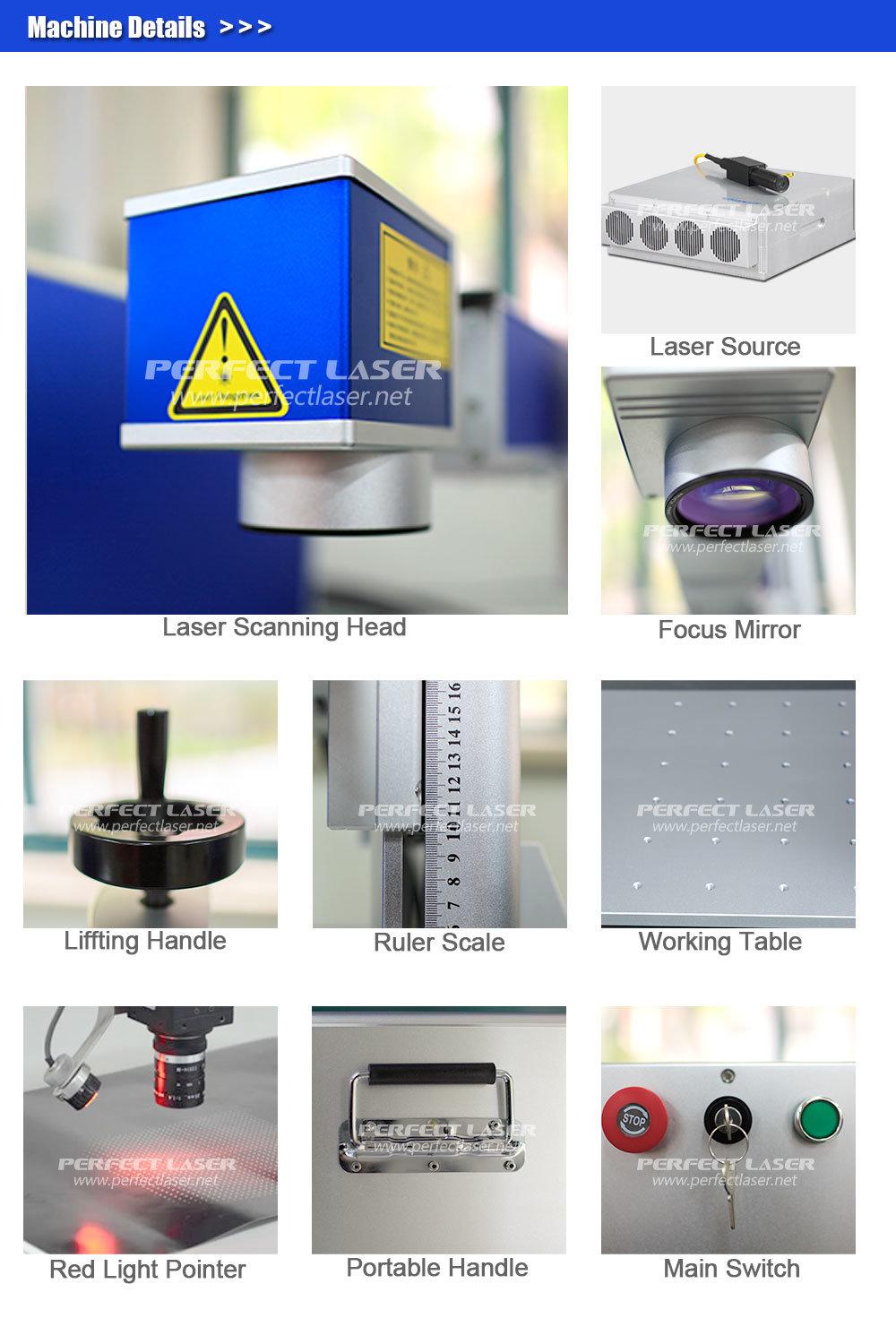

Detailed Images

Company Information
We, Perfect Laser, As a 21 years history industrial equipment manufacture in laser field, 10 year Golden Supplier in Alibaba, with CE/ISO/FDA, we aims to make high quality products, and also our products have been exported to more than 180 different countries and areas.



FAQ

Q1.: What's the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.

Q2.: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 180 countries worldwide. So please don't worry, you will receive the parcel in good condition.

Q3.: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.

Q4.: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
