• Model NO.：GS-3015CE,4020CE,GS-6020CE,GS-6025CE,8020CE,8025CE
• Laser Technology：Laser Control Fault Cutting
• Laser Source：Fiber Laser
• Working Area：3000*1500mm and Optional
• Laser Type：Germany Brand and China Brand
• Control System：Optional
• Appearance Design：Glorystar
• Drag Chain Tow：Import
• Transport Package：packaged by plywood
• Specification：CE, SGS, FDA, Bureau, ISO
• Trademark：GLORY STAR
• Origin：China
• HS Code：8456110090
• Production Capacity：3500sets,Year

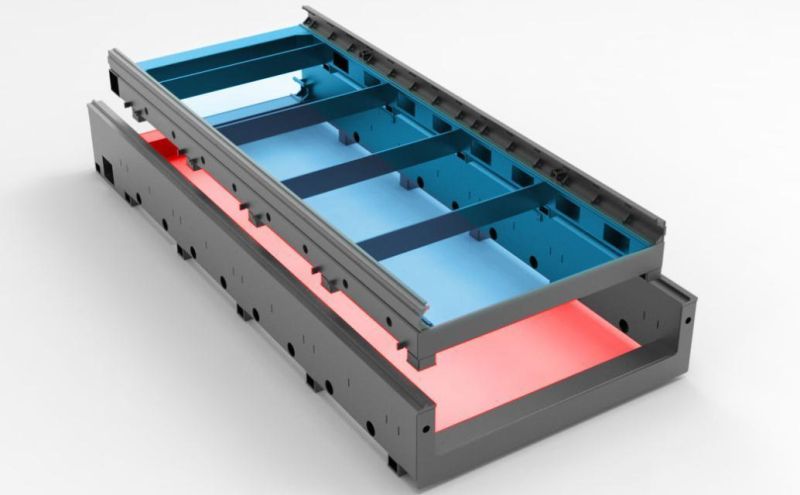

Hollow+ Double-layer Separated Machine Bed with Lifetime Warranty

The industry's first hollow + double-layer separated machine bed solved industry problems, the inner bed and the outer bed bear weight independently, the outer bed bears the motion system, and the inner bed bears the metal plate, which avoids the possibility of deformation caused by over-large load in design, and guarantees the stability and accuracy of machine operation. Whole Machine Full Servo Control

The industry's first high-power laser cutting machine with full servo control for the whole machine realizes digital positioning, and its exchange table is driven by a servo motor, which effectively improves the traction and positioning accuracy of the table.
High and low platforms driven by double chains and double motors

The high and low platforms are driven by double chains and double motors, supporting eight workbench exchange modes, which can realize the same advance and retreat or one advance and one retreat. These eight exchange modes make the machine bed cleaning and maintenance more convenient. Support the whole board cutting of ultra-thick plates

NAVSTAR series has the industry's largest supporting metal board height of the workbench, the industry's largest workbench net space, and the industry's largest height between the exchange table and the cutting head, supporting the whole board cutting of ultra-thick plates.Product Parameter
 Feature/Model602512025Working Area6000mm*2500mm12000mm*2500mmStroke (X/Y/Z Axis)2550mm/6050mm/460mm2550mm/12050mm/460mmX/Y Axis Positioning Accuracy≤0.03mm/m≤0.03mm/mX/Y Axis Repositioning Accuracy≤0.02mm≤0.02mmMaximum Moving Speed140m/min140m/minMaximum Acceleration2.1G2.1GPower Protection GradeIP54IP54Laser Power15000W-30000w15000W-30000wMaximum Loading Weight7T14TMachine Weight18T35TOverall Dimensions15300mm*4200mm*2500mm28200mm*4200mm*2500mm
>>> After-sale Service

Installation and debugging
Technicians can be sent to the factory for training (free of service fee for the first time). Customers only need to provide accommodation for engineers.
Training
Free of charge for training within warranty. But customers need to take charge of the cost for accommodation, air tickets, visa fee.
24/7 online service
All our laser equipment is provided with 12 months warranty. Glorystar Laser offers free maintenance or replacement service if something is wrong with the equipment under warranty. If it is out of warranty,Glorystar Laser will send engineers to your factory as soon as possible and only charge the cost of parts.
Accessories supply
IPG laser source is 2 years. Other parts is one year except for optical and consumable parts. Prolong serve is always available for option. Free of charge for fixing and changing parts within warranty. Only changing parts , the freight should be charged by customers.
Remote diagnosis
Glorystar Laser can check the running status of the customer's laser cutter through our remote maintenance system. Our technicians can perform troubleshooting via remote access instead of on-site diagnosis and maintenance, saving you a lot of time.
Additionally, Glorystar Laser will establish a special user profile for all customers who have purchased equipment from us to record your usage, maintenance records and other information. This will help us to learn about customer information more quickly and thus provide necessary upgrades according to customer feedback

Glorystar Laser · Global laser smart solution expert

Glorystar Laser Group has been deeply engaged in the manufacturing of laser intelligent equipment for 11 years. It is headquartered in Dongguan, China and has two wholly-owned subsidiaries.It is a national high-tech enterprise focusing on laser application solutions such as laser cutting, tube cutting, precision cutting, laser welding, laser marking, CNC bending, and automation equipment.
Glorystar Laser has established branches and service outlets in 30% of the countries and regions around the world to promote the process of global intelligence and has more than 200 patents and certificates. Glorystar Laser adheres to the quality route and forms 139 production and inspection procedures higher than the industry standard. With the mission of "Laser technology makes a better world", its high-quality products and after-sales service have won high praise from customers.


Our group operates four companies, each of them can complete equipment assembly and debugging independently, and ensuring timely delivery for customers. Today, Glorystar Laser has more than 8000 cooperative clients in over 130 countries around the world, including America, England, Italy, Argentina, Thailand, Malaysia, and so on.


CERTIFICATION

200+ R&D TEAM



RESEARCH ROOM

In addition, our company has been cooperating with many universities for a long time to establish the "Laser Application Research Institute" and the "Intelligent Manufacturing Research Institute" for deep research on laser applications and intelligent manufacturing applications.
