• Model NO.：LP-3015D
• Laser Technology：Fiber Laser
• Power：1000W-12000W
• Laser Source：Ipg,Raycus
• Motor：Yaskawa
• Rail and Rack：Hiwin,Yyc
• Control System：Cypcut
• Water Cooling：Hanli,Tongfei
• Size：1500*3000mm,2000*4000mm
• Aftersales：2-Year Warranty
• G.W.：12t
• Transport Package：40HP
• Specification：10500*3478*2340mm
• Origin：China
• HS Code：8456110090
• Production Capacity：720 Sets,Year

Basic Info.

Model NO. LP-3015D Laser Technology Fiber Laser Power 1000W-12000W Laser Source Ipg/Raycus Motor Yaskawa Rail and Rack Hiwin/Yyc Control System Cypcut Water Cooling Hanli/Tongfei Size 1500*3000mm/2000*4000mm Aftersales 2-Year Warranty G.W. 12t Transport Package 40HP Specification 10500*3478*2340mm Origin China HS Code 8456110090 Production Capacity 720 Sets/Year

Product Description

Stainless steel fiber laser cutting machine laser maquina de corte para la metal

Features

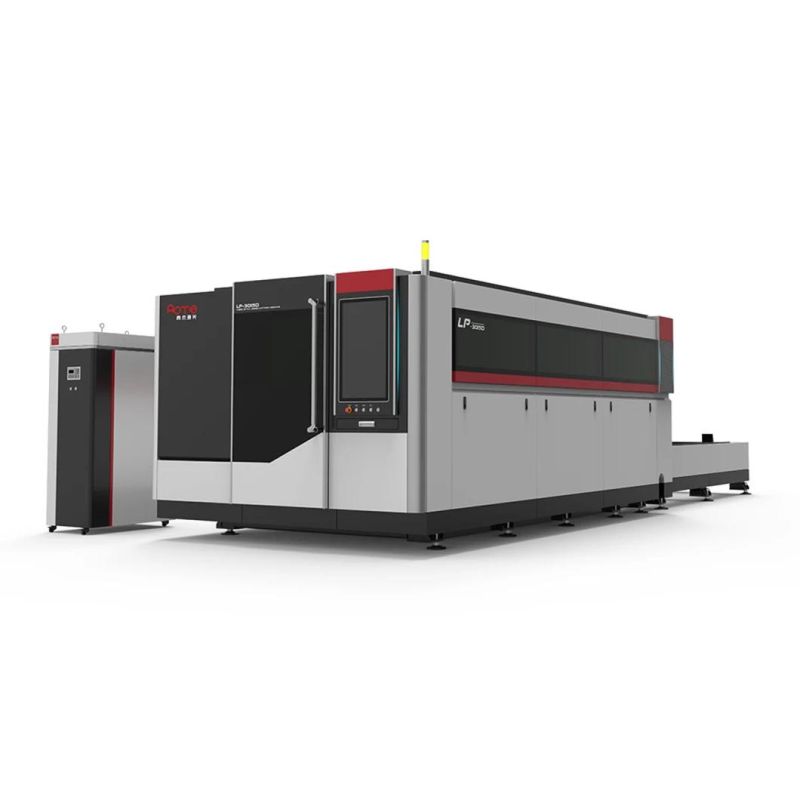

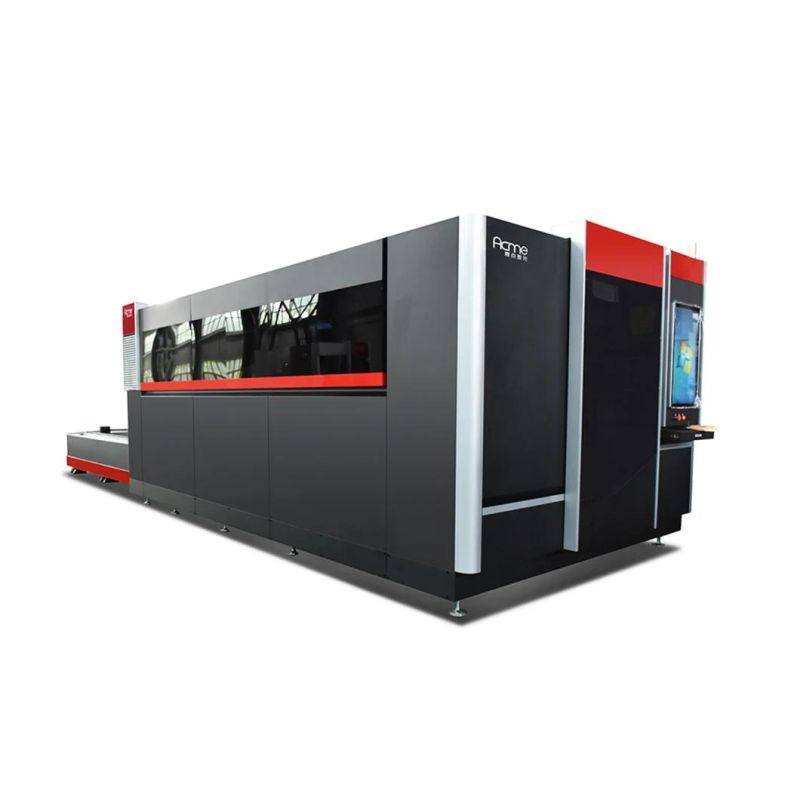

LP-3015D and LP-4020D fiber laser cutting machine with high power is specially used to cut thick sheet, such as stainless steel, carbon steel, mild steel, galvanized steel, aluminum, brass, copper and various other metal materials.

1. Welded aluminum gantry, light but hardness reach to T6

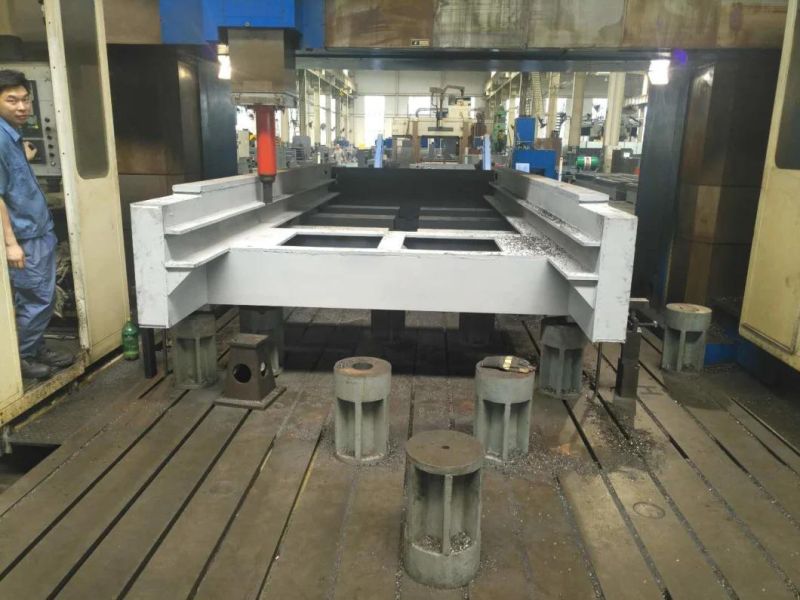

2. 8.5T net weight machine bed with high temperature annealing, whole steel sheet welded bed with high accuracy

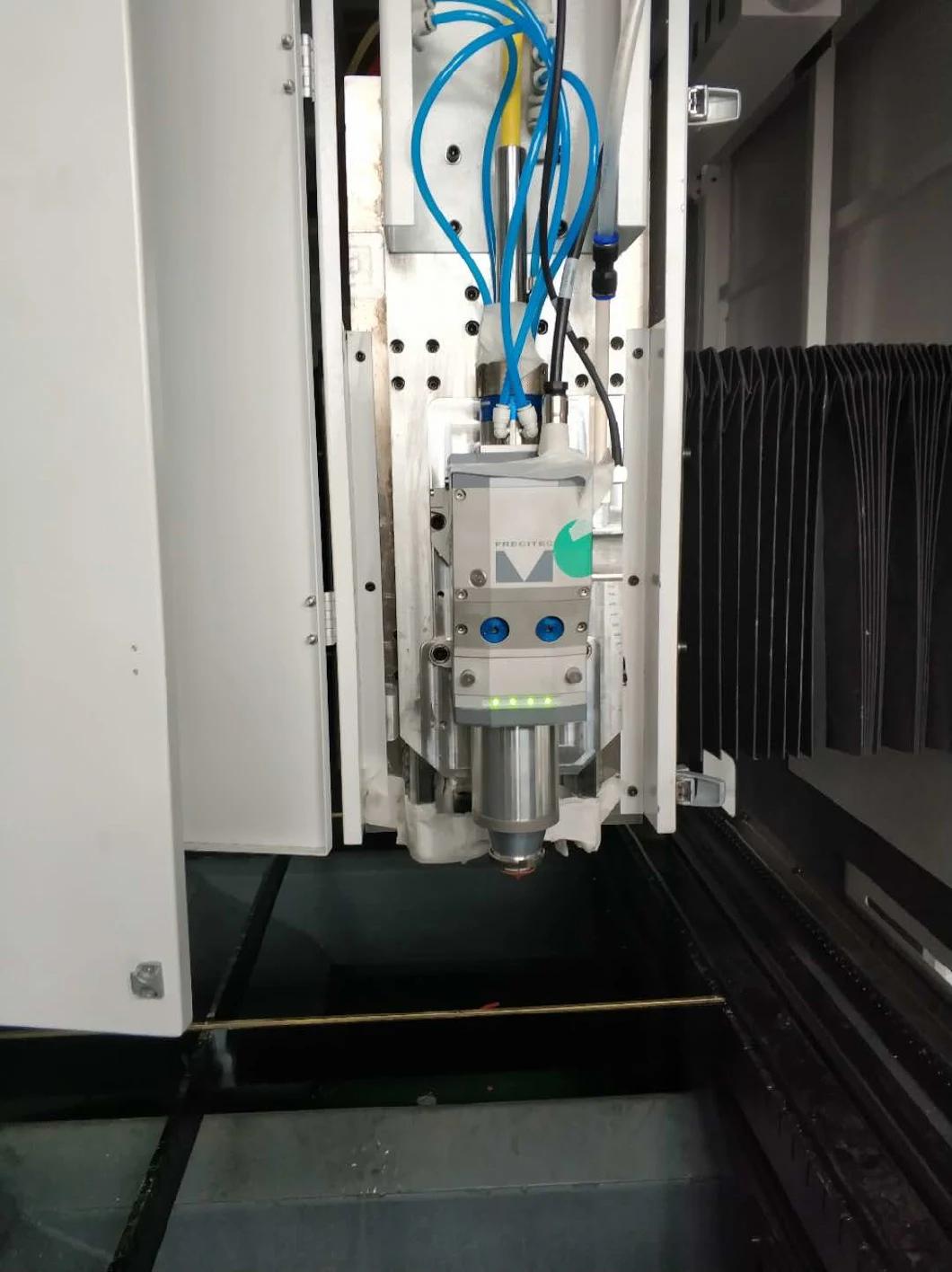

3. Germany Precitec Auto-focusing Laser Head

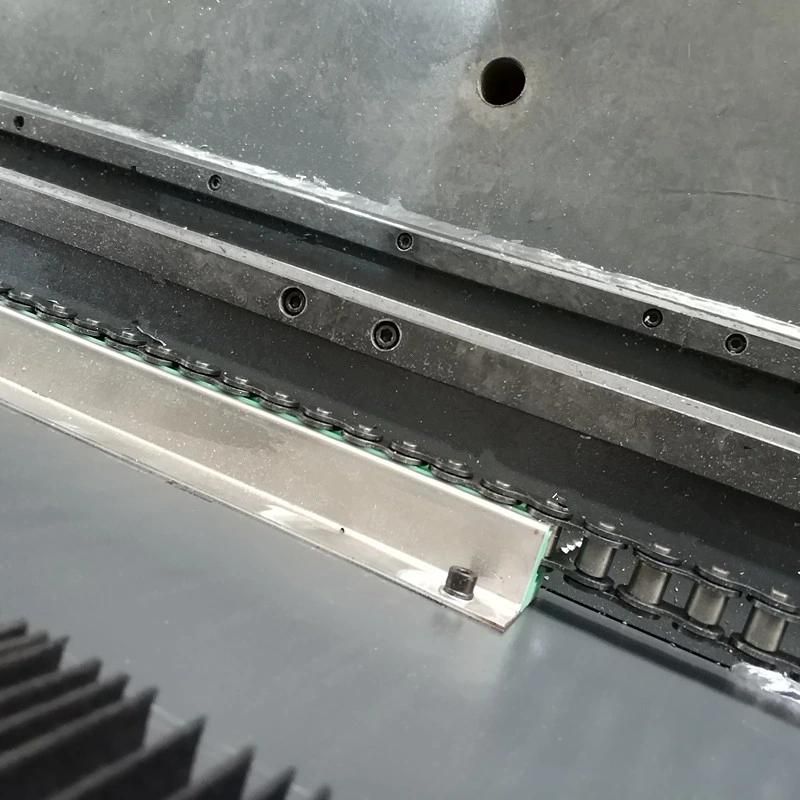

4. Chain for Table Exchanging is pretected and supported in the tunnel,making the exchange process stable.

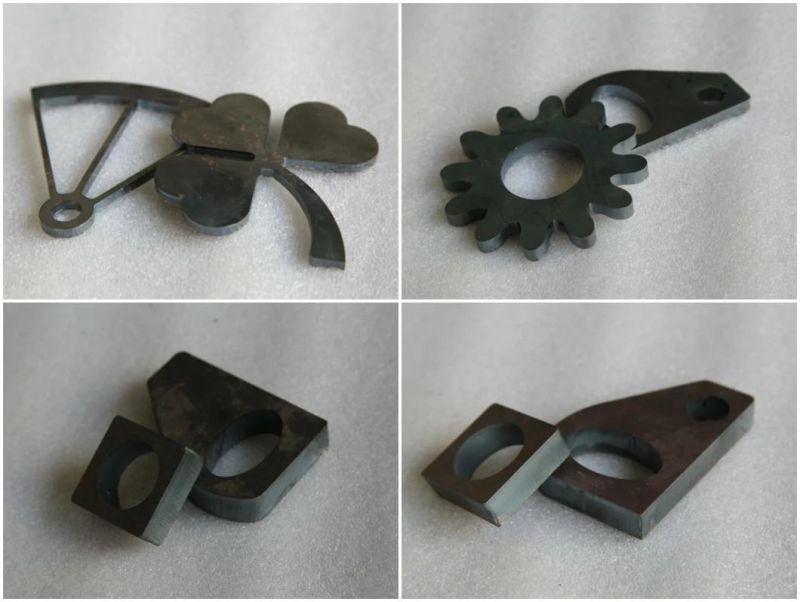

Samples


Cutting Capability of IPG

RESONATOR IPG	YLS-1KW	YLS-2KW	YLS-3KW	YLS-4KW	YLS-6KW
Power (W)	1000	2000	3000	4000	6000
Recommended cooling power (kW)	2,1	4,2	6,4	8,5	12,6
Electrical supply (kW)	3,1	6,1	9,1	12,1	18,2
Maximum sheet thickness:
Steel (mm)	10	15	20	20	25
Stainless Steel (mm)	4	8	12	15	20
Aluminium (mm)	2	6	12	12	15
Brass (mm)	2	4	6	8	10
Copper (mm)	2	4	6	8	10

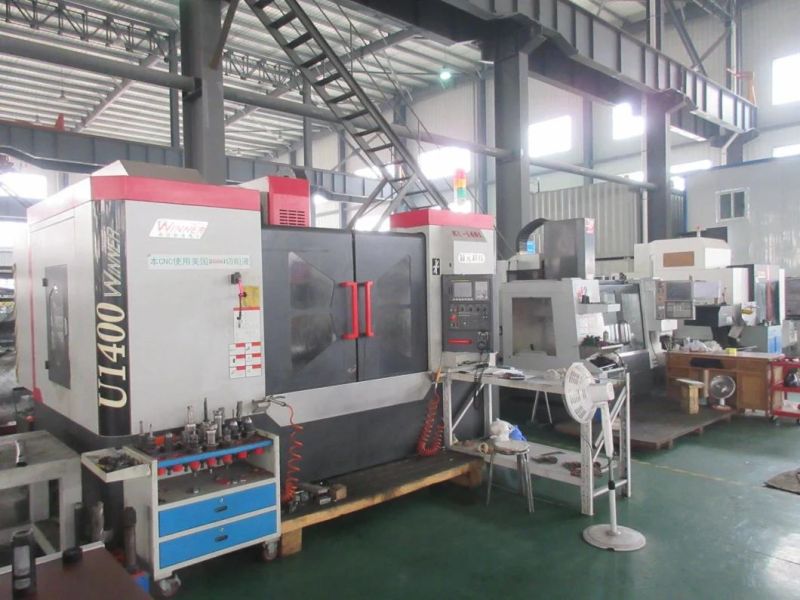

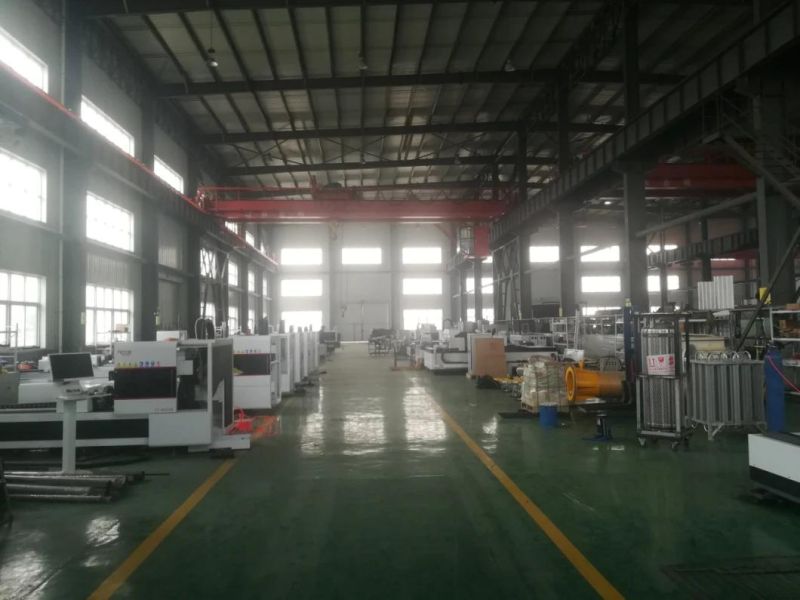

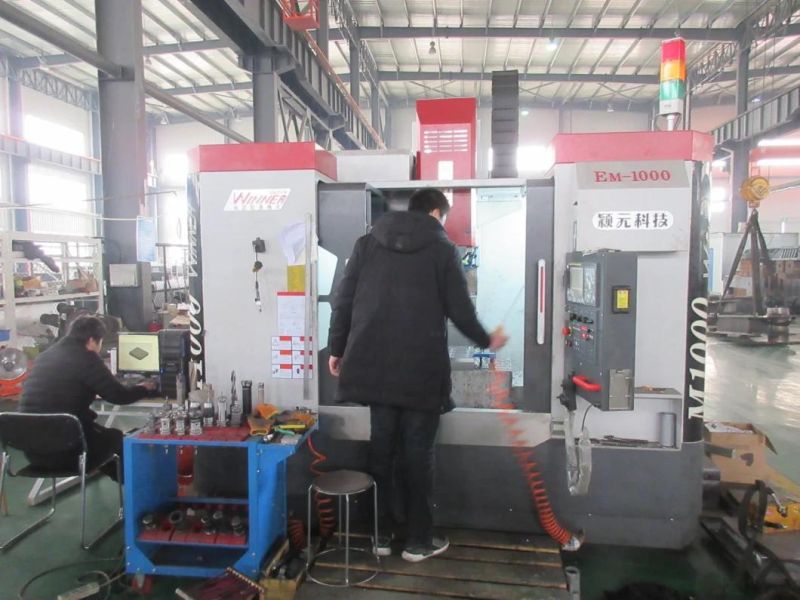

Factory

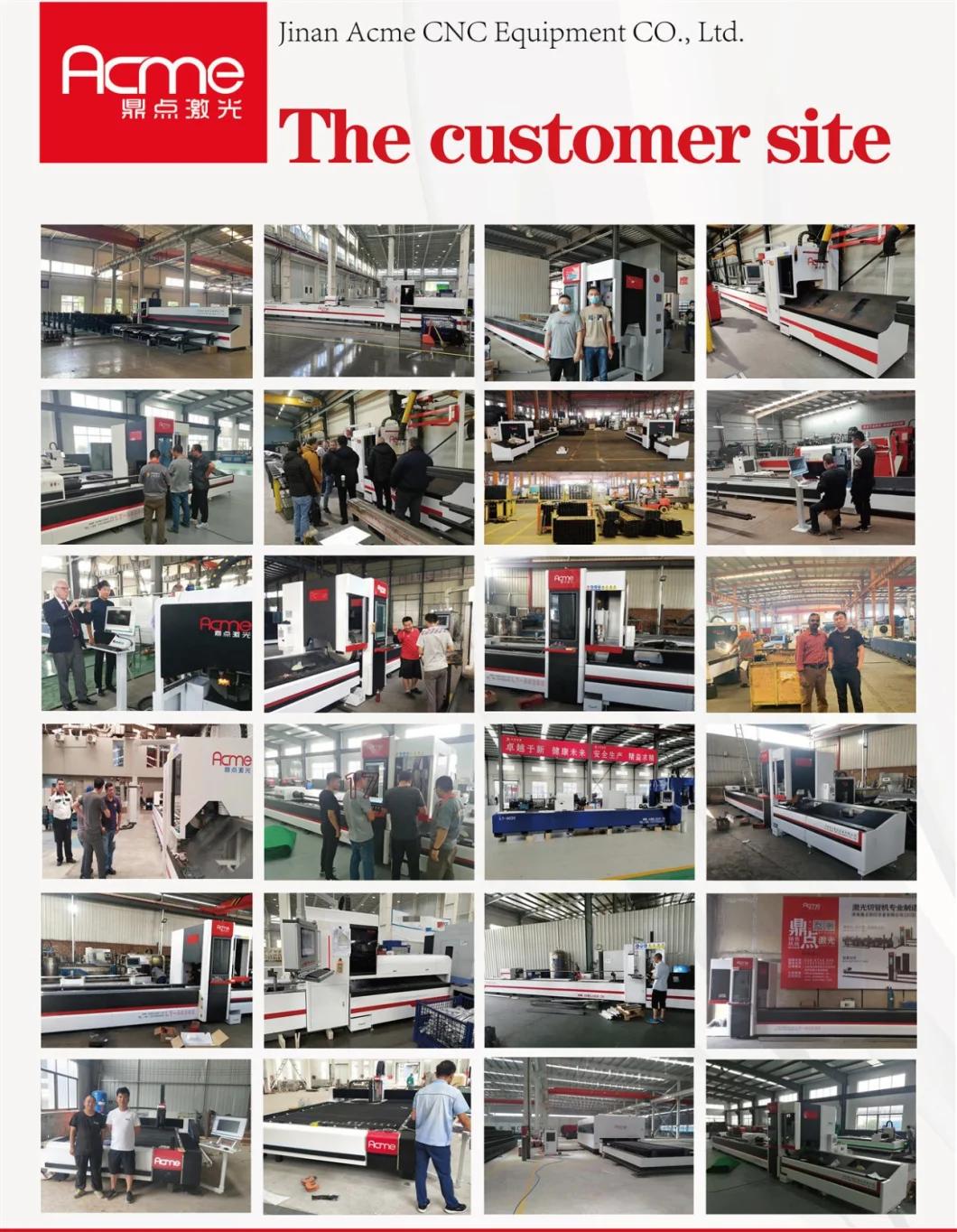

CUSTOMER FACTORY SHOW

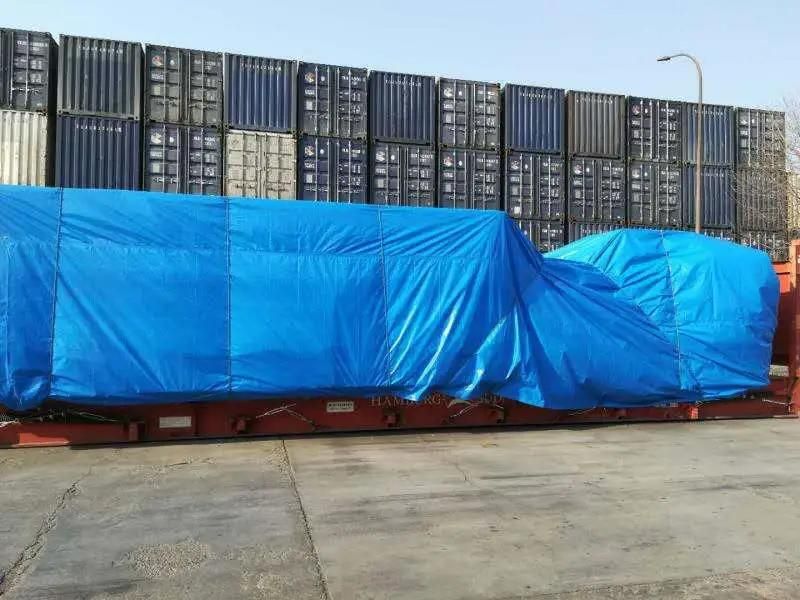

Shipment in Flat Rack


Why Choose Fiber Laser for Stainless Steel, Mild Steel and Aluminum, etc., ?
More companies than ever before are investing in fiber lasers. While the automotive industry was undoubtedly the early adopter, this relatively new solution is being snapped up across the board and when you consider the advantages, it's easy to see why.

EXTRA SPEED

The sheer speed of fiber laser markers makes them the first choice for customers looking to increase efficiency. They're the fastest laser marking technology at their wavelength, delivering marking times of less than one second for some applications. While older, more established laser technology is available-including diode-pumped solid-state (DPSS) lasers, lamp-pumped lasers, and carbon dioxide (CO₂) lasers-none can beat a fiber laser for combined mark speed and quality.

This means fiber lasers can break new ground. For example, one of Laser Lines' customers is an automotive component manufacturer that needs to mark serial codes exceptionally fast-in under half a second-which wouldn't be possible with any other type of laser.

ENERGY EFFECIENCY

Despite being faster, fiber lasers are energy-efficient compared to the alternatives. Not only does this result in reduced power consumption, but it also helps make the system simpler, smaller, and more reliable.

Fiber laser technology uses basic air cooling rather than an additional chiller unit, which would be costly and cumbersome. With many businesses finding both cash and floor space in short supply, compact and efficient fiber laser marking solutions are proving to be the right fit.

LONG LIFE

The life expectancy of a fiber laser far exceeds that of other laser solutions. In fact, the diode module in a fiber laser typically last three times longer than other technologies. Most lasers have a life of around 30,000 hours, which typically equates to about 15 years' use.

Fiber lasers have an expected life of around 100,000 hours, which means about 45 years' use. Saying that, will companies still be using the same fiber laser in 45 years? I doubt it! Regardless, this option does deliver an impressive return on investment.
