CNC Engraving Machine for Processing Non Metal Wood Acrylic Cloth Fabric Leather Paper
Dongguan Synutar Intelligent Equipment Co., Ltd.- After-sales Service:24 Hours 7 Days Online Service
- Warranty:12 Months
- Application:Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Woodwork Industry, Advertising Industry
- Cooling System:Water Cooling
- Technical Class:Continuous Wave Laser
- Applicable Material:Nonmetal
Base Info
- Model NO.:SYC-6040,SYC-9060,SYC-1080,SYC-1390,SYC-1610
- Structure Type:Gantry Type
- Laser Classification:CO2 Laser Source
- Laser Technology:Laser Control Fault Cutting
- Laser Power:60W,80W,100W,130W,150W
- Working Area(mm):900*600,1000*800,1300*900,1400*900,1600*1000
- Engraving Speed:0-64000mm,Min
- Cutting Speed:0-36000mm,Min
- Repeat Accuracy:Around 0.05mm
- Moving System:CNC Control System
- Overall Power Consumption:Less Than 1250W
- Cooling Mode:Water-Cooling and Protection System
- Operating Temperature:0~45 Degree
- Operating Humidity:5%-95%
- Graphic Supported Format:CAD, MP, JPG, PNG, TIF, Pcx, Tag, Ioo, GIF, Plt
- Transport Package:Plywood
- Trademark:SYNUTAR
- Origin:Dongguan, China
- HS Code:8456110090
- Production Capacity:500sets,Year
Description

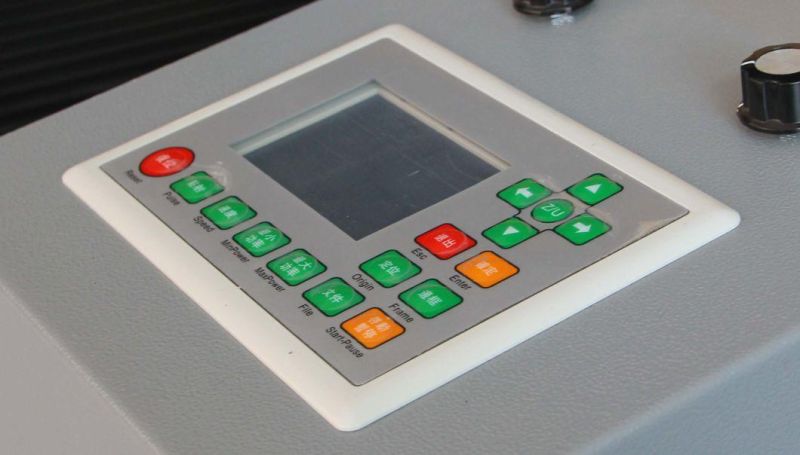

Operation panel
Humanized LCD control panel, integrated controller with software and English language installed, it is operate independently from the computer once the drawing is downloaded to it

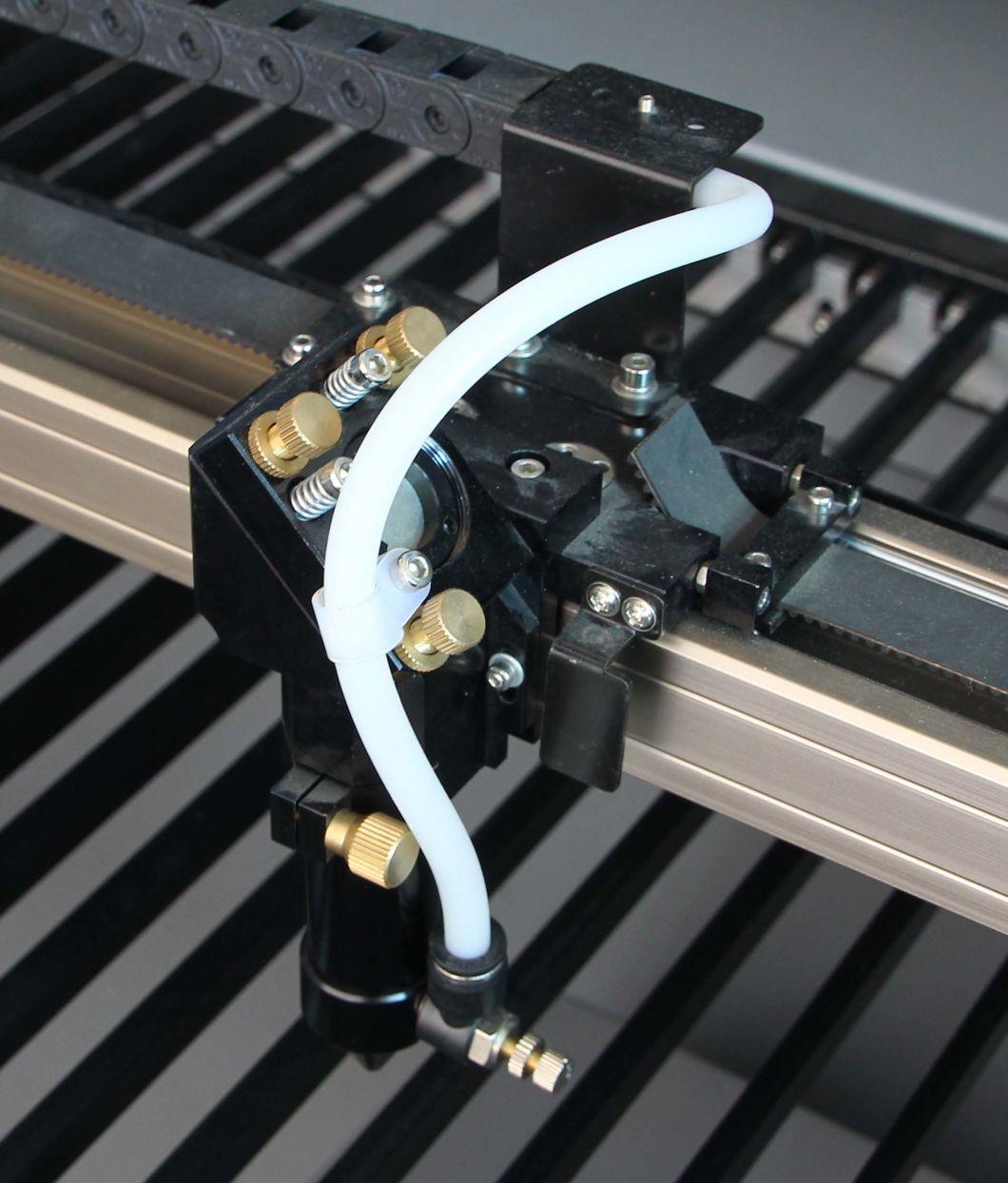

Laser Cutting head
High speed laser head, adopt flying path design, unique optical structure, small optical path deviation, high stability and easy adjustment.
One head or two heads(Optional)

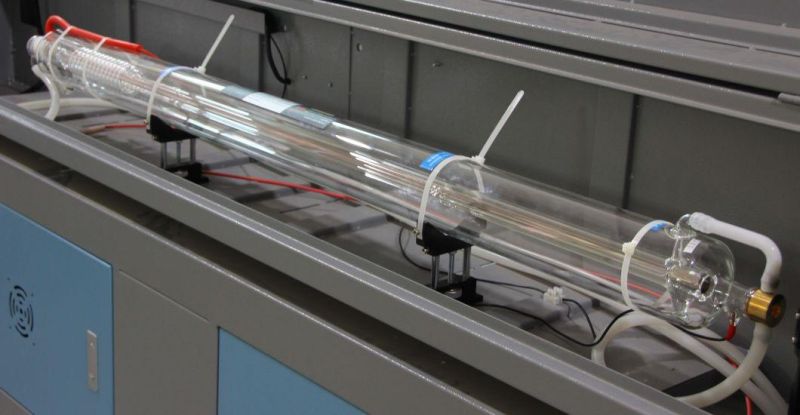

Laser tube
High-efficiency and long life Laser tube, 9month warranty Driving system

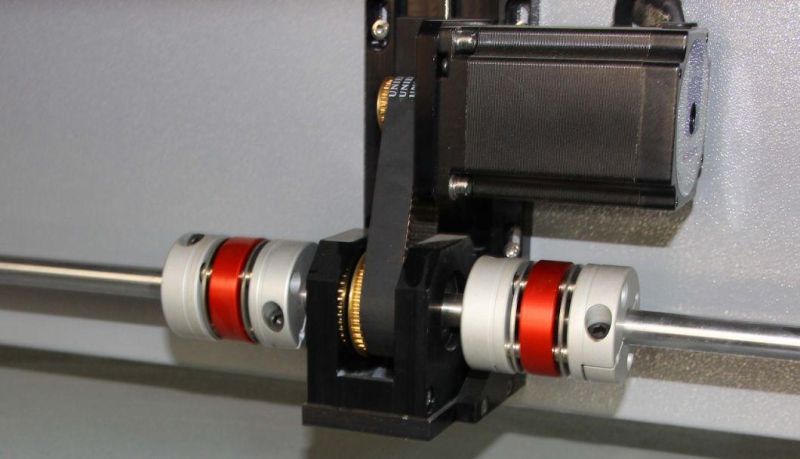

Equipped with high speed outer guide rail and stepping motor drive system, can guaranty engraving and cutting precision
Remarks: more details of machine, pls contact me freely
Applicable Industries
Engraving and cutting of paper, fabric, plastic, nonwoven cloth in garment and toy industries, also inclusive of precise cutting to non-metal materials, like acrylic and MDF board in handbag, glove, mold, advertisements, decoration, electrical appliance and plastic industries.
Applicable Materials
Woodwork, paper, leather, cloth, organic glass, resin, acrylic, woolens, plastic, rubber, ceramic, crystal, jade, bamboo and other non-metal materials
Samples
Humanized LCD control panel, integrated controller with software and English language installed, it is operate independently from the computer once the drawing is downloaded to it
Laser Cutting head
High speed laser head, adopt flying path design, unique optical structure, small optical path deviation, high stability and easy adjustment.
One head or two heads(Optional)
Laser tube
High-efficiency and long life Laser tube, 9month warranty Driving system
Equipped with high speed outer guide rail and stepping motor drive system, can guaranty engraving and cutting precision
Remarks: more details of machine, pls contact me freely
Applicable Industries
Engraving and cutting of paper, fabric, plastic, nonwoven cloth in garment and toy industries, also inclusive of precise cutting to non-metal materials, like acrylic and MDF board in handbag, glove, mold, advertisements, decoration, electrical appliance and plastic industries.
Applicable Materials
Woodwork, paper, leather, cloth, organic glass, resin, acrylic, woolens, plastic, rubber, ceramic, crystal, jade, bamboo and other non-metal materials
Samples
