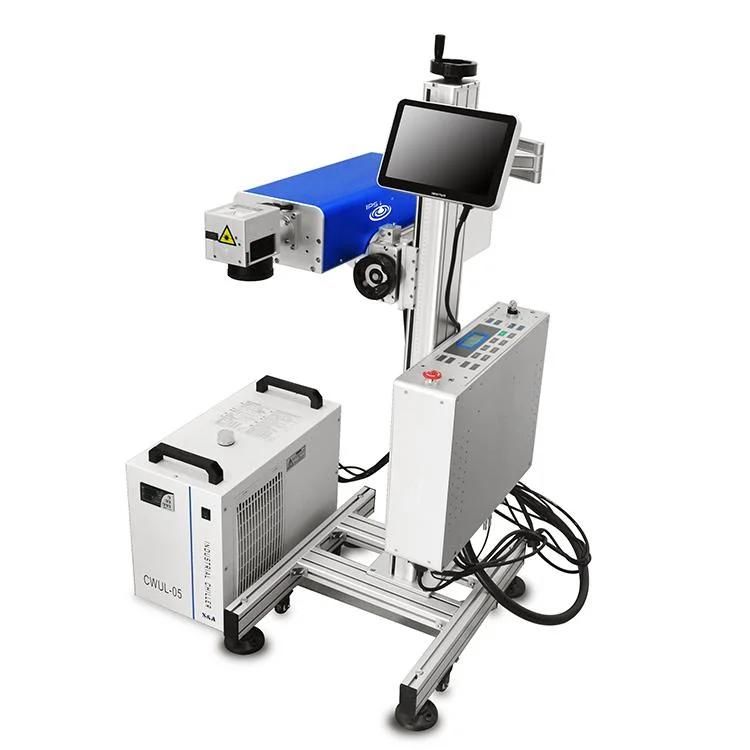

3W Fly Online Dynamic Face Mask UV Ultraviolet Laser Marking Machine with CE Certificate
Guangzhou Prima Technology Co., Ltd.- Laser Visibility：Visible
- Applicable Material：Nonmetal
- Cooling System：Water Cooling
- Technical Class：Pulse Laser
- Laser Wavelength：355nm
- Laser Classification：UV Laser
Base Info
- Model NO.：IPS-LUV3 F
- Type：YAG Laser Marking Machine
- Marking Method：Scanning Marking
- Model：IPS-Luv5 F,IPS-Luv3 F,IPS-Luv10 F
- Laser Power：3W,5W,10W,15W
- Laser Gun Brand Name：Jpt 5W
- Other Brand：Inngu,Gain
- Laser Wavalenth：355nm
- Laser Frequency：10kHz-100kHz
- Linear Speed：8000mm,S
- Lens Size：110*110mm,175*175mm,200*200mm
- Weight：87kg
- Suitable for Material：Glass, PP, PE ,PVC, White Products
- Screen Size：10.4 Touch Screen
- Language：English Russian Thailand Korea Arabic Portuguese
- Other Language：Can Develop All Language Interface and Font
- Operation System：Android
- Overal Power：Less Than 2000 Watt
- Transport Package：Packed in Wood Carton
- Specification：780*600*1450MM
- Trademark：IPS
- Origin：China
- HS Code：8456110090
- Production Capacity：1000 Set,Month
Description
UV laser marking machine use the wavelength of 355nm ultraviolet laser, which has very small focus spot and can greatly reduce the mechanical deformation and processing heat effect of the material.UV laser is mainly used for ultra-fine marking, especially suitable for food, pharmaceutical, micropores punching, high-speed cutting of glass materials and the complex graphic cutting of silicon wafers.
UV laser marking is a kind of cold laser technology. The High-energy molecules of ultraviolet photons can directly separate molecules from metal or non-metallic materials which need to be processed, then this separation causes the molecules to be separated from the material so that the way they work does not produce any heat. This is very different from traditional fiber and carbon dioxide laser marking machines.
Differences from other laser marking machine

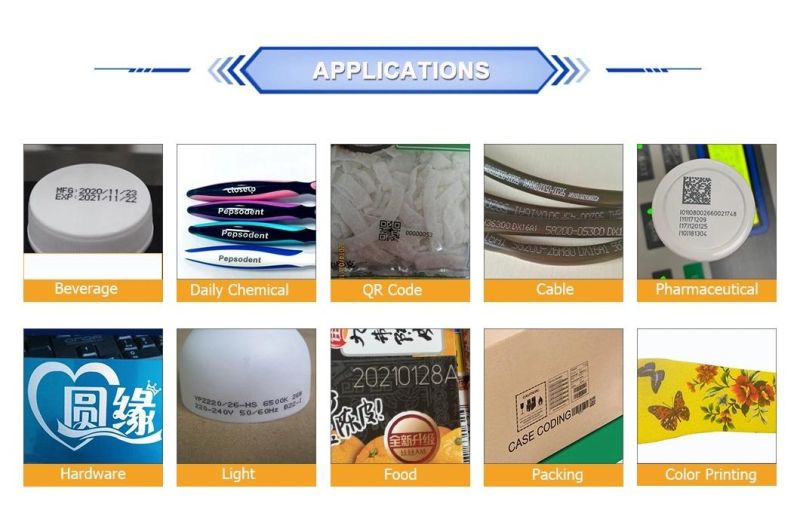

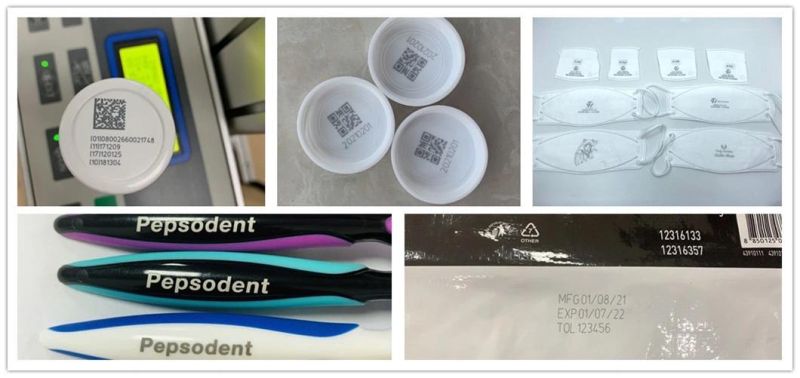

Cosmetics, mobile phones , pharmaceuticals, food packaging, metal, glass, plastic, polymer materials, construction materials, special ABS material, flexible PCB boards, plastic buttons, silicon wafer micropores, electronic component, communications equipment, LCD glass.
SPECIFICATIONS OF IPS-LUV3 FMODEL IPS-LUV3 F ( 5W Fly UV Laser Marking Machine) Laser power 3W Laser Gun Brand JPT Laser Wavelength 355nm Focus system Two Red Light with accurate position Scanning System Digital Scanning Galvanometer with high seep motor Indication System Inner Red Outline Indication Cooling System External Water Cooling Marking Size 75*75mm, 150*150mm, 200*200mm, 300*300mm Min Linewidth 0.01 MM Min Font Height 0.01 MM Repetition Accuracy +-0.002 mm Pulse Width <20 ns @30KHZ Pulse Repetition Rate 10-100KHZ Optical quality <1.2 Laser crystal working time Around 20000 hours Overall Power Around 2000 watt Power Supply 220V/50-60HZ/5A/1P Flying System 10.4 inch professional fly marking system based on Android Weight 87 KG File Format Support Support file from CORELDRAW,AUTOCAD,PHOTOSHOP directly. SupportAI,PLT,PCX,DXF,BMP file.
Support all fonts from windows system. Support automatic coding, serial no, batch no, real time, variable barcode and QR code and databases. Language support English,Russian, Thailand, Korea ,Arabic ,Portuguese ( Can develop all language)
UV laser marking is a kind of cold laser technology. The High-energy molecules of ultraviolet photons can directly separate molecules from metal or non-metallic materials which need to be processed, then this separation causes the molecules to be separated from the material so that the way they work does not produce any heat. This is very different from traditional fiber and carbon dioxide laser marking machines.
Differences from other laser marking machine- The wavelength of UV laser is only 355 nm, while fiber is 1064 nm and CO2 is 10.64 μm. When the wavelength is shorter, the laser bean is smaller and more precise, and the Heat-affected zone formed during processing is smaller also, which makes the marking accurate and fine.
- CO2 laser marking machine and fiber laser marking machine are physical marking method, but UV laser marking machine is a chemical processing method, mainly by photochemical reaction. The difference is that the physical processing method is mainly happed on the surface of the material, while by chemical processing method, the laser can proceed deep inside of the material.
- Fiber laser marking machine is mainly used in metal material. Due to the heat generated by its beam, it is not suitable for marking high-precision special materials. UV laser marking machine is particularly suitable for high-end market which need ultra-fine processing, such as marking of cosmetics, pharmaceuticals and other packages by polymers materials.
Cosmetics, mobile phones , pharmaceuticals, food packaging, metal, glass, plastic, polymer materials, construction materials, special ABS material, flexible PCB boards, plastic buttons, silicon wafer micropores, electronic component, communications equipment, LCD glass.
SPECIFICATIONS OF IPS-LUV3 F
Support all fonts from windows system. Support automatic coding, serial no, batch no, real time, variable barcode and QR code and databases.
