• Model NO.：PEDB-100A
• Laser Wavelength：Fiber Laser
• Laser Classification：Solid Laser
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Control：CNC
• Current：AC
• Laser Type：Fiber Laser
• Usage：Metal
• Engraving Machine Type：Fiber Laser Marking Machine
• Gross Weight：28kg
• Laser Power：20W
• Working Size：110*110
• Shipping：by Express or Air
• Delivery Time：5-7 Working Days
• Transport Package：Wooden Case with Exporting Standard
• Specification：70*20*50cm
• Trademark：Perfect Laser
• Origin：China
• HS Code：8456100090
• Production Capacity：100000 Sets, Month

Basic Info.

Model NO. PEDB-100A Laser Wavelength Fiber Laser Laser Classification Solid Laser Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Control CNC Current AC Laser Type Fiber Laser Usage Metal Engraving Machine Type Fiber Laser Marking Machine Gross Weight 28kg Laser Power 20W Working Size 110*110 Shipping by Express or Air Delivery Time 5-7 Working Days Transport Package Wooden Case with Exporting Standard Specification 70*20*50cm Trademark Perfect Laser Origin China HS Code 8456100090 Production Capacity 100000 Sets/ Month

Product Description

Perfect Laser-20w 30w 50 Watts Portable/Handheld Mini Desktop Small Metal Plate Stainless Steel IPG/MOPA/Raycus/MAX/JPT Fiber Laser Marker Engraving Marking Machines

(Model:PEDB-100A)
 Product Description:
Perfect Laser's Low Price Logo 20W Raycus Laser Marking And Engraving Machine adopts international most advanced technology and the laser source is fiber with Germany IPG technology, lifetime can reach 100, 000 hours, 8-10 years without any consumables and maintenance. The diode coupling with fiber to process pump, the pump light will course the particles reverse which can emit high quality laser beam. This is the best choice for the customers who have special requirements to the smallest & finest laser beam and character.


Product Features:
1. Best Marking Effect: The laser beam of fiber laser is fine and thin. It can provide the best marking effect among all the laser machine machines. Especially good in smallest character marking, such as mark on IC chip.
2. Deep Marking: Perfect Laser's Cheapest 20W30W Fiber Deep Engraving Laser Imprinting Machine can make deep marking up to 1.0mm on stainless steel and aluminum. While YAG and Diode marking only could mark 0.2mm-0.3mm.
3. Higher Accuracy: Fiber laser can reach unto 0.001mm precision, while diode only 0.01mm.
4.10 Years Long lifetime: We used the fiber laser module made by Germany IPG technology, the lifetime of the fiber laser device is 100, 000 hours, so the machine can be used for 8-10 years.
5. No consumables: Fiber laser machine can be used for 8-10 years without any consumables.
6. No need to adjust the laser path.
7. Free of Maintenance.
8. Use Integrated Air Cooling.
9. Low Power Consumption: Low cost, only 0.5kw/hour.
10. Small and compact: The volume of Perfect Laser's Cheapest 20W30W Fiber Deep Engraving Laser Imprinting Machine is small, only 0.15 M3.


Application Fields:
Application materials: Perfect Laser's Fiber Laser Marking Machine is widely for stainless steel marking, carbon steel marking, iron marking, aluminum marking, copper marking, brass marking, anodized and coated materials marking, etc., and non-metallic such as nylon marking, ABS/PVC/PC board marking, hard plastics marking, rubber marking, resin marking, ceramic marking etc. In the industries of electronic and communication products, IC products, electric lines, cable computer components and electric appliance,

Technical data of portableCheapest 20W30W Fiber Deep Engraving Laser Imprinting Machine:

Model	PEDB-100A Mini Laser Marking Machine
Laser Type	Fiber Laser (Brand:Max)
Laser Power	20w
Laser Wavelength	1064 nm
Beam Quality	M2<1.4
Modulation Frequency	30-60 khz
Carving Line Speed	0-8000 mm/s
Marking Speed	600-1000 Character / min
Focus mode	Manual / Auto
Minimum Line Width	0.02 mm
Minimum Character	0.15 mm
Marking Size	110mm×110mm (Standard) 70mm×70mm (Optional)
Repeatability	±0.002 mm
Cooling Method	Air Cooling
Use environment	Clean or less dust
Working Temperature	10-35 ºC
Machine Power	≤ 160 W
Voltage	AC220V±10%,50 HZ
Working Desk Size	270mm×210mm

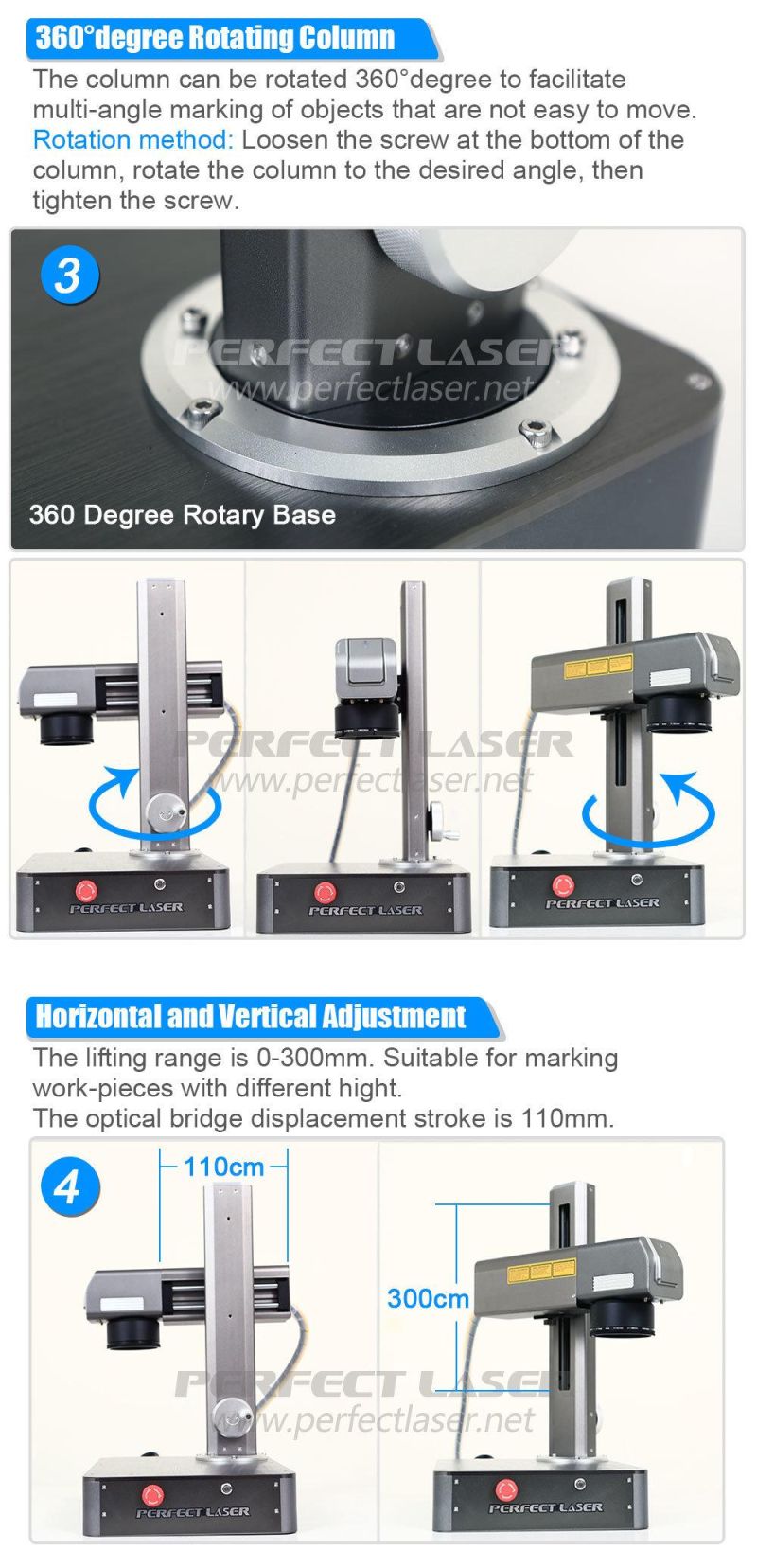

Lifting Range	0-300mm
Column Rotation Angle	360°
Light Bridge Displacement Stroke	110mm
Operating Temperature	0ºC-60ºC
Storage Temperature	-40ºC-85ºC
Humidity	5% -95% relative humidity, no condensation

After- Sale Service for cylinders Dot peen marking machine :

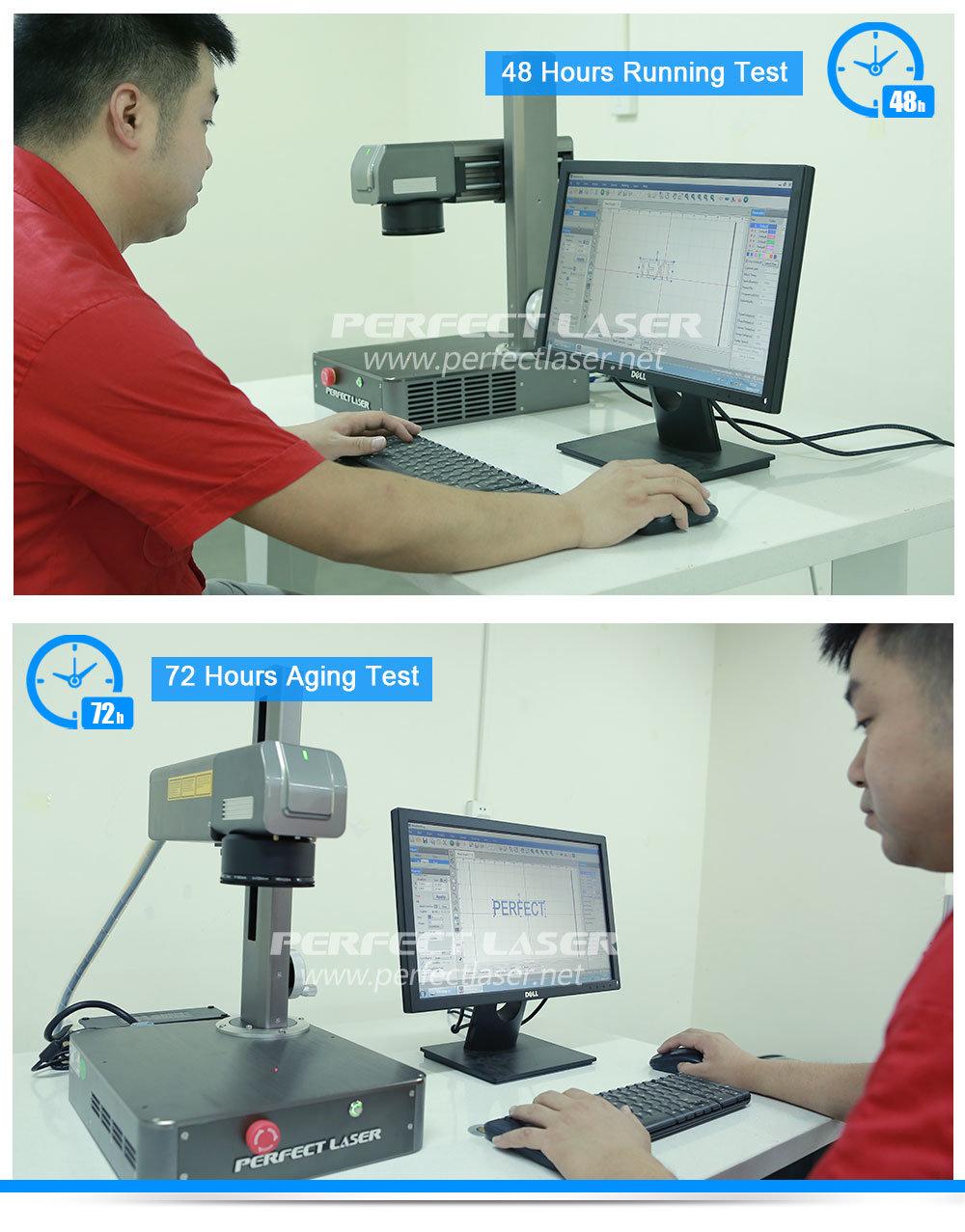

1> All of our machine will be full-checked by our quality control department before the shipment. We make sure that customers will be get good products from us. and all of our machine with a 12 months quality guarantee period.

2> We will supply brochures for simple trouble-shootings of the machine, which will help you dealing with the common problems happened to the machine. We will enclose an "Instruction Book", "Operation Manual" and "Training Video" (in English version) to you, which is easily understood and handle by the customer.

3> We will offer plenty of online supports, just like detailed technical and installation instructions by email, video, telephone and fax.

4> Our engineer can make a door-to-door instruction training service at your local site.
