Non-Metal Material Live Focus CO2 Laser Cutting Machine for Curving Wood Plate 900*600mm
Jinan Upgoal Mechanical Equipment Co., Ltd.- Warranty：1 Year
- Application：Leather Industry, Domestic, Carpentry, Printing & Packaging, Construction Industry, Molds & Dies, Crafts Industr, Advertising Industry
Base Info
- Model NO.：UG-9060L
- Cooling System：Water Cooling
- Technical Class：Continuous Wave Laser
- Automatic Grade：Semi-Automatic
- Applicable Material：Nonmetal
- Type：Flat-Plate
- Laser Classification：Gaseous Laser
- Engraving Method：Vector Engraving
- Working Area of Each Head：900*600mm
- Laser Type：CO2 Sealed-off Laser Tube
- Rated Laser Power of Each Head：130W( Reci W2 Model)
- Working Table：Knife Strip and Honey Comb, Double Working Table
- Driver and Motor Type：Leadshine Three Phases Stepper Motor and Driver
- Guide Rail：Linear Square Guide Rail, Csk, Taiwan
- Transmission Type：Belt Transmission(3m)
- Cutting Speed：0-10000mm,Min
- Control System：Ruida Rdc6332nm Non Metal Live Focus Control Syste

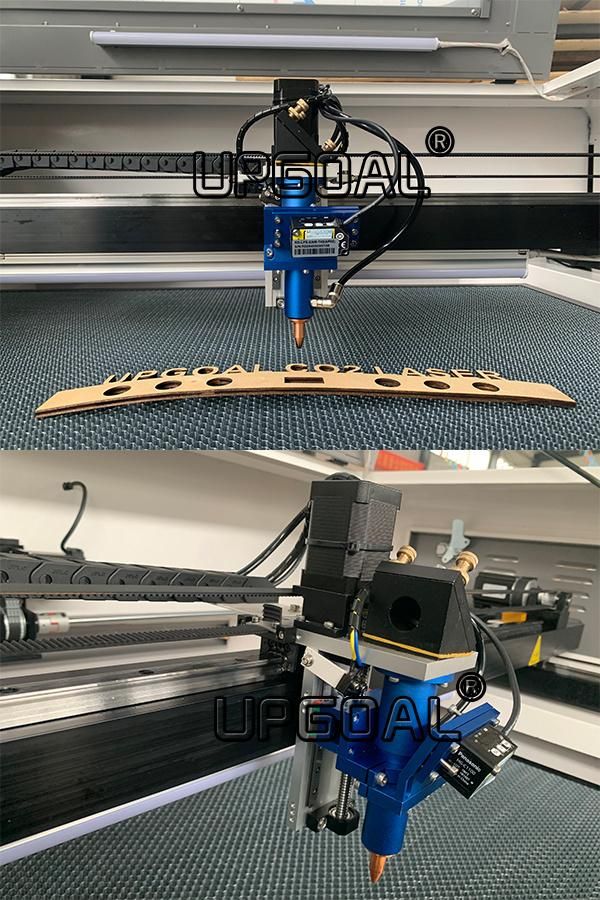

- Laser Head：Ruida Non-Metal Automatic Heightening Laser Head,
- Control Software：Rdworks V8
- Lifting Table：Auto Lifting, up and Down 300mm
- Focusing：Auto
- Positioning：Infrared Positioning
- Cooling：Industrial Chiller Cw-5200, Teyu, S&a
- Transport Package：Plywood Case
- Specification：1980*1340*1320mm, 300kgs
- Trademark：UPGOAL
- Origin：China
- HS Code：8456110090
- Production Capacity：250set Per Month
- Package size per unit product：198.00cm * 134.00cm * 132.00cm
- Gross weight per unit product：300.000kg
Description
Laser Tube
Adopted high quality Reci W6130W Co2 laser tube, long working time time and stable
Working Table
Honey Comb Table: applicable to various soft materials with good adsorption effect and low reflection ratio.
Knife Strip Table: With oxidation treatment and low reflection ratio Ensured cutting quality.
Auto Lifting Table for more thickness materials:Maximum Loading 50kgs with 300mm up-down distance.
Beam Path System
Adopting imported focus lens with high luminousness and mirror with high relativity ensure stable power transference.
Motion System
Imported High precision, low friction force and stand wear and CSK Taiwan linear square guide rails and blocks with 3M belt
ensured stable transmission, lower noise.
Operation System
Advanced USB port RuiDa RDC6332NM non metal live focus control system, non-metal automatic height adjustment laser control system, integrated non-metal automatic height adjustment device, can complete the automatic height adjustment processing of uneven or non-metal working surface. Supports auxiliary gas control.
With full-process automatic laser power attenuation compensation , ensuring the performance consistency of engraving/cutting. The High speed motion control program with pre-buffering function enhances productivity more.
Completely compatible with various CAD&CAM softwares such as AuotCAD, CorelDAW, supporting the designs directly exporting. With advanced Color management and defining the working turns with different colors , All or a part work can done in one time.
Rationalized placement of the electronic parts. Optimized heat dissipation effect.
Cooling System
Industrial chiller CW-5200, ensuring the laser tube long time continuous working.
Technical Parameters
Effective working area | 900*600mm |
Laser head | RuiDa non-metal automatic heightening laser head |
Hight controller | RD-LFS non-metal automatic heightening |
Laser Type | Co2 sealed-off laser tube |
Laser tube power | Reci W6 130W |
Working table | Honey comb and knife strip, double working table |

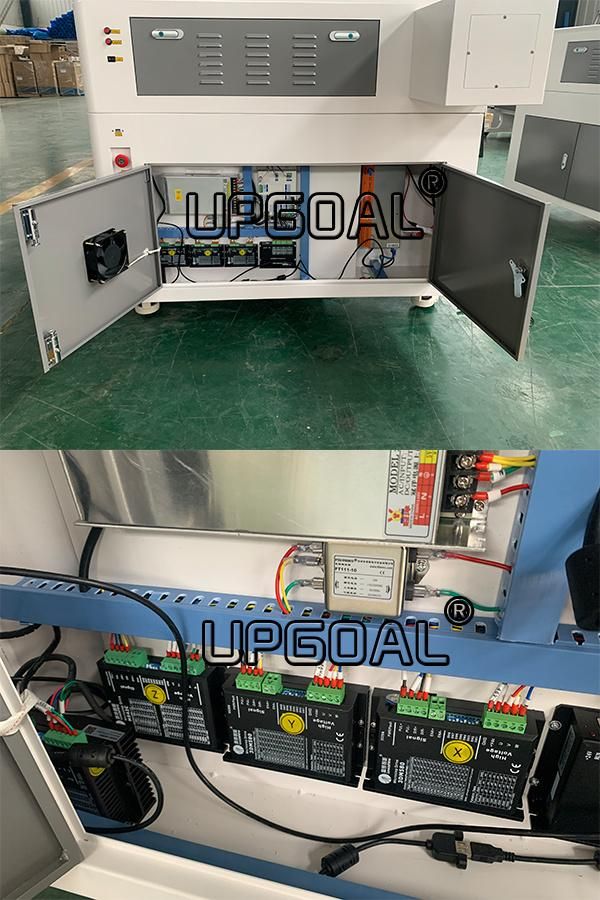

Driver mode | 3 phases stepper motor and Driver, Leadshine brand |
Guide rail | Linear square guide rail ( CSK,Taiwan) |
Transmission | Belt transmission |
Control panel | English |
Laser output control | 1-100% software setting |
Engraving speed | 0-60000mm/min |
Cutting speed | 0-10000mm/min |
Control system | RDC6332NM non-metal automatic heightening laser cutting and engraving control system |
Control software | RDWorks V8 |
Design software when delivery | CorelDraw |
Control panel | DSP offline |
Resolution accuracy | < 0.01mm |
Location precision | < 0.01mm |
Highest scanning accuracy | 2500DPI |
Type of cooling | Industrial chiller CW-5200 cooling |
Water protection system | Yes |
Blow-off system | Air pump and air blower |
Working temperature | 0-45 °C |
Operating humidity | 5-95% (without condensed water) |
Supporting picture format | PLT,DST,DXF,BMP, DWG,AI,LAS,etc |
Voltage | AC220/110V, 50/60Hz, single phase |
Certificate | CE/FDA |
Reference Working Videos
https://youtu.be/XrgeMkprhXM
https://youtu.be/xXqrIM2R2CA
Applications
Application Industry: Model Field(Construction Model,Aviation navigation model, wooden toys), advertising filed,decorative and decorating, craft gift industry, electronic, garments and leather industry, art glass industry, art glass industry,computerized embroidery and clipping, packaging and paper industry.
Main Cutting Materials: Acrylic, density board(MDF), double-color board, paper, plastic, rubber, cloth, wool, crystal, bamboo products, wooden products, etc
Materials Can work With: Organic glass, acrylic board (the paulownia, lightwood), bamboo products, Double-color board, paper, leather, ceramics, textiles, crystal, jade, coconut shells, horn, resin animal sebum, ABS plate, lamp shade and other non-metallic materials.
Reference Sample Photos
For more information, just feel free to contact us!
