• Model NO.：TXT-QX
• Medium Power Cleaner：200W , 300W
• High Power Cleaner：500W
• Laser Type：Fiber Laser
• Wavelength：1064nm
• Laser Cleaning Process：Non-Contact
• Custom Service：Available
• Frequency：20 - 50 kHz
• Length of Optical Fiber：10m , Customized
• Power Supply：110,230V, 50,60Hz
• Portable：Available
• Trolley：Available
• Production Line：Available
• Remover：Oil Rust Removal
• Transport Package：Plywood Case with Pallet Bottom
• Specification：680x450x530mm
• Trademark：TXT LASER
• Origin：China
• HS Code：8456100090
• Production Capacity：200 Sets Per Year

Basic Info.

Model NO. TXT-QX Medium Power Cleaner 200W / 300W High Power Cleaner 500W Laser Type Fiber Laser Wavelength 1064nm Laser Cleaning Process Non-Contact Custom Service Available Frequency 20 - 50 kHz Length of Optical Fiber 10m / Customized Power Supply 110/230V, 50/60Hz Portable Available Trolley Available Production Line Available Remover Oil Rust Removal Transport Package Plywood Case with Pallet Bottom Specification 680x450x530mm Trademark TXT LASER Origin China HS Code 8456100090 Production Capacity 200 Sets Per Year

Product Description



TXT-HX Series

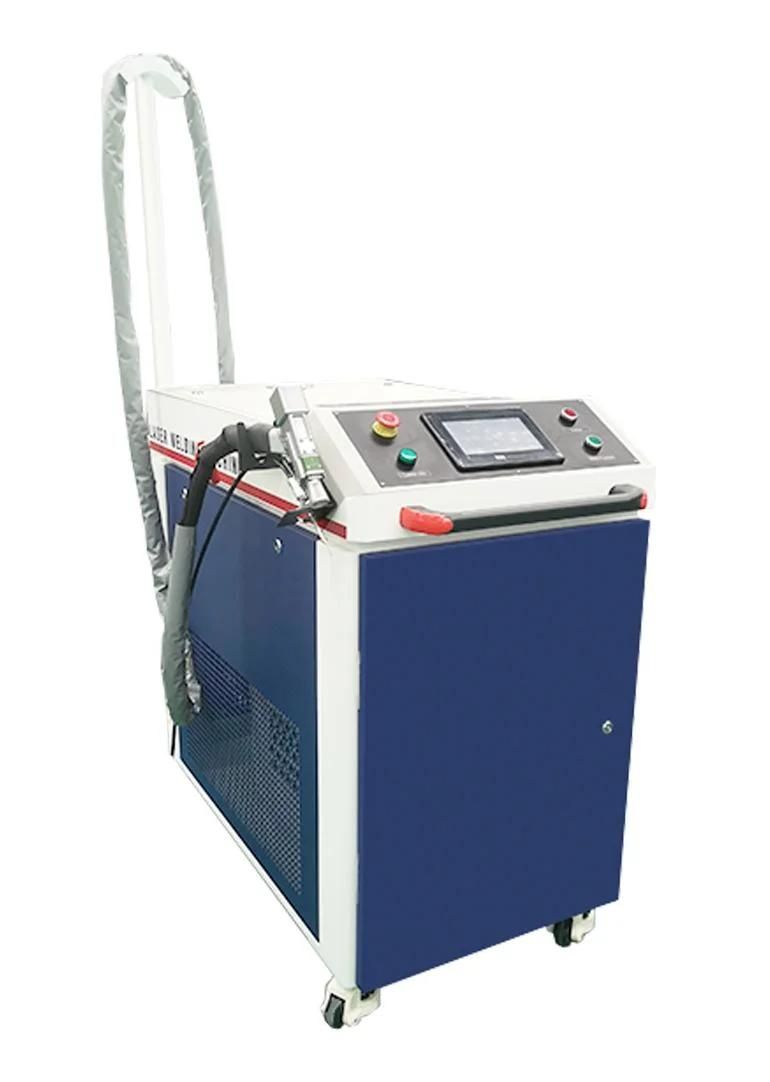

Handheld Laser Welding & Cleaning Machine TXT-HX-SC1000/1500/2000/3000

Product Description

The hand-held fiber laser welding machine changes the traditional welding method, using a high-intensity laser beam as the heat source for welding, and is equipped with a hand-held welding head to replace the previous fixed optical path. It has the advantages of simple operation, beautiful welding seam, fast welding speed and less consumables.

Wide welding range: The handheld welding head is equipped with 5m-15M original optical fiber, which overcomes the limitation of workbench space, and can be welded outdoors and long-distance welding

Multiple welding methods: Welding at any angle can be realized: overlap welding, butt welding, vertical welding, flat fillet welding, internal fillet welding, external fillet welding, etc., and can weld various complex welded work pieces and large work pieces with irregular shapes.

Good welding effect: laser welding has a higher energy density and can achieve better welding results. The welding area has little heat influence, is not easy to deform, black, and has traces on the back. The welding depth is large, the melting is sufficient, and it is firm and reliable.

Laser cleaning is an eco-friendly process used to remove rust, paint, oxide and other contaminants from metal surfaces. Because of its efficiency, it is being used in an increasing number of applications.


Technical Parameters



Machine Model	TXT-HX-SC1000/1500/2000/3000
Laser power	1000W 1500W 2000W 3000W(optional)
Laser wave length	1070 NM
Fiber length	Standard10M / Maximum 15M
Welding speed range	0~120 mm/s
Cooling way	Industrial water chiller
Working temperature range	10~40 ºC
Welding thickness range	0.5-3mm
Working voltage	AC 110 -220V±10%, 50-60Hz

Industry Applications

Mainly for the fixed position of large and medium-sized sheet metal, cabinet, chassis, aluminum alloy door and window frame, stainless steel wash basin and other large workpieces such as inner right angle, outer right angle, plane weld welding, small heat affected area during welding, small deformation, and welding depth Large and solidly welded. It is a new and more flexible welding process for long-distance welding of large workpieces.

It can be widely used in kitchen and bathroom industry, home appliance industry, advertising industry, mold industry, stainless steel product industry, stainless steel engineering industry, door and window industry, handicraft industry, household products industry, furniture industry, auto parts industry, etc.
