Laser Depaneling PCB Machine Cw- UV3030

Suzhou Chanxan Laser Technology Co., Ltd.
  • After-sales Service:Online Technique Support
  • Warranty:1 Year
  • Application:Petroleum Machinery Manufacturing, Aerospace Industry, Automotive Industry
  • Cooling System:Water Cooling
  • Technical Class:Continuous Wave Laser
  • Applicable Material:Nonmetal

Base Info

  • Model NO.:CW- UV3030
  • Structure Type:Gantry Type
  • Laser Classification:Free Electron Laser
  • Laser Technology:Laser Control Fault Cutting
  • Laser Source:UV
  • Transport Package:Wood Package
  • Trademark:Chanxan
  • HS Code:8456110090
  • Production Capacity:50000 Pieces,Year


Basic Info.

Model NO. CW- UV3030 Structure Type Gantry Type Laser Classification Free Electron Laser Laser Technology Laser Control Fault Cutting Laser Source UV Transport Package Wood Package Trademark Chanxan HS Code 8456110090 Production Capacity 50000 Pieces/Year

Product Description

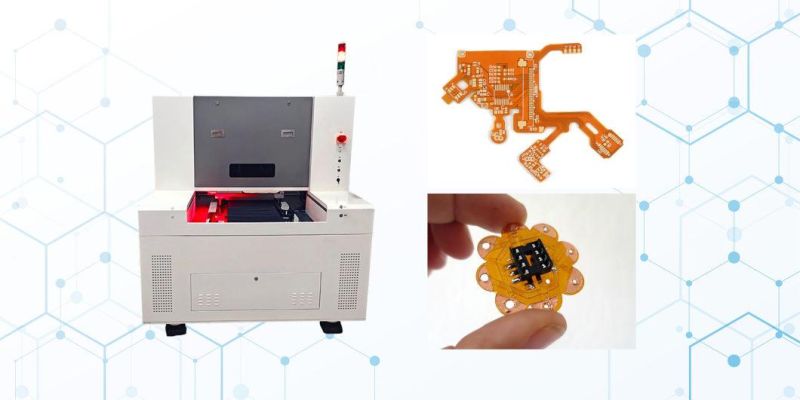

Laser Depaneling PCB Machine Cw- UV3030

Machine Feature:
 Efficient, fast FPC / PCB cutting, drilling and covering the window, fingerprint identification chip cutting, TF memory card sub-board, mobile phonecamera module cutting applications. Block, delimit, specify block or select area cut and form directly, cut edge neat rounded, smooth without burr, no overflow glue. Products can bearranged in a matrix for multiple automatic positioning cutting, especially for fine, difficult, complex patterns such as the appearance of cutting High-precision CCD automatic positioning, focusing, so that positioning fast and accurate, time-saving, high efficiency, fast delivery.High-performance laser: the use of international brands of solid-state UV lasers, with a good beam quality, focusing spot is small, uniform powerdistribution, thermal effect is small, slit width is small, high cutting quality is the perfect cutting quality assurance. Fast and high precision: High precision, low drift galvanometer with fast coreless linear motor system platform combination, fast cutting whilemaintaining the high accuracy of the order of microns. Fully automatic positioning: the use of high-precision CCD automatic positioning, high precision, without human intervention, simple operation, toachieve the same type of one-click mode, greatly improving production efficiency. Exhaust gas treatment system: suction system can cut all the exhaust gas to eliminate, to avoid the harm to the operator and the pollution of theenvironment. High degree of automation: galvanometer automatic correction, automatic focus, full automation, the use of laser displacement sensor automatically adjust the focus to the height of the table to achieve fast alignment, time-saving peace of mind. Easy to learn software: independent research and development based on the Windows system control software, easy to operate the Chinese interface,friendly and beautiful, powerful and diverse, easy to operate.
