100W 130W 150W CNC Large Format New CO2 Laser Cutting Engraving Machine 1300*900 mm for Wood Acrylic CE Certifited

Redsail Technology Co., Ltd.

After-sales Service：Lifelong of The Machine
Warranty：1 Year Warrantyfor Machine
Application：Leather Industry, Advertising Industry
Cooling System：Water Cooling
Technical Class：CO2 Laser Machine
Applicable Material：Nonmetal

Base Info

Model NO.：X1390C
Laser Classification：CO2 Laser Tube
Engraving Method：Vector Engraving
Working Size：1300*900mm (51" X 36")
Laser Tube Power：Reci 80W 100W 130W 150W
Adjustable Table：Yes, Electronic up and Down(0~7.87")
Two Way Pass Through：Yes
Voltage：110V~240V
Treated Material：Acrylic, MDF, Plywood, Leather, Cloth, Fur, Double
Cotroller：Topwisdom
Software：Rdworks
Red DOT Position：Optional
Transport Package：Wooden Box
Specification：51" x 36"
Trademark：Redsail
Origin：China
HS Code：8456110090
Production Capacity：3000PCS ,Year

Description

1. This machine is equipped with DSP Control System for RDdraw directly, also supports CorelDraw and Auto CAD and other advance software;2. Drive system with high precision linear guide and slide block, high precision ,wear resistance, small resistance, high speed;3. Arc-gear synchronous belt 3m,stable transmission, strong shock absorption ability and small noise;4. Red cross accurate position, convenient and quick in finding engraving and cutting position;5. Materials can extend through the front and rear doors to allow for a larger work product;6. Automatically adjust the focal length, improve the working efficiency and cutting speed under the premise of ensuring the cutting accuracy;7.Leadshine driver with stepper motor can improve high-speed performance, reduce noise and heat, etc., which can ensure the reliability of equipment operation and accurate positioning accuracy;8. Triple deceleration, making the cutting accuracy and curveof the processed object more accurate and smooth, and cutting small circles with higher accuracy;9. Operational speed, laser energy real-time tunable, and very easy for customers to operate;10. Supports continuous engraving after power failure, working hours preview (accurate to milliseconds, the working hour preview value is consistent with the actual work time);

100W 130W 150W CNC Large Format New CO2 Laser Cutting Engraving Machine 1300*900 mm for Wood Acrylic CE Certifited

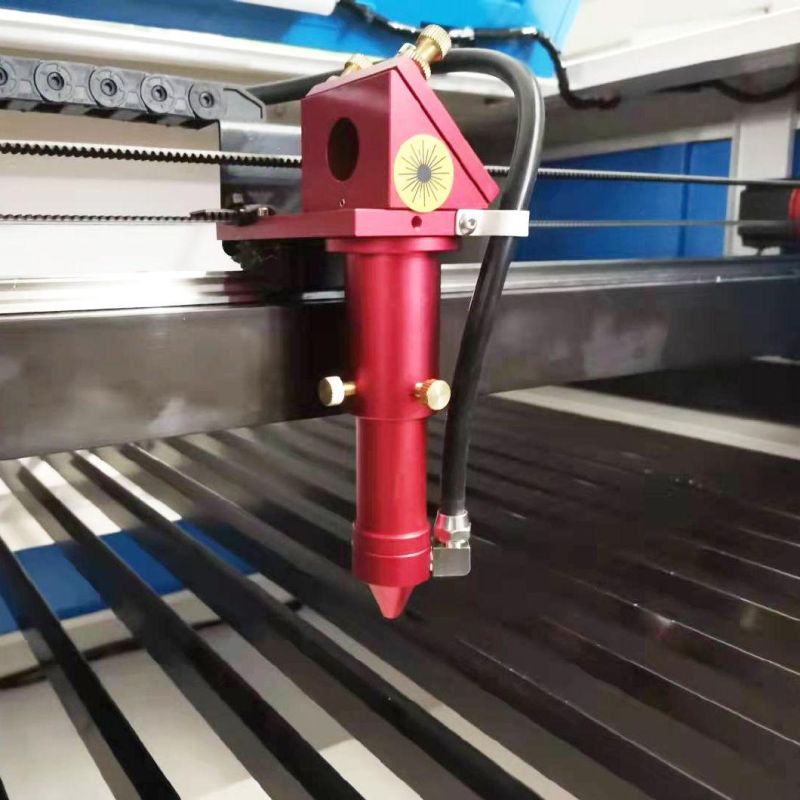

New Laser Head

1. Fully enclosed laser head, stable beam.

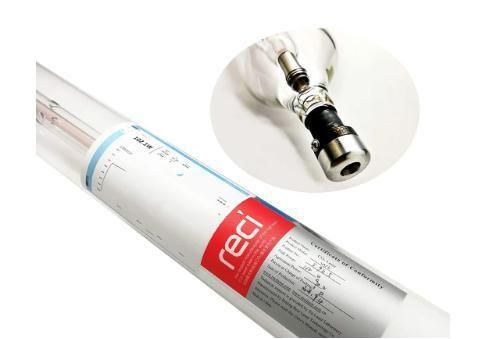

2. High engraving precision and fast movement 3. The combination of φ25 mirror and φ20 focusing lens makes the laser head light spot smaller and engraving precision higher.Qualified Laser Tube

1. Stable quality verified by market
2. Long life span, up to 10,000 hours
3. 30 ~ 40% high photoelectric conversion rate
4. Good dorectivity and frequency stability
5. Warranty 18 month, more reliable 100W 130W 150W CNC Large Format New CO2 Laser Cutting Engraving Machine 1300*900 mm for Wood Acrylic CE Certifited

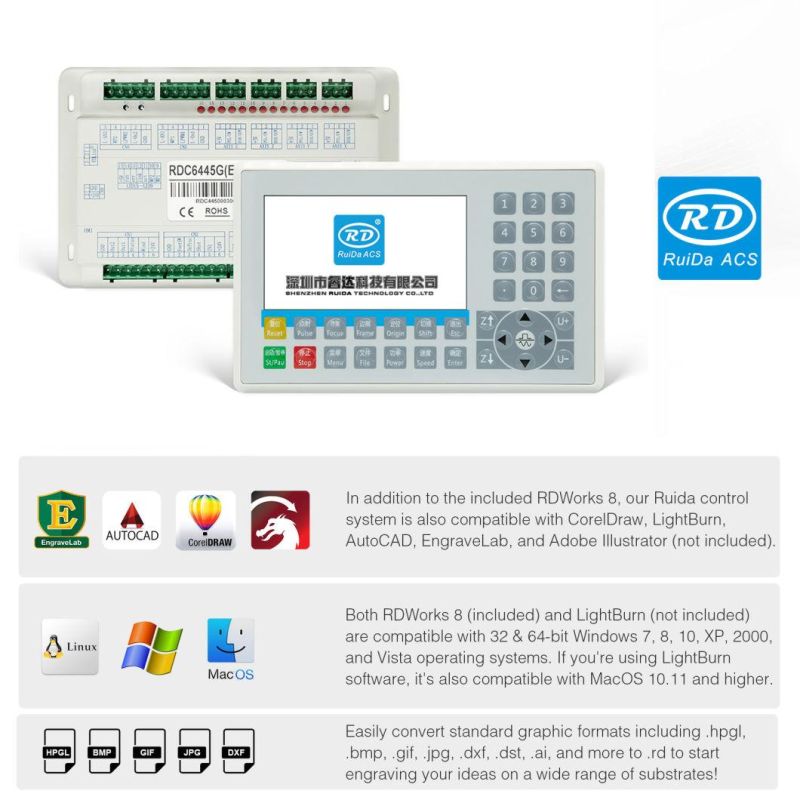

RUIDA Controller

1. Support the position location of feature recognition and MARK points.
2. True color TFT screen, accurately know the coordinate position of laser head processing on the panel
3. The file graphics saved in the memory can be previewed on the panel
4. Dynamic display of processing trajectory,coordinate points
5. The processing parameters of each layer can be directly modified on the operation panel, automatically saved for subsequent use
6. Support power-off and continuous carving, working hours preview

100W 130W 150W CNC Large Format New CO2 Laser Cutting Engraving Machine 1300*900 mm for Wood Acrylic CE Certifited
