Lansun Laser Cutting Machine CNC, Iron Aluminium Carbon Steel Metal Alloy Cutter, Mini Machinery Performance Industry Equipment, 30mx16m Big Cutting Area
Wuhan Lan-Sun Technology Co., Ltd.- After-sales Service：Offer
- Warranty：1 Year
- Application：Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Shoemaking Industry, Woodwork Industry, Advertising Industry
- Cooling System：Water Cooling
- Technical Class：Continuous Wave Laser
- Applicable Material：Metal
Base Info
- Model NO.：ZLF-3015P
- Structure Type：Desktop
- Laser Classification：Fiber Laser
- Laser Technology：Laser Flame Cutting
- Cutting Application：Metal Plate Cutting
- Control System：Cypcut,Weihong
- Cutting Torch：Laser,Plasma,Flame
- Cutting Materials：CS, Ss, Alu, Copperm, Metal Alloy
- Cutting Thickness：0.1~200mm
- Machine Precision：0.02mm
- Cutting Area：3m*1.5m,6m*2.5m,Customize
- Laser Brand：Raycus,Max,Feibo
- Laser Power：500W~20000W
- Plasma(Option)：Huarong,Huayuan,Hyperthem
- Plasma Current：65A,85A,120A,200A,300A,400A,500A
- Flame Gas(Option)：Oxy& Acetylene,Propane
- Drive & Motor：Servo Driver+Motor
- Work Voltage：220V,380V,415V
- Certification：CE&ISO
- Transport Package：Seaworthy Woodencase
- Specification：International standard
- Trademark：LANSUN
- Origin：China
- HS Code：84569010
- Production Capacity：800 Sets, Year
Description
LaserPower(kw) 1 1 1 3 6 3 6 3 6 3 6 3 6 12 20 6 12 20 12 20 12 20 12 20 20 20 Speed
(m/min) 1.3 1 0.8 0.9 1.9 0.8 1.6 0.7 0.9 0.6 0.9 0.6 0.8 1.4 1.6 0.5 0.8 1.3 0.4 1.1 0.2 1 0.15 0.6 0.4 0.3
Product ParametersNo. Items Requirement 1 Working temperature -5ºC-80ºC 2 Relative humidity 90% non-condensing 3 Surroundings Ventilation, no impact within 5 meters 4 Power supply voltage 220V±5%, 380V±5% 5 Power frequency 50Hz
2. Basic equipment configurationItem Characteristic Remark laser source High electro-optical conversion efficiency
High anti-reaction ability thin plate cutting is efficient
Output fiber length can be customized
Air-cooled or water-cooled optional
Maintenance-free operation
Wide modulation frequency range
Control SystemPulse frequency bus wiring mode saves installation space
Can directly drive solenoid valve
Software resolution reaches the micron level
Rich laser cutting process parameters
Flexible layout and toolpath editing
Servo drive + motorThe latest servo system
Smoother high-precision high-speed positioning
Speed response frequency
Deterioration diagnosis alarm model vibration compensation
Fully closed loop control
reducerAdopt high-precision planetary reducer, give full play to the characteristics of high-density servo motor, the full 360-degree range of the backlash is less than 5 arc minutes cutting head In addition to the function of quick and automatic adjustment of focus, it also has full-information status feedback. It can monitor the temperature of various optical lenses inside the laser head in real time, air leakage monitoring, and perforation status monitoring. All feedback information is uploaded to the PC terminal and mobile APP terminal in real time water chiller Intelligent constant temperature control mode
Automatically adjust parameters according to changes in room temperature
High temperature control accuracy
Dual temperature and dual control Desktop bed The whole is annealed;
Finished by high-precision large-scale gantry milling;
Ensure that the whole machine is strong and heavy without deformation
The overall accuracy error of the bed is within 0.02mm after finishing
The bed body is sprayed in strict accordance with the bottom layer anti-rust paint and top paint 4 layers
High-precision linear square guide rails are used both longitudinally and laterally; Japan SMC
Electric ratio
control unit Electronic signal for stepless control of gas pressure
Ensure accurate gas pressure for thicker plate cutting is to ensure the cutting effect
Has extremely high sensitivity and durability

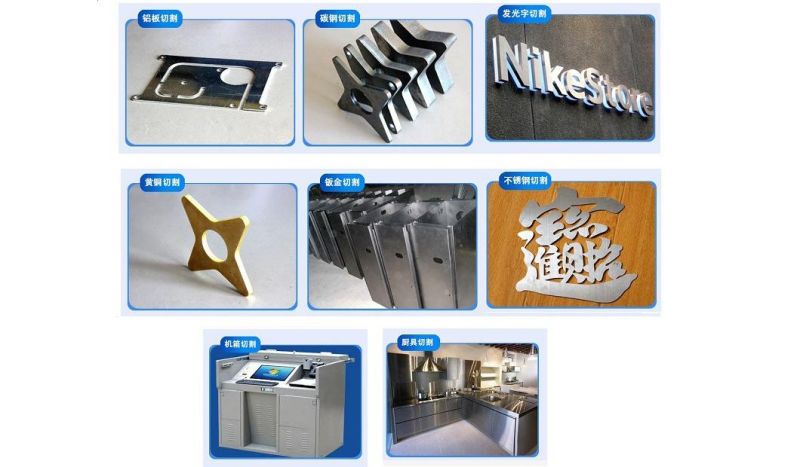

Cutting Samples
Our cutting system has a lot of cutting drawings,not only linearly cutting you also can cut the plate into different shaps easily by choosing and combining drawing from the system libarary.Packing&Delivery

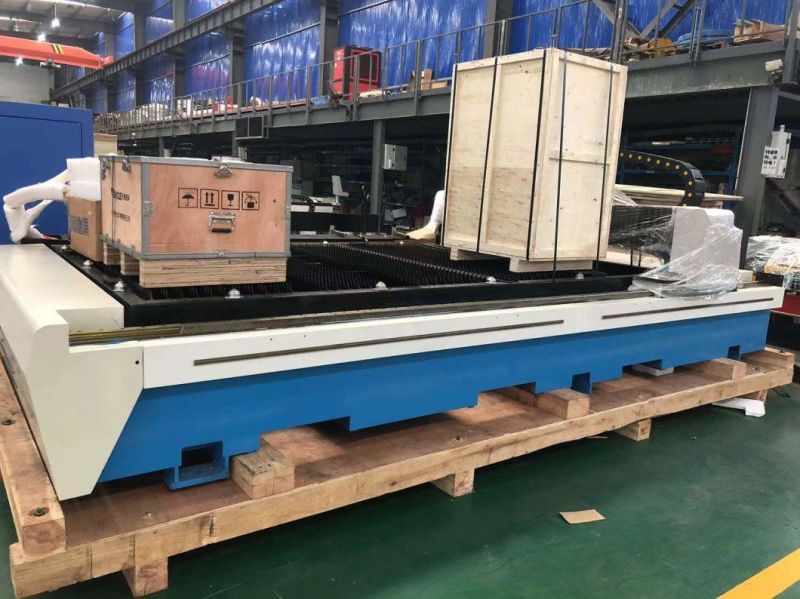

Machines will be packed in seaworthy wooden cases strengthed by metal straps.We can ship to your carrier in China or deliver to your oversea destination.Why Choose Us Wuhan Lansun was established by leading experts and Engineering faculty from the China University of Geosciences,and has been specializing in design and manufactur of CNC cutting & welding machines for over 30 years.

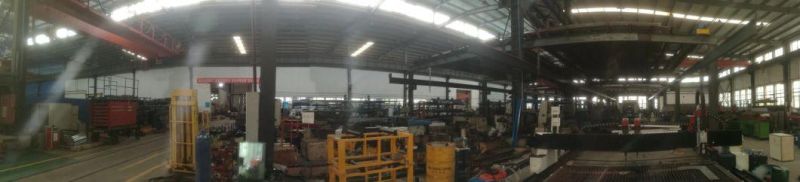

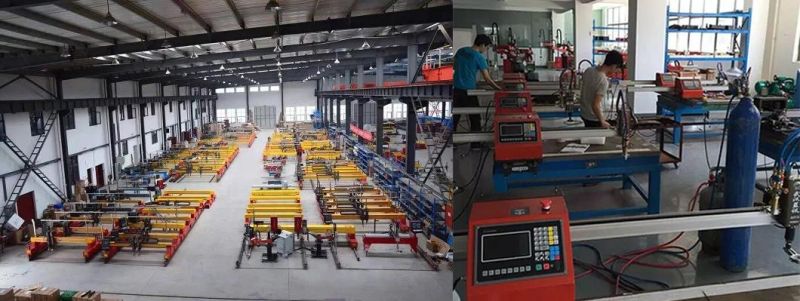

Our headquarter is located in the Wuhan East Lake High-Tech Development Zone.Lansun covers an area of 42 acres, and has 27000 square meters of facilities.We can manufacture 20pcs of machines per day. Our sales and service networks are throughout China and oversea.
Lansun has been designated as the base of teaching & research for the School of Mechanical Engineering and Electronic lnformation,China University of Geosciences. Our highly experienced R&D team keeps Lansun leading on the latest CNC cutting&welding technology,and continually launching leading machines into market.
Besides ISO,CE certification,our company also obtains a lot of inventation patents and software copyrights on CNC mechanism and controlling system.
As we are a factory,and our boss is professor from China University of Geology,we can control the R&D cost,manufacturing cost at a very low level and always can provide our customers with competitive prices.Factory can provide with instant and longterm after sale services.
FAQ1. Are you a factory or trading company?
We are a factory,we engage in CNC cutting/welding machine designing and manufacturing for nearly 30 years.
2. Where is your factory located? How can I visit there?
Our factory is located in Wuhan, Hubei,the centre of China,the traffic is very convenient,we can pick you up at airport or train
station.
3. What's the quality of your machines?
Our factory has been certified by ISO,CE.Products are designed by ourselves,moreover most of the components are manufuctured by ourselves as well,so we can make our machines of hight quality while at relatively lower prices.
4. What shall we do if don't know how to operate your machine?
We have detail installing and operating instructions attached, also comes with video.Our after sale service hot line will be
available for 24H everyday.
5. What other things are also needed after we buying your machines?
(1) You need to prepare for oxygen and fuel gas if you want to cut by flame
(2) You need to prepare plasma power and air compressor if you want to cut by plasma.We also can procure these periphery devices for you,but you need to additionally pay for them.
6. What are your payment terms?
We support T/T, L/C, Western Union and so on. Other ways may also be acceptable after we both sides appropriately discussed and agreed.
7. What if we have any problem with the machine?
We will get back to you with solutions with maxmum of 12 hours after receiving your description of what the problem is.During the warranty period(generally 12 months), in case faulty material found at our discretion we will be responsible to repair or change.This clause does not provide coverage for lost or destroyed materials.8.What are the advantages of this model machine?
(1)Dual drives gantry design,makes cutting head moving more stably,ensures higher cutting precision.
(2)Equip with plasma torch and flame torch,can cut different thickness and different kinds of metals,eg.,can cut carbon steel up to 200mm.If customer would like, we also can additionally equip it with laser cutting torch.
(3)Automatic ignition when cutting by flame.
(4)The cutting size can be customized according to customers' requirements.
