• Model NO.：1390
• Structure Type：Gantry Type
• Laser Classification：CO2 Laser Tube
• Laser Technology：Laser Control Fault Cutting
• Power：60,80,100,130,150
• Drive Type：Stepper Motor
• Engraving Machine Type：Auto Feeding Laser Cutting Machine
• Control：CNC
• Current：AC
• Laser Type：CO2
• Usage：Plastic,Acrylic,MDF,Plywood,PVC,Leather,Bamboo
• Certification：CE
• Condition：New
• Transport Package：Exporting Plywood Package
• Specification：CE. SGS
• Trademark：ZHONGKE
• Origin：Jinan, China
• HS Code：8456100090
• Production Capacity：1000 Sets Per Year

Basic Info.

Model NO. 1390 Structure Type Gantry Type Laser Classification CO2 Laser Tube Laser Technology Laser Control Fault Cutting Power 60/80/100/130/150 Drive Type Stepper Motor Engraving Machine Type Auto Feeding Laser Cutting Machine Control CNC Current AC Laser Type CO2 Usage Plastic/Acrylic/MDF/Plywood/PVC/Leather/Bamboo Certification CE Condition New Transport Package Exporting Plywood Package Specification CE. SGS Trademark ZHONGKE Origin Jinan, China HS Code 8456100090 Production Capacity 1000 Sets Per Year

Product Description

  JINAN ZHONGKE CNC EQUIPMENT Co.,Ltd has over 14 year expericence,
which specialize in producing laser machine and laser tube.We are the first company that can produce laser machine and laser tube in China.
We can produce laser machine and laser tube according to your requests.Our laser model includes
Please feel free to contact us if you have any plan for laser machine and laser tube

Machine details photos







Effective working area	1300*900mm
Laser Type	Co2 sealed-off laser tube
Laser tube power	W6series, Reci, Beijing (Rated power: 130W, max. Power: 160W)
Working table	Knife strip
Driver mode	3 phases stepper motor and Driver, Yako brand
Guide rail	Linear square guide rail ( Hiwin,Taiwan)
Transmission	Belt transmission
Control panel	English
Laser output control	1-100% software setting
Engraving speed	0-60000mm/min
Cutting speed	0-10000mm/min

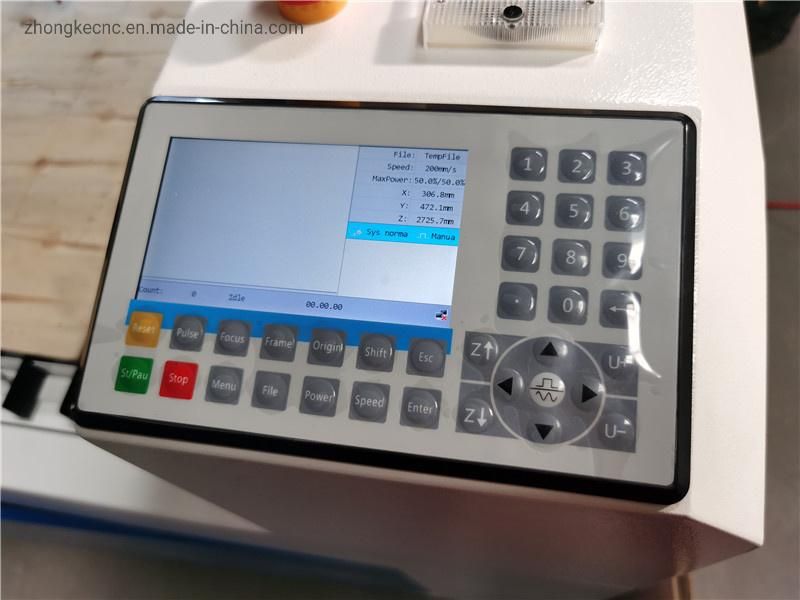

Control system	RuiDa RDC6445G
Control software	RDWorks V8
Wifi connection	Yes
Design software when delivery	CorelDraw
Control panel	DSP offline
Resolution accuracy	< 0.01mm
Location precision	< 0.01mm
Highest scanning accuracy	2500DPI
Type of cooling	Industrial chiller CW-5000 cooling
Water protection system	Yes
Focus	Manual focus
Blow-off system	Air pump (138W)for the laser head Air blower (550W*2) for the machine
Working temperature	0-45 °C
Operating humidity	5-95% (without condensed water)
Supporting picture format	PLT,DST,DXF,BMP, DWG,AI,LAS,etc
Voltage	AC 220V/110V,  50/60Hz, single phase
Certificate	CE/FDA

Applications

Application Industry: Model Field(Construction Model,Aviation navigation model, wooden toys), advertising filed,decorative and decorating, craft gift industry, electronic, garments and leather industry, art glass industry, art glass industry,computerized embroidery and clipping, packaging and paper industry.

Main Cutting Materials: Acrylic, density board(MDF), double-color board, paper, plastic, rubber, cloth, wool, crystal, bamboo products, wooden products, etc

Materials Can work With: Organic glass, acrylic board (the paulownia,  lightwood), bamboo products, Double-color board, paper, leather, ceramics, textiles, crystal, jade, coconut shells, horn, resin animal sebum, ABS plate, lamp shade and other non-metallic materials.
