• Model NO.：LS-YLP-20,30,50L
• Laser Wavelength：Fiber or CO2 or UV
• Laser Classification：Semiconductor Laser
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Model：Ls-Ylp-20L
• Laser Power：20W, 30W, 50W, 60W
• Power Consumption：<500W
• Wavelength：1064nm
• Engraving Range：Max 400*400mm(Customized)
• Engraving Depth：1.2mm
• Minimum Line Width：0.012mm
• Minimum Character：0.1mm
• Repeated Accuracy：+-0.003mm
• Life of Laser Module：100000hrs
• Certificate：CE,FDA
• Operating System：Touch Screen
• Cooling Mode：Air Cooding
• Applied Material：Metal,Nonmetal
• Original：Dongguan Factory
• Transport Package：Wooden Case
• Specification：900*800*1590
• Trademark：HiSpeed or Customized
• Origin：China
• HS Code：8456100090
• Production Capacity：100 Sets , Month

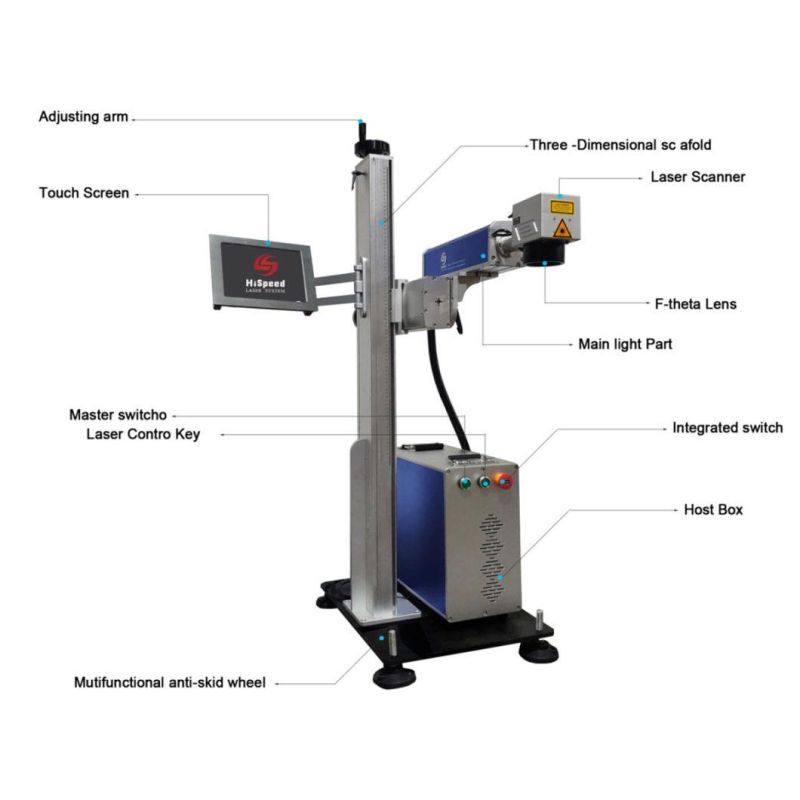

Detailed Photos

Marking on FMCG packaging goods and other sectors such as :

• Company Profile





  Other Products



  Certifications



  Packaging & Shipping










  FAQ

  Q1: What's the warranty?
  A1: Two years for laser source, one year for other parts, change or repair the broken parts during warranty, our
  FAE will teach you how to remove the broken parts by video.
  Warranty excluding man-made damage.
  We are real warranty based series number on the machine, not false or empty promises, any too long time warranty
  is unreliable, ourt warrannty is effective and enforceable.

  Q2: What's the package?
  A2: We have 3 layers package. For the outside, we adopt wood craft case.
  In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer,
  the machine is covered by thickening plastic
  Bag for waterproof.

  Q3: How to install and run the machine?
  A3: You will get details in user manual, you only need install the column with laser path and put on monitor of computer.
  You will get a CD of orginal marking software and online video about basic operation.
  You also will get a software operation manual and you can be a laser marking master after reading and practics.
  You can send your questions to our online after-serive 24 hours.

  Q4: How can I know the machine is what exactly I need?
  A4: Please send us your material photo, marking speed demand, marking size demand and so on,
        you will get a promptly help from us.

  Q5: Can you give a discount?
  A5: No, because quality can't be discounted, but you can choose simple basic version for your application, please contact our sales to know more.

  Q6: How you can keep your quality.
  A6: Strict production process with four times checking from metal parts, optical components, installing specification to whole machines' 12 hours burning.
  Meet CE, FDA, and IEC standards, you will get a unquestionably reliable machine from CKD LASER! Your every peny is deserve.



  Contact Us

  Get Contact with us Now!

  Please advise us following inforamtion to recommend you most suitable machine:

  1.What's kind of material do you want to mark? metal parts or non metal material?
  2.What's the max working area do you need? we can provide you with 110*110mm, 175*175mm, and 220*220mm, 300*300mm, or customized as your demand
