• Model NO.：CNMANLASER-F20W
• Laser Classification：Engraving Machine
• Type：Laser Printing Machine
• Marking Method：Scanning Marking
• Current：AC
• Min.Line Width：0.11mm
• Min.Character Size：0.15mm
• Marking Area：110*110mm,175*175mm,300*300mm
• Operating Voltage：220V
• Output Fiber Delivery Length：3m
• Liner Speed：7000mm,S
• Power Supply：220V,50Hz,10A
• Laser Power：Raycus
• Laser Module Life：100000 Hours
• Transport Package：Wooden Case
• Specification：20W Laser marking machine
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：5000 Sets,Year

Basic Info.

Model NO. CNMANLASER-F20W Laser Classification Engraving Machine Type Laser Printing Machine Marking Method Scanning Marking Current AC Min.Line Width 0.11mm Min.Character Size 0.15mm Marking Area 110*110mm/175*175mm/300*300mm Operating Voltage 220V Output Fiber Delivery Length 3m Liner Speed 7000mm/S Power Supply 220V/50Hz/10A Laser Power Raycus Laser Module Life 100000 Hours Transport Package Wooden Case Specification 20W Laser marking machine Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 5000 Sets/Year

Product Description

20W CNC Economic High Efficiency Fiber Laser Marking Machine for Metal/Plastic/PVC/Composites/Chrome

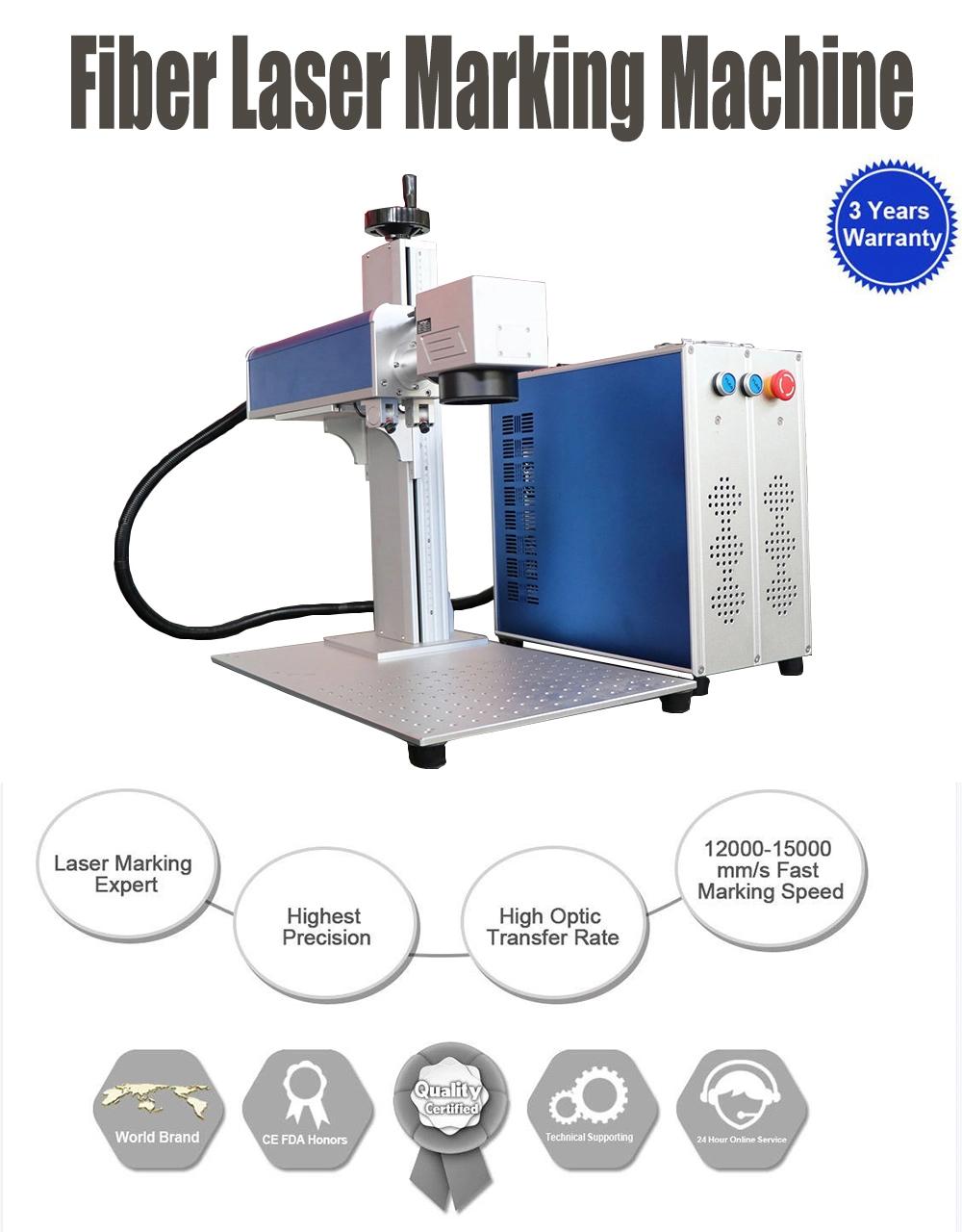

20W Fiber Laser Marking Machine Product Description:
Fiber laser making machine is one of the most advanced laser marking equipment in the world nowadays, because the features of stable output power, great optical model, excellent quality of laser beam, fast working speed and best marking effect and efficiency. Also, it is easy to operate, has no wearing parts, low power, consumption, more incomparable advantages like:better and thinner marking lines, capable of being applied into ore advanced industries needing higher demand of depth, smoothness and precision, in order to perfectly meet requirments of consecutive working in industries.

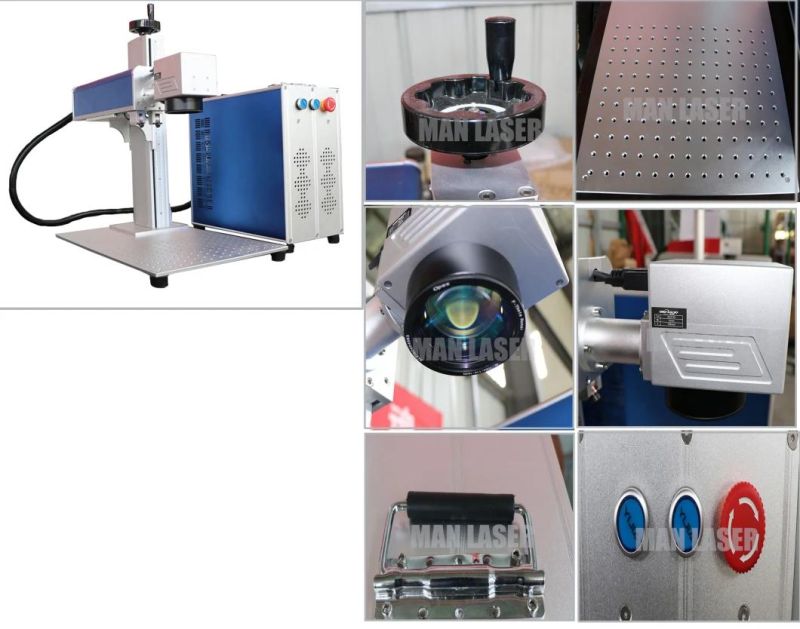

1.Germany Made Fiber Laser Sources>> A Wide Selectivity of Operating Wavelengths, Ultra-Low Amplitude Noise, High Stability and Ultra-Long Lifetime

2. Digital Galvanometer Laser Scanning Head with Fast Marking Speed>>Fast Response Ability <0.7ms, High Speed Marking and High Precision.

3. Focus Mirror>> Singapore famous "Wavelength" brand, Fast speed, high transparent rate

4. Control System>> EZ-CAD control system with stable performance and high reliability. More than 10,000 sets of equipment are using EZ-CAD control card, shield-utilizing parts of complex functions, ensuring higher stability.

5. Red Light Pointer>>Adopt red light pointer to show the laser path since laser beam is in-visible.

6. 3D Working Table>> Made up by Precision Alloy and Imported Precise Beeline Device, can be lifting and shifting from left to right. Easy to adjust the laser focus distance.

7. Laser Power Supply>> Adopt Taiwan Famous brand, Stable performance, long life span.

8. Portable Handle>>Easy to held the machine by hand.

9. Emergency Stop>> Press it when meets error, the machine will stop working immediately to avoid losses.

10. Key Switch>> Using key swith to control the power of the machine.

11. Main Switch>> It is designed as a easy button, safe and efficient.

Model	MAN-F10/20/30/50
Laser power	10W/20W/30W/50W
Laser Wavelength	1064±10nm
Q-frequency	20KHz~100KHz
Divergence	0.3mard
Marking range	110*110mm/150*150mm/200*200mm/300*300mm
Minimum line width	0.01mm
Minimum character	0.1mm
Marking speed	7000mm/s
Marking depth	0 ~1mm
Engraving line speed	≤7000mm/s
Repeatability accuracy	±0.001mm
Beam quality	M2:1.2~1.8
Marking Format	Graphics, text, bar codes, two-dimensional code, automatically marking the date, batch number, serial number,frequency,etc.
Graphic format supported	bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc.
working voltage	220V±10%/50Hz/4A
Unit power	0.5kw
Working environment	Clean and dust free or dust less
Working (Humidity)	5%-75%,free of  condensed water
Laser module life	100000 hours
Net weight	35kg
Warranty	36 months

20W laser marking machine applicable lndustries:
Electronics and communication tools , IC chips, computer accessories and electrical appliances, all kinds of precise conponents, hardware tools, instrument and meter, aerospace devices, jewelry, clocks, gifts, office supplies, trademark
signs, sanitary ware, table ware, food, beverages , tobacco and alcohol and many other industries for marking logos, symbols, words, and also can be used in production line for mass quantities work.


Applicable Materials:

Metals and alloys (iron, copper, aluminum, magnesium, zinc and all other metals),plastics,rare metals and alloys (gold, silver,titanium), metal oxides (metal oxide may be), special surface

treatment(Phosphatize, aluminum anodizing, electroplating the surface), ABS material (electrical appliances shell, daily necessities), ink (translucent keys, print products), epoxy resin

(electronic components, packaging, insulation layer).etc.









1) Free Training by VCD:We will supply the machine with <Training VCD> , <User's Manual> and <Instruction Book> in English for installing, operation, maintenance and trouble-shooting, and shall give technical guide by E-mail, fax, telephone, MSN, ICQ and so on, when you meet some problems of installation, using or adjusting.(Recommend)

2) Free Training Factory:You can send operator to laser marker factory for free training. Laser marker will offer professional guide for free.It is direct and effective face-to-face training.Here we have well-assembled equipments, all sorts of tools and testing facility.
Training Time:2-3 days (Recommend)

3) Our engineer can do a door-to-door instruction training service at your local site.We need your help to deal with the visa formality, prepaid traveling expenses and accommodation to us during the business trip and service period before their dispatch.It's better to arrange a translator for both of our engineers during the training period.

Quality Guarantee and After-sales Services
1)The guarantee period of quality shall be 12 months counting from the date on which the commodity arrives at the port of destination.Except the damage artificially and laser krypton lamp, we are responsible for offering the fittings free of charge during the guarantee period.While user is kindly requested to send the damaged fittings to us by courier with your charge before we send back the alternative fitting parts.After the guarantee of quality period, the parts required repairing or change, if any, shall be reasonable charged.
2)We will give technical guide by email, fax and telephone when user meets some problems on installation, operation, adjusting, maintaining.
3)We offer technical supporting to ensure safety using & maintenance for user:
Operation manual for installation, adjusting, operation, maintaining;
Professional marking software;

20W Fiber Laser Marking Machine Packing
