6090 1390 1610 1325 CO2 Laser Cutting/Cutter/ Engraver for Acrylic/ Wood/ Leather/ Paper /MDF 100W/130W/150W CO2 Laser Engraver

Jinan Unistar Machinery Co., Ltd.
  • Application：Leather Industry, Domestic, Crafts Industr, Advertising Industry
  • Cooling System：Water Cooling
  • Technical Class：Pulse Laser
  • Automatic Grade：Automatic
  • Applicable Material：Nonmetal
  • Type：Flat-Plate

Base Info

  • Model NO.：USJ1390
  • Laser Classification：Gaseous Laser
  • Engraving Method：Vector Engraving
  • Working Area：1300mm*900mm
  • Laser Tube Brand：Beijing Reci,Yongli
  • Control System：Ruida Control System
  • Rails：Taiwan Hiwin Square Rails
  • Transmission：Belt Transmission
  • Table：Blade Table and Honeycomb Table
  • Cooling Type：Water Chiller 3000,5000,6000
  • Laser Tube：150W,130W,100W,80W
  • Software：Autocad Design Software
  • Working Voltage：220V 50Hz -60Hz
  • Motor and Drivers：Stepper Motor and Drivers
  • Option Parts：up Down Table ,Rotary
  • Machine Warranty：1 Year
  • Transport Package：Strong Plywood Case
  • Specification：1300mm*900mm
  • Trademark：UNISTAR
  • Origin：China
  • HS Code：8456110090
  • Production Capacity：1000pieces,Year

Description

USJ-1390  Laser MachineLaser typeCO2 laser tubeWorking area1300mm*900 mmPlatformBlade table  Laser tube powerBeijing Reci 150w (Opition:60w/90w/100w/130w/180w)Laser tube working time10000 hours , warranty time is 18 month Control systemRD Control System CoolingWater chiller CW5200 (Opition:CW3000)X,Y axis transmissionTaiwan Import Square Linear GuideAir pumpflow can be 38 L / MinMotor and drivers Stepper motor and driversTransmissionShanghai Fulong Belt transmission  Exhaust fan (extra)250W Table Blade tableEmergency Stop ButtonYesLimit switchYesAuto Focus With auto focus Air assistIt is to remove excess heat and combustible gases from the cutting surface.Red dot pointerSince the laser beam is invisible , this function can allow you have a visual reference for locating where the laser will fire.Laser focal length6.35cmProtectionEmergency stop button and Stop working when water broken.Cutting depth0-15mm (different material differ)Engraving speed0-500mm/sCutting speed0-50mm/sLocating precision<0.02 mmMin shaping character2*2mm, Letter 1* 1mmWorking temperature5'C-45"CWorking humidity 5%-95%Resolution ratio< 1000dpiData transfer interfaceUSB 2.0 (offline)Power supplyAC 220V (110V country comes a transformer)Operation systemsWindows8, 7 (64 or 32 bit), XPWork softwareRd works V8Graphic FormatAI,DXF PLT,DST,DSB .EPS BMP ,RDB,GIF JPG,PNG,MNG,ICO,CUR,TI[F ,TGA,PCX,WBMP ,WMF. EMF ,JBG, PGX,RAS, PRUM,SKA,RAWWarranty1 Year ( technical support all covered by warranty. )Laser tube Power50w60w80w100w130w150w280wWood3mm5mm6mm8mm12mm15mm24mmMDF1mm2mm2.5mm4mm5mm7mm17mmPlywood3mm5mm6mm8mm12mm15mm24mmPlastic2mm4mm5mm8mm10mm15mm24mmRubber1mm1.5mm2mm3mm4mm5mm10mmAcrylic4mm6mm8mm10mm15mm17mm26mm

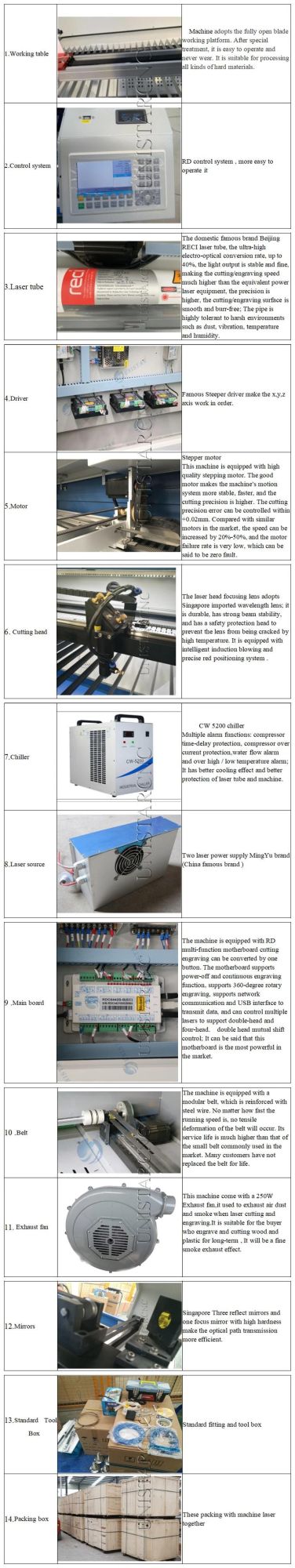

2>Feature with picture
6090 1390 1610 1325 CO2 Laser Cutting/Cutter/ Engraver for Acrylic/ Wood/ Leather/ Paper /MDF 100W/130W/150W CO2 Laser Engraver

 Detailed configuration
6090 1390 1610 1325 CO2 Laser Cutting/Cutter/ Engraver for Acrylic/ Wood/ Leather/ Paper /MDF 100W/130W/150W CO2 Laser Engraver

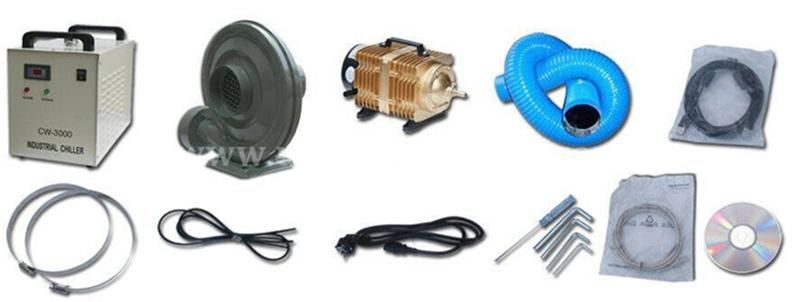

3>Shipping machine parts

 1. Industry water cooling system
 2. Air Pump
 3. Communication cable
 4. Water chiller 3000
 5. Reflect optics (installed in the machine)
 6. 2 Focus optics (installed in the machine)
 7. 2 Laser tube scale
 8. Other tools

6090 1390 1610 1325 CO2 Laser Cutting/Cutter/ Engraver for Acrylic/ Wood/ Leather/ Paper /MDF 100W/130W/150W CO2 Laser Engraver

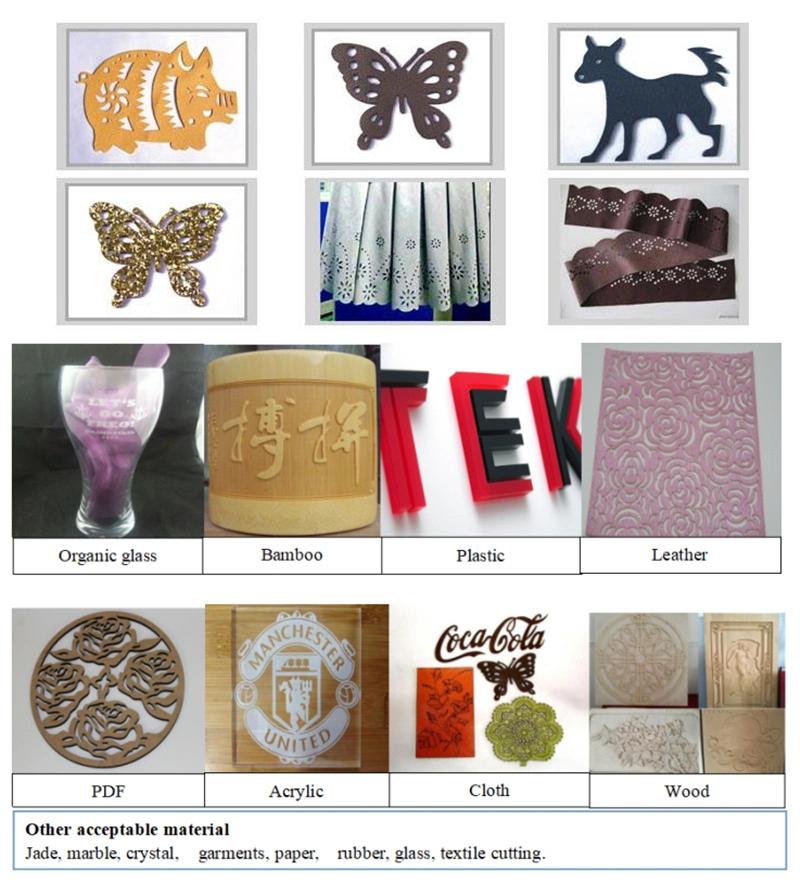

4>The Laser machine cutting samples
6090 1390 1610 1325 CO2 Laser Cutting/Cutter/ Engraver for Acrylic/ Wood/ Leather/ Paper /MDF 100W/130W/150W CO2 Laser Engraver

5>Machine Packing and Shipping
6090 1390 1610 1325 CO2 Laser Cutting/Cutter/ Engraver for Acrylic/ Wood/ Leather/ Paper /MDF 100W/130W/150W CO2 Laser Engraver

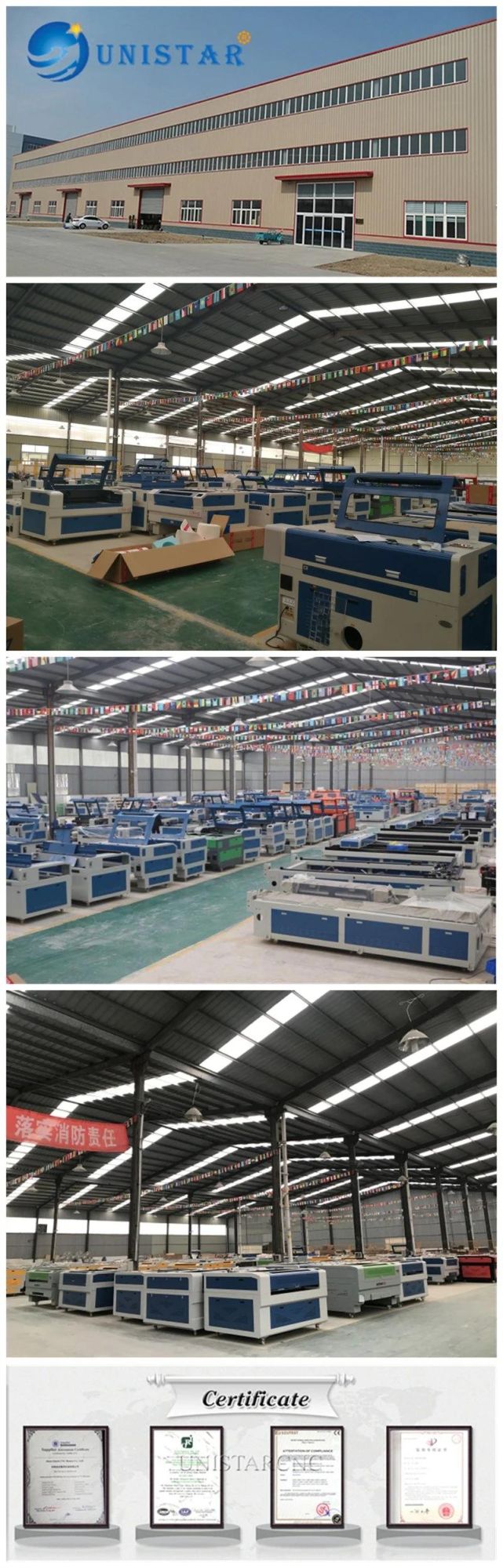

6>Factory show
6090 1390 1610 1325 CO2 Laser Cutting/Cutter/ Engraver for Acrylic/ Wood/ Leather/ Paper /MDF 100W/130W/150W CO2 Laser Engraver

7>The customers visit our factory
6090 1390 1610 1325 CO2 Laser Cutting/Cutter/ Engraver for Acrylic/ Wood/ Leather/ Paper /MDF 100W/130W/150W CO2 Laser Engraver6090 1390 1610 1325 CO2 Laser Cutting/Cutter/ Engraver for Acrylic/ Wood/ Leather/ Paper /MDF 100W/130W/150W CO2 Laser Engraver

Pre-sale service:

1. Free inquiry and consulting support.

2. Free sample testing.

3. 24 hours detection process by professional testing equipment and facilities before shipment.

After-sales service:

1. 1 years warranty for the machine.

2. Free "instruction manual" and "operation video".

3. Free online training for installation and operation.

4. Lifetime technical support by e-mail, phone or video.

5. Provide door-to-door instruction and operating training service by our engineer if need.

6. Engineers available to service machinery overseas.
