• Model NO.：PE-F3015
• Laser Classification：Solid Laser
• Laser Technology：Laser Vapor Cutting
• Control：CNC
• Current：AC
• Laser Type：Fiber Laser
• Usage：Metal
• Product Name：Metal Cutting Machine
• Gross Weight：3000kgs
• Working Area：3000*1500mm, 2500*1300mm, 2000*4000mm
• Power：300W, 500W, 800W, 1000W, 1500W, 2000W
• Voltage：220V,380V,460V
• Leading Time：30 Working Days
• Transport Package：Wooden Case with Exporting Standard
• Specification：ISO 9001 & CE
• Trademark：Perfect Laser
• Origin：China
• HS Code：8456110090
• Production Capacity：1000 Sets, Month

Basic Info.

Model NO. PE-F3015 Laser Classification Solid Laser Laser Technology Laser Vapor Cutting Control CNC Current AC Laser Type Fiber Laser Usage Metal Product Name Metal Cutting Machine Gross Weight 3000kgs Working Area 3000*1500mm, 2500*1300mm, 2000*4000mm Power 300W, 500W, 800W, 1000W, 1500W, 2000W Voltage 220V/380V/460V Leading Time 30 Working Days Transport Package Wooden Case with Exporting Standard Specification ISO 9001 & CE Trademark Perfect Laser Origin China HS Code 8456110090 Production Capacity 1000 Sets/ Month

Product Description

Perfect Laser-500w 1kw 2kw 1000w 2000w 3000w 3015 1325 IPG/Raycus/MAX CNC Metal Sheet/Stainless Steel/Iron/Aluminum/Copper/Brass/SS/MS Plate Fiber Laser Cutters Cutting Machines Price
(Model:PE-F3015)

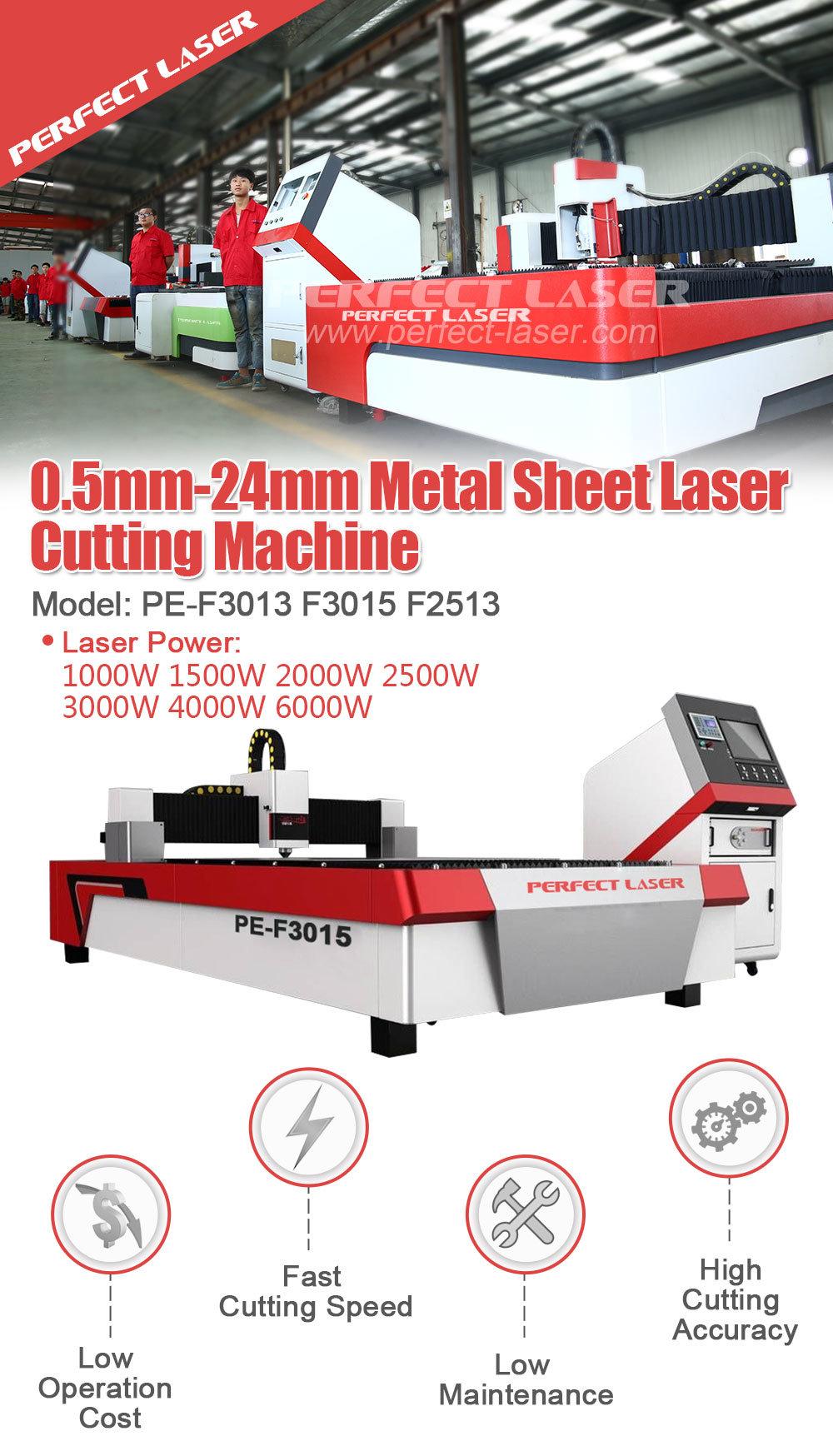

Fiber Laser Cutting Machine Brief Introduction
Perfect Laser, professional Metal Cutting Machine manufacturers, with advanced metal laser cutting machine equipment, first-class technology, quality service, get good reputation in fiber laser cutting machine equipment industry.
In order to meet the needs of customers for cutting metal pipe and sheet, Perfect Laser launched the Metal Cutting Machine (Model:PE-F3015). This cutting machine is adopted the Taiwan famous screw guide, Panasonic servo and drive, the cutting machine can improve the working efficiency greatly. And the pipe diameter of cutting machine can up to 200mm (can be customized according to customer needs ). Moreover, the cutting machine unique design with rotary auxiliaries can solve the technical problems for cutting pipe and sheet.

Metal Fiber Laser Cutting Machine Advantages
* High cutting speed: 2-3 times faster than YAG or Co2 laser
* Long lifetime span: laser source lifetime over 10 years with stable performance.
* High cutting accuracy: Finest laser beam up to 0.01mm
* Low maintenance: Almost totally free of Maintenance
* Most advance cutting machine on the world

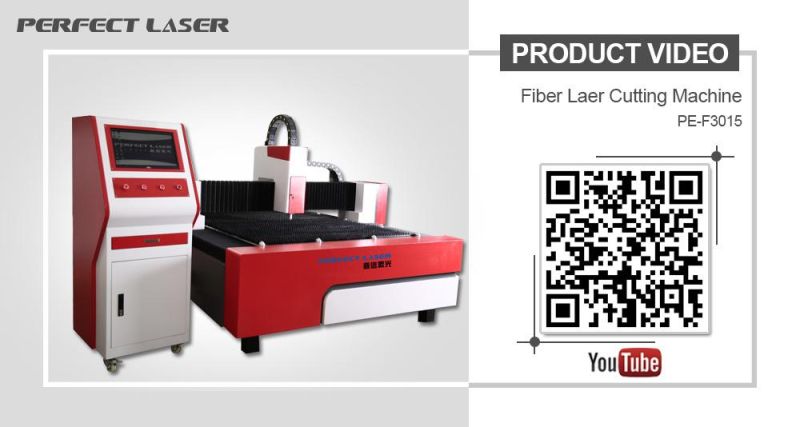

 Metal Fiber Laser Cutting Machine Videos



Company introduction video: https://youtu.be/YGNUtIib-pw
Fiber laser cutting metal plate: https://youtu.be/fpGB1KWOF4o
Fiber laser cutting pipe tube: https://youtu.be/sGoaUh_g6SM

 Fiber Laser Cutting Machine Application areasThis optic fiber laser cutting machine can effectively cut pipe, square tube, rectangular tube, oval tube, parallel oval tube, D-tube and other styles of pipe.
The Optic Fiber Laser Cutting Machine Main Processing Materials
stainless steel, carbon steel, manganese steel, galvanized sheet, all kinds of alloy plate and rare metals.
The Optic Fiber Laser Cutting Machine Main Application Industry
sheet metal industry, kitchenware industry, elevator mobile phone industry, advertising industry, chassis cabinet industry, machinery parts processing industry, precision machining industry, automobile manufacturing industry, daily light industry, agricultural machineryand food machinery industry, hardware bathroom industry, Medical fitness equipment industry.
Fiber Laser Cutting Machine Technical Data

Name	Fiber Laser Cutting Machine
Model	PE-F3015 500W (800W1000W2000W)
Maximum run speed	90m/min
Laser Wavelength	1080 m
Minimum cutting line width	0.1mm
Rated output power	50--2000W
X, Y-axis positioningaccuracy	≤±0.01mm
Repeated positioning accuracy of the table	≤±0.01mm
The maximum load of the workbench	800KG
Effective processing format	1500*3000mm
Z-axis travel	120mm
Volume	4.6*2.3*1.8m
Power	12KW
Water cooler	2KW
Electricity power	380v 50Hz±10%
Red light spot position	yes
Auxiliary gas	Oxygen, nitrogen

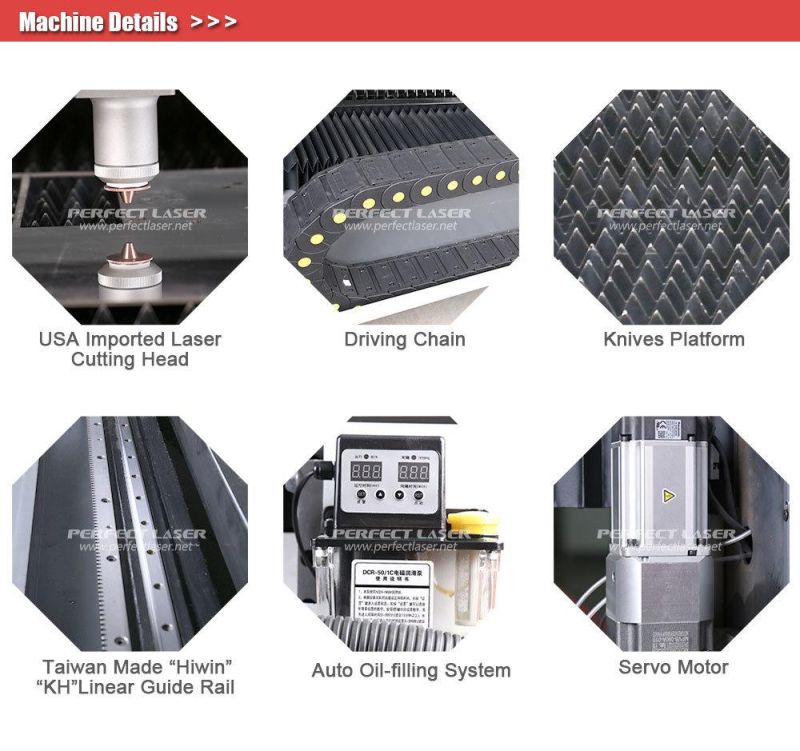

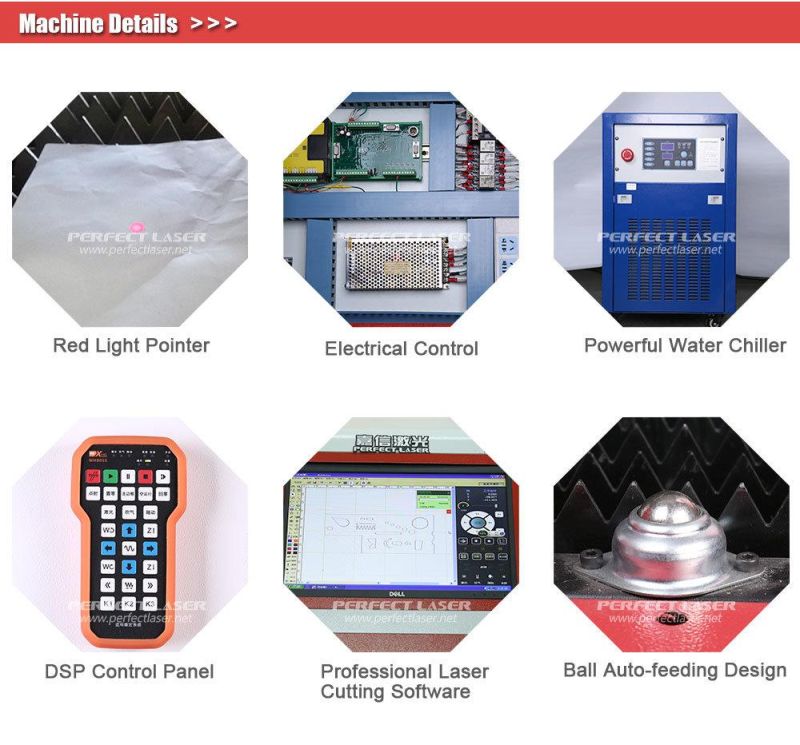

Fiber Laser Cutting Machine Details    1.The fiber laser cutting mchine's controller with a touch screen operating system:
Fiber laser controller installed on the computer.
Ytterbium laser cutting system, automatic optimized cutting path calculation, industrial computer installed software;
Touch screen operation system to control the laser head (adjust the distance between the laser head and metal material); wireless control handle can control the laser cutting head movement trajectory.
    2.The fiber laser cutting mchine is adopts Lasermach(USA) and PRECITEC(Germany ) automatic focus laser cutting head (metal sensor) :Laser cutting head nozzle contact metal plate surface, cutting head automatically move up and down, high sensitivity, good stability. No obvious spark phenomenon.
    3.The metal laser cutter with 3HP high-power water chillers: adopts water cooling method to keep the laser head always work in constant temperature(plus or minus 5 degrees), to ensure the the stability and fast operation of the laser.
    4.The fiber laser cutting mchine with Raycus 1000W (IPG1000W) fiber laser generator:photoelectric conversion rate is high, high beam quality, work life of more than 100,000 hours, no maintenance costs.
    5.Universal ball screw and jagged shaped working platform, loading metal material fast and keeping stable feeding work. jagged platform fixing strip can fix material to reduce the spark splash when cutting.
    6.The fiber laser cutting machine is adopted Japan's Panasonic servo motor and drive: improve the cutting speed and stability. Positioning accuracy: ≤ ± 0.05mm; maximum moving speed 90m / min, maximum effective cutting area 1500 * 3000mm. The servo system has excellent dynamic response acceleration characteristics for smooth operation, reliable, no maintenance.
    7.Self-service refueling, alarm system, smoke device: Laser cutting machine tracks can automatically be refueled, always ensure track lubrication. laser cutting machine alarm system to remind the situation of the role of the machine. Smoke device can extract the smoke in the cutting process, to protect the working environment.
8.Rotary aids: the unique design with rotary auxiliaries can solve the technical problems for cutting pipe.









After-Sale Service
1). Guarantee for the whole machine: 36 months
2). Providing professional service to customers, any call for technical help will be solved in 24 hours
3). Free training, free maintenance and free technical support within warranty period
4). We supply life-long free service in technical upgrading.

Q: What's the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.

Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation. We have exported to 180 countries worldwide. So please don't worry, you will receive the parcel in good condition.

Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.

Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Please advise us the following information, then we can recommend you the most suitable model, right now, don't hesitate to contact -China Perfect Laser!

1. The exact material you want to cut? (Stainless steel, carbon steel, mild steel, etc.)
2. The cutting depth on above materials?(max thickness, 3 mm, 5 mm, 7 mm, 15 mm....)
3. The working area you demand? (max dimension of material,width*length,  1500*3000 mm,...)Need more information please feel free to contact us-Perfect Laser!---Right Now!!

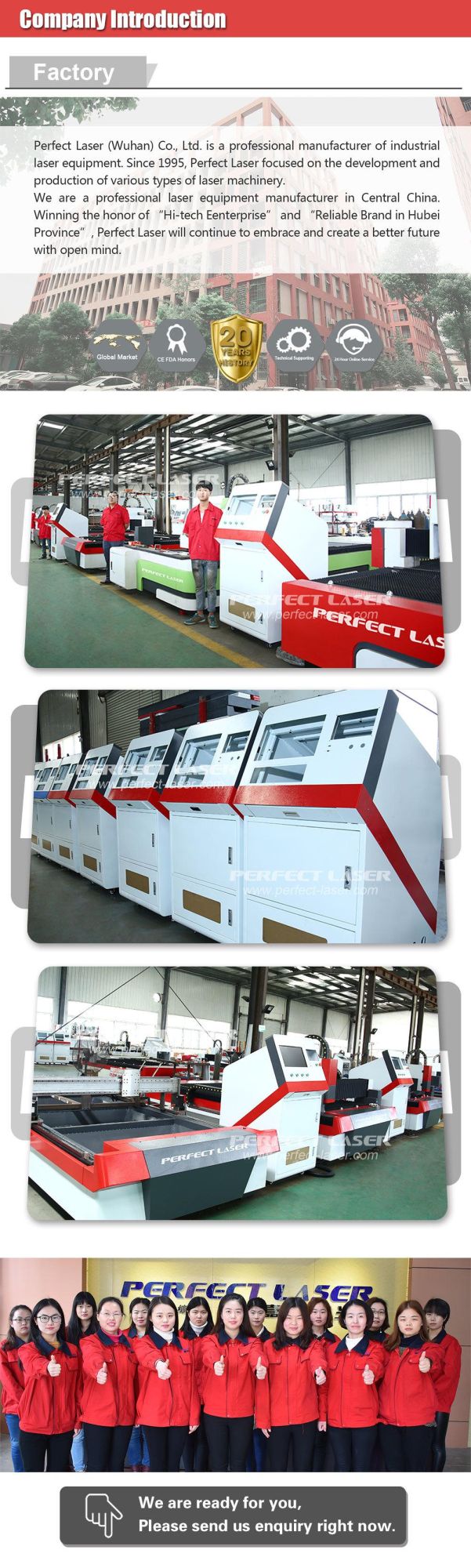

 Company information
