• Model NO.：SPARK 3015P
• Cooling System：Water Cooling
• Technical Class：Continuous Wave Laser
• Applicable Material：Metal
• Structure Type：Gantry Type
• Laser Classification：Solid Laser
• Laser Technology：Laser Flame Cutting
• Laser Source：Max,Raycus,Ipg,N-Light
• Laser Head：Raytools,Ospri,Precitec
• Control System：Cypcut
• Laser Power：2kw-20kw
• Servo Motor：FUJI,Yaskawa
• Reducer：Motor Reducer
• Rack&Gear：Yyc
• Guide：Hiwin
• Pneumatic Components：SMC
• Electric Parts：Snd
• Transport Package：Wooden Packing
• Specification：20GP
• Trademark：Remcor
• Origin：China
• HS Code：845611
• Production Capacity：3000 Sets,Year
• Package size per unit product：650.00cm * 225.00cm * 200.00cm
• Gross weight per unit product：6000.000kg

Basic Info.

Model NO. SPARK 3015P Cooling System Water Cooling Technical Class Continuous Wave Laser Applicable Material Metal Structure Type Gantry Type Laser Classification Solid Laser Laser Technology Laser Flame Cutting Laser Source Max/Raycus/Ipg/N-Light Laser Head Raytools/Ospri/Precitec Control System Cypcut Laser Power 2kw-20kw Servo Motor FUJI/Yaskawa Reducer Motor Reducer Rack&Gear Yyc Guide Hiwin Pneumatic Components SMC Electric Parts Snd Transport Package Wooden Packing Specification 20GP Trademark Remcor Origin China HS Code 845611 Production Capacity 3000 Sets/Year

Packaging & Delivery

Package size per unit product 650.00cm * 225.00cm * 200.00cm Gross weight per unit product 6000.000kg

Product Description

What makes Remcor Laser OUTSTANDING ?

1.Machine manufacturing: 18 years, over 5000sets experience, strict quality control for the manufacturing process
2.Gantry: Plate welding, 2-3 times stronger than normal ones
3.Key parts: Top brands to make sure the stability
4.Wireless remote control: Easy to handle all the process by one key
 Product show

Customer site real product show

MODEL NO.	SPARK-3015P/4020P/6020P/6025P
Processing area	3050*1520mm  / 4000*2000mm / 6000*2000mm / 6000*2500mm
Fiber power	MAX / Raycus /IPG 1000-6000W
Control system	Cypcut control system
Cooling mode	Water cooling and protection system
X/Y-axis positioning accuracy	±0.03mm
X/Y-axis repositioning accuracy	±0.02mm
Max acceleration	1.2G
Compatible Software	CorelDraw/AutoCAD/Photoshop/AI …
Max traveling speed	120m/min
Support graphic format	.LXD/.DXF/.PLT/.AI/.Gerber/.DWG ….
Transmit system	Dual Rack & Pinion type
Operating temperature	0-45ºC
Operating humidity	5-95%
Delivery date	30 days


Main Parts

NO.	Item	Brand	Noted
1	Working body	REMCOR LASER	Plate Welding body
2	IPC computer (Win 7 )	REMCOR LASER	China
3	Water chiller	Domestic	China
4	Automatic height adjuster	Raytools auto	Switzerland (made in China)
5	Control system	Cypcut	China
6	Reducer	Motor Reducer	France
7	Laser source	MAX/Raycus/IPG	Optional
8	Laser head	Raytools	Switzerland (made in China)
9	Rack, gear	YYC	Taiwan
10	Guide	HIWIN	Taiwan
11	X,Y,Z axis servo motor	FUJI	Japan
12	Electrical components	SND	France
13	Pneumatic Components	SMC	Japan
14	Pipe attachment	Pneumatic chuck	Domestic
14	Exhaust fan	REMCOR LASER	China
15	Independent control cabinet	REMCOR LASER	China

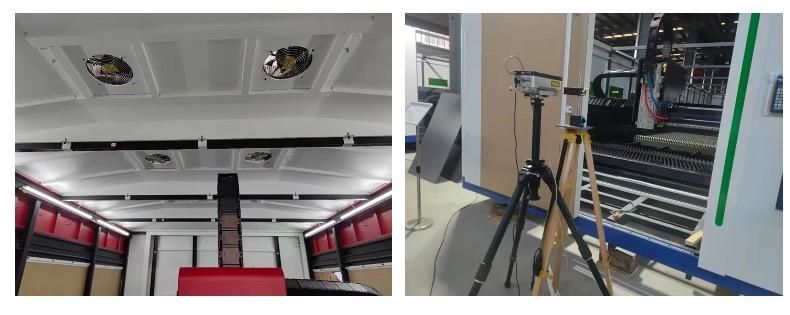

Accuracy Assurance System Details



Samples
